Description

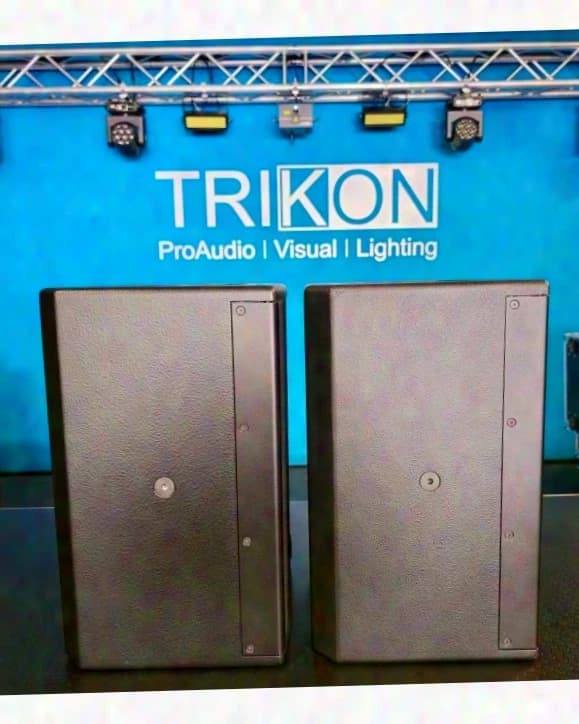

**ESD6** - 6" low-frequency driver paired with a 1" HF compression driver - Frequency response (-3 dB): 68 Hz – 20 kHz - Maximum SPL: 117 dB, with 120 dB peak - Coverage angle: 100° × 100° - Recommended amplifier power: 175 W - Sensitivity: 92 dB - Nominal impedance: 16 Ω - Dimensions (H × W × D): 390 × 220 × 240 mm - Weight: 9.5 kg **ESD1.10** - 10" neodymium low-frequency driver - Frequency response (-3 dB): 40–150 Hz - Maximum SPL: 121 dB, reaching 127 dB peak - Recommended amplifier power: 500 W - Sensitivity: 94 dB - Nominal impedance: 8 Ω - Crossover frequency: 80–150 Hz - Dimensions (H × W × D): 335 × 530 × 500 mm - Weight: 21.3 kg **ESP1000** - Four-channel power amplifier - Output power: 4 × 250 W at 4 Ω, 1000 W total - Bridged output: 2 × 500 W at 8 Ω - Minimum load: 4 Ω per channel - Inputs: 4 balanced XLR connectors, plus XLR Through - Speaker outputs: Neutrik Speakon® - Integrated DSP with presets, EQ and RMS limiter; 6 selectable configurations - Dimensions (H × W × D): 88 × 483 × 496 mm, 2U - Weight: 17.8 kg

Specifications
