Description

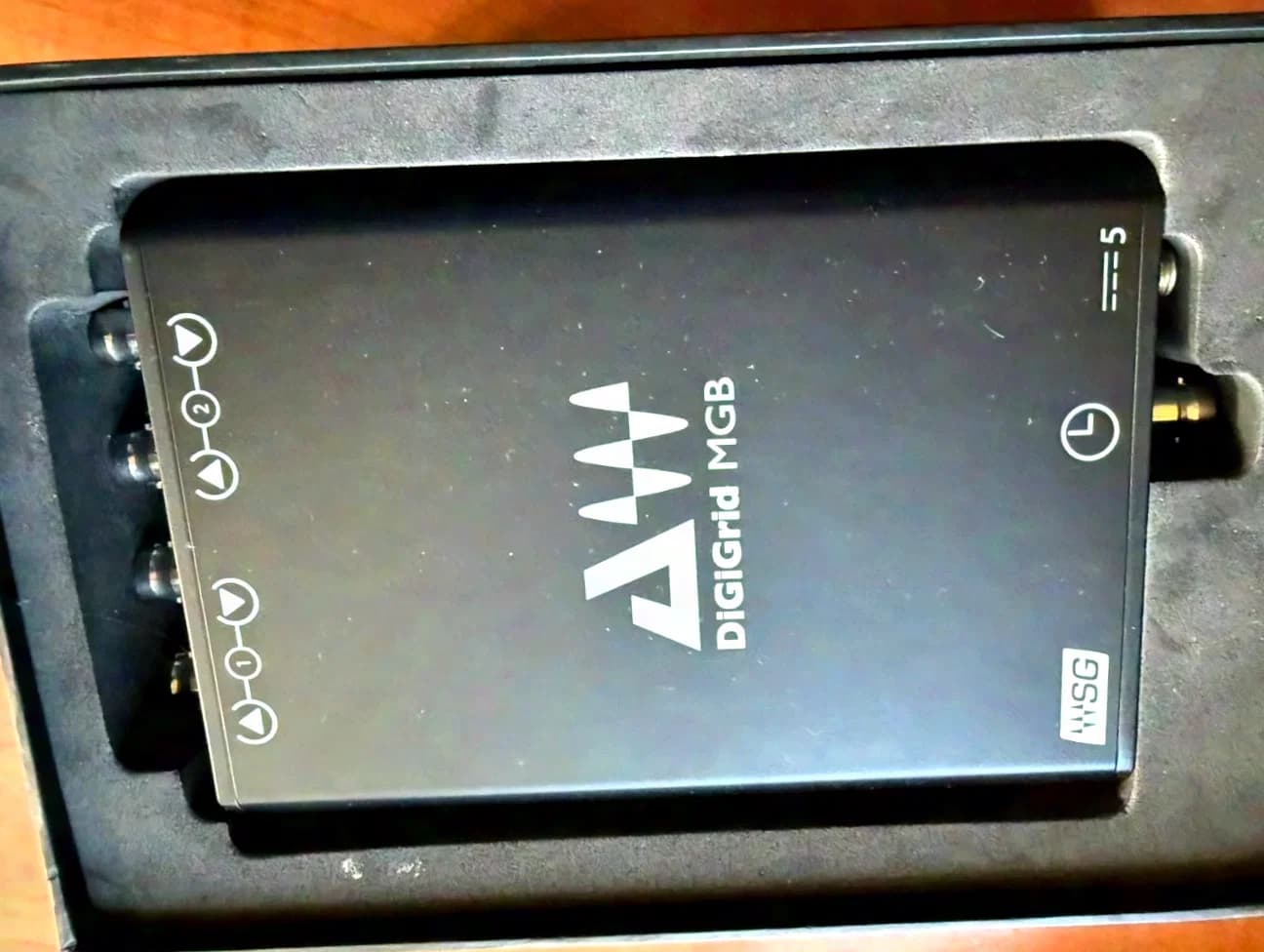

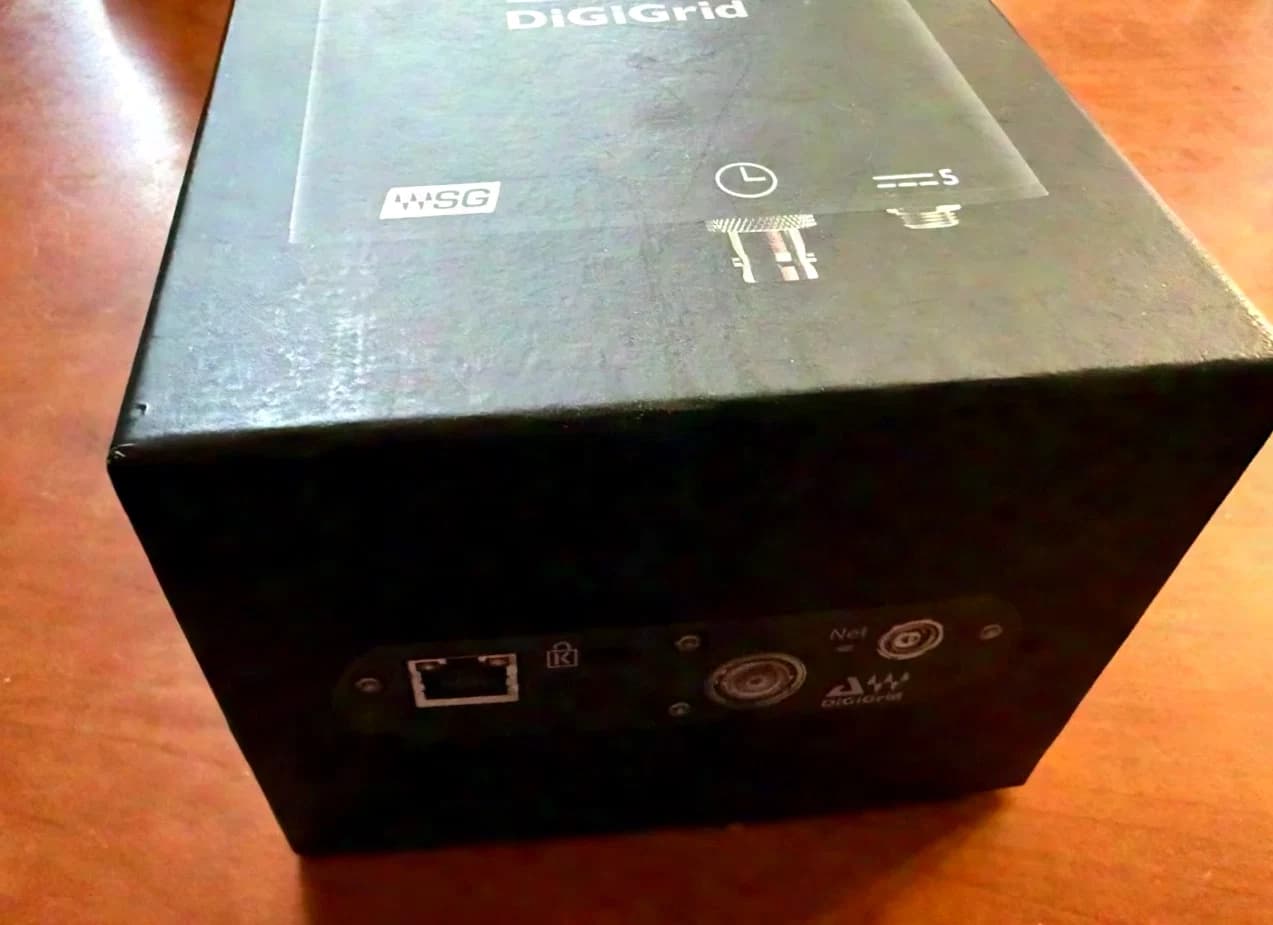

Connects devices featuring coaxial MADI to the Waves SoundGrid network. MADI coaxial I/O via BNC connectors Supported sample rates: 44.1, 48, 88.2 and 96 kHz 112/128-channel I/O at 48 kHz 56/64-channel I/O at 96 kHz Supports 64-channel and 56-channel modes At 96 kHz, supports double-wire operation with a 48 kHz frame rate and single-wire operation with a 96 kHz frame rate Clock synchronization sources, in fallback order: Word Clock input, MADI port A, SoundGrid SoE and internal clock One SoundGrid port with RJ45 connector Reset switch

Specifications
