Description

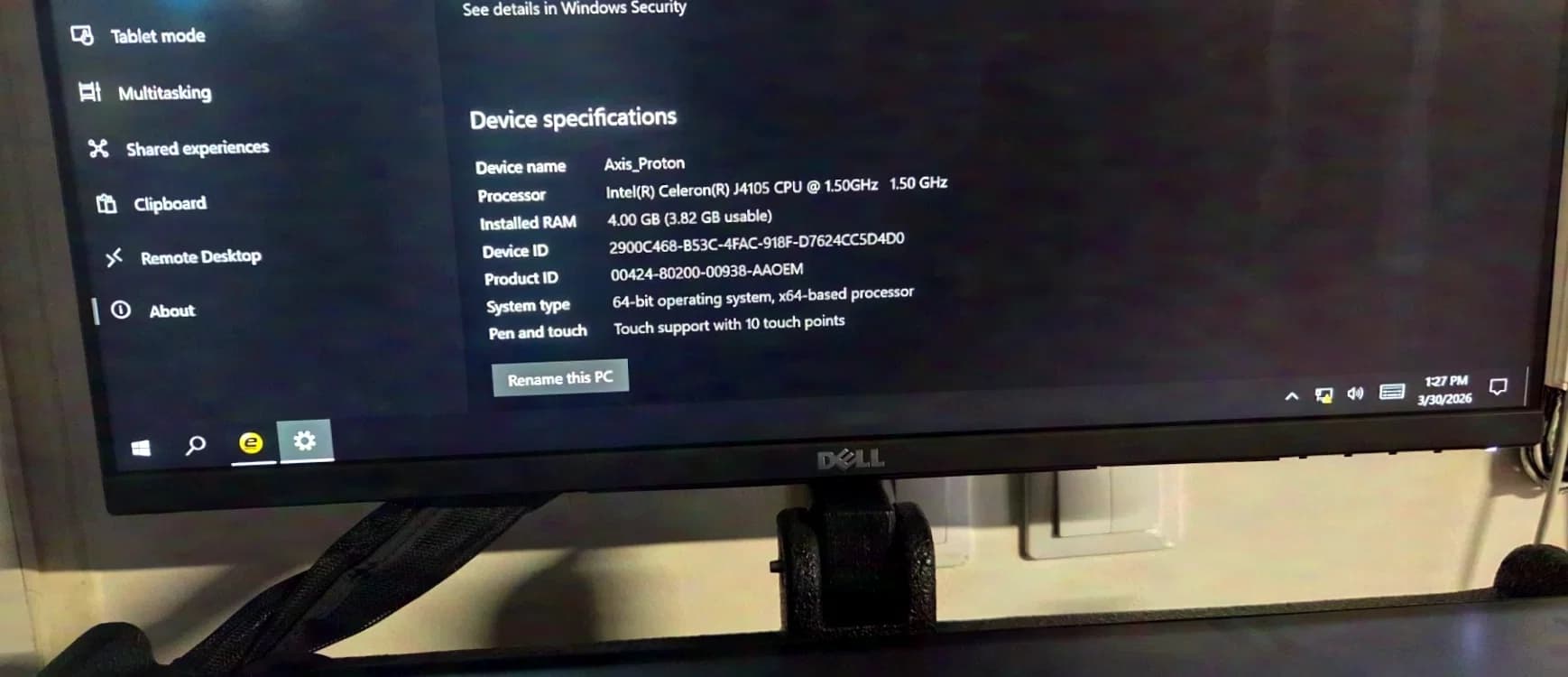

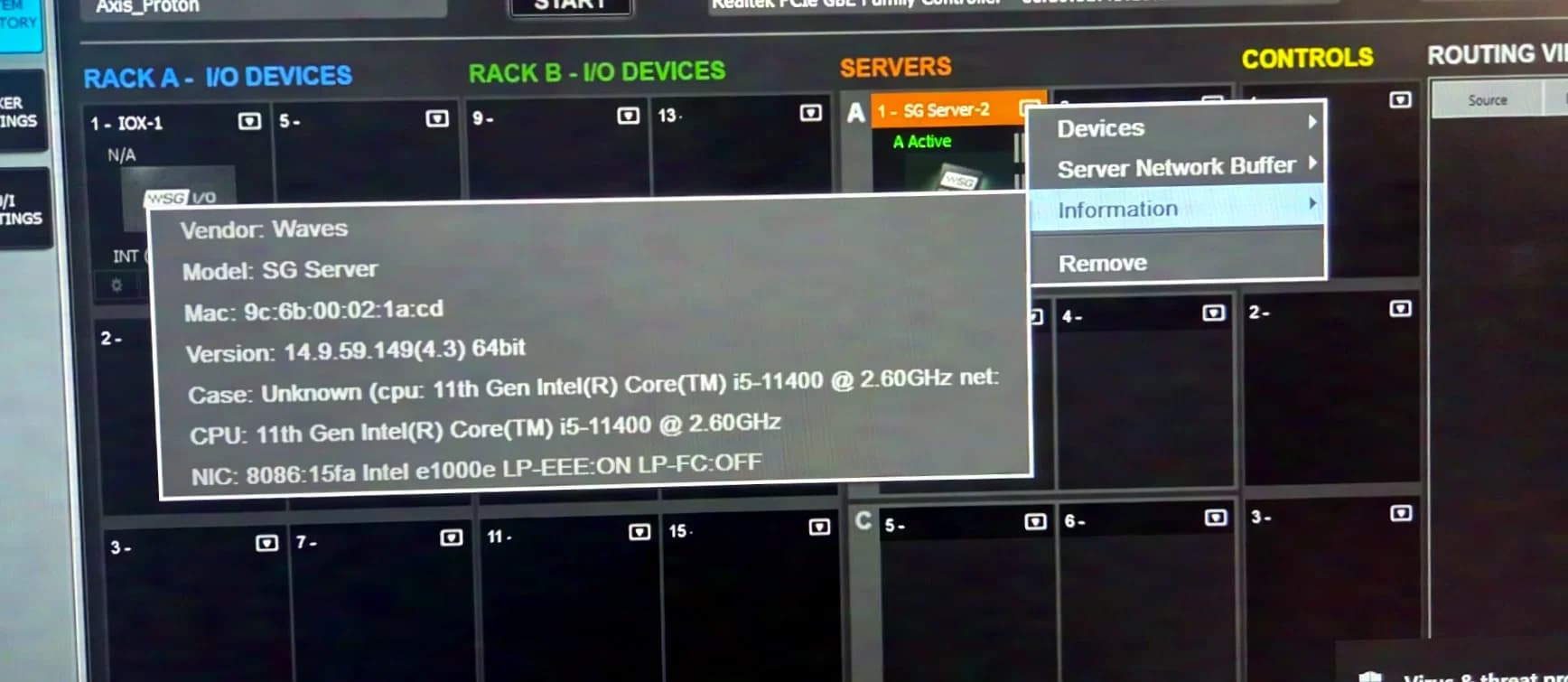

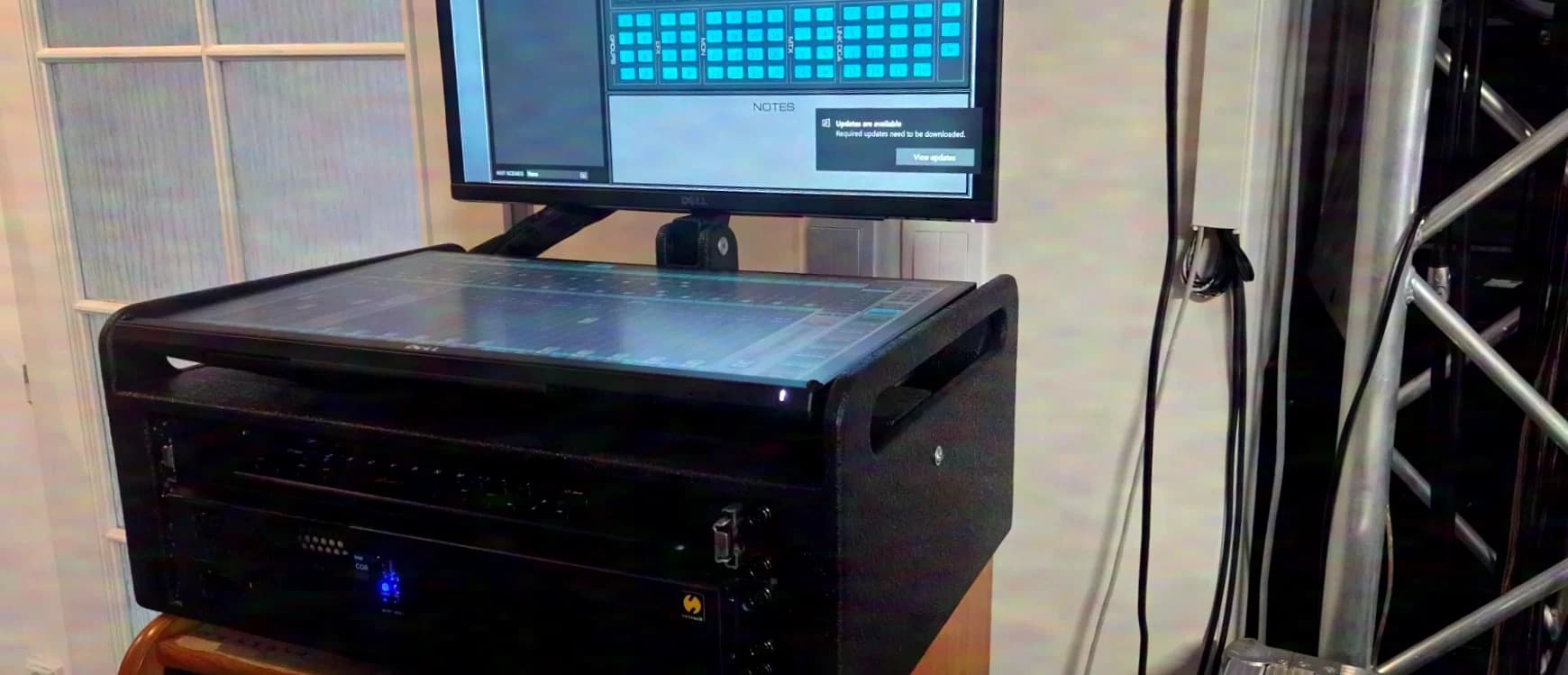

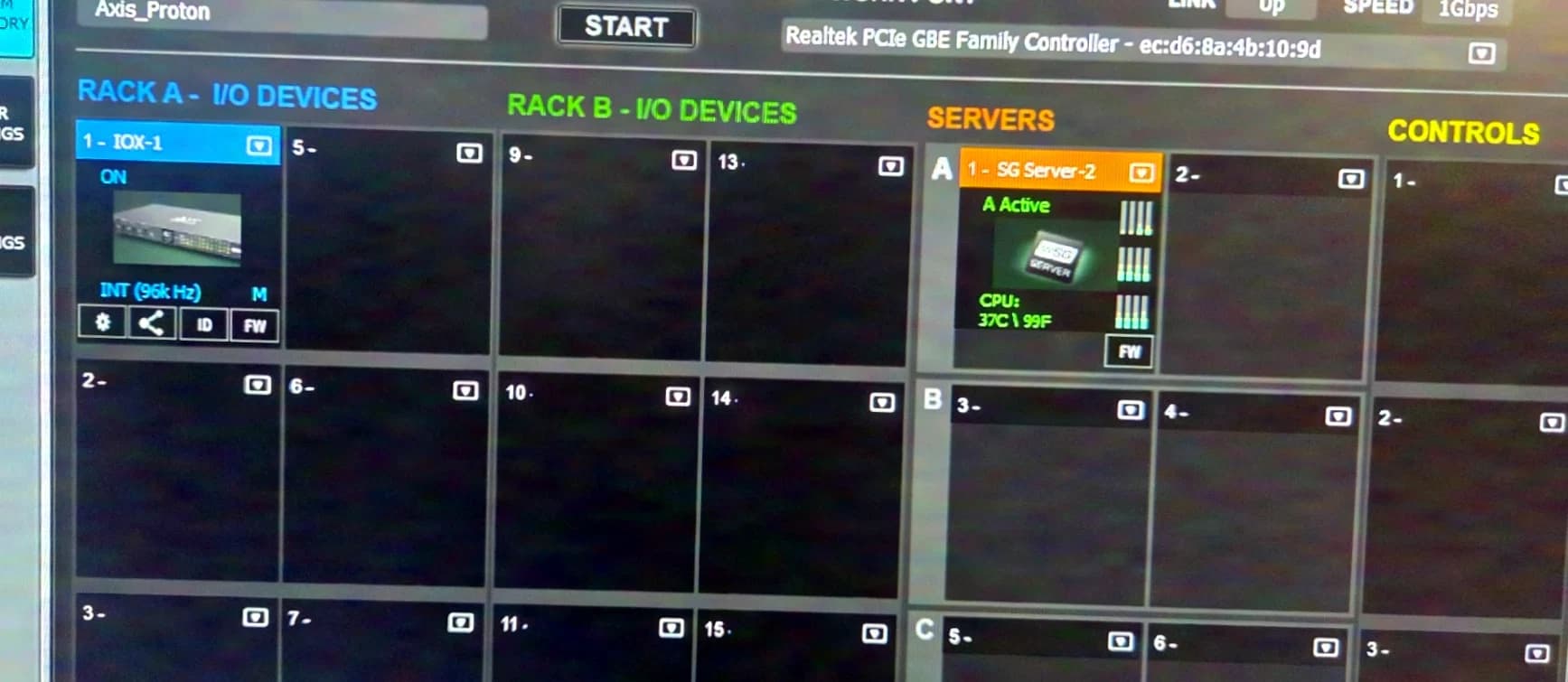

Clone system based on a 32-channel LV1 configuration. It is equipped with two large 24-inch touchscreens, while the server and client computers are integrated into a custom-built enclosure. The housing includes a dedicated monitor mount and a shelf for a keyboard with touchpad. An internal SoundGrid switch is installed, with etherCON connectors located on the rear panel. Mains power is connected through a single powerCON socket. The system includes 3x IOX interfaces. Each interface provides 12 mic/line inputs with broadcast- and studio-quality preamps, 6 line outputs, and 4 high-performance headphone outputs for creating separate mixes for individual musicians. When connected to a SoundGrid server, the interfaces support the use of hundreds of compatible plugins with ultra-low latency of 0.8 ms, while allowing integration with the selected DAW. Server CPU: Intel i5-11400 Client CPU: Intel Celeron J4105

Specifications
