Description

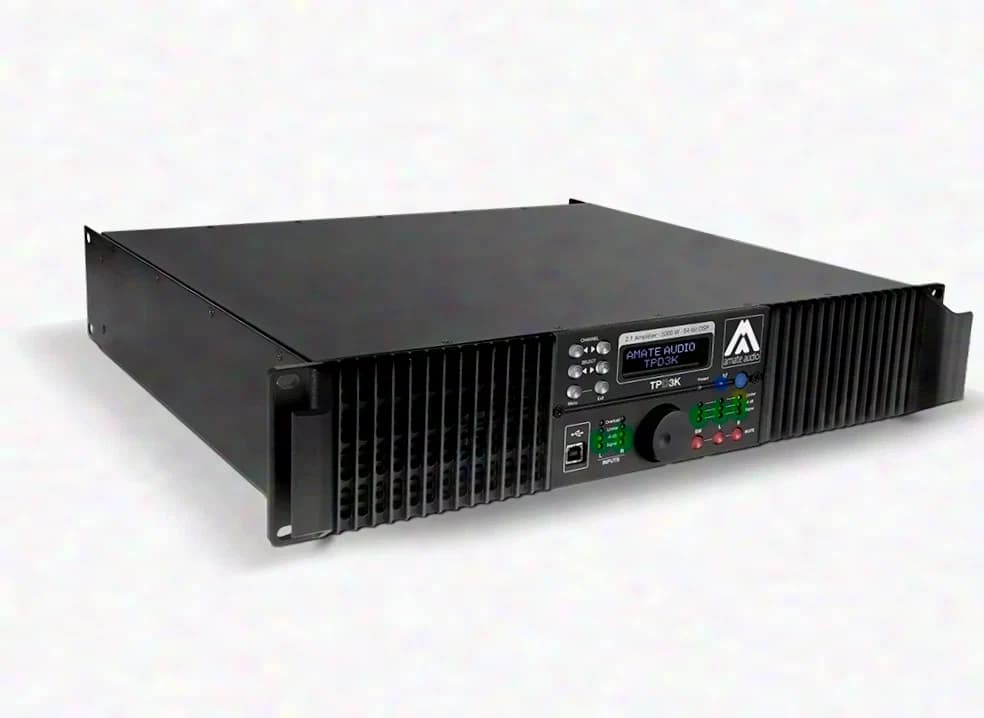

B-stock with 24-month warranty. The stated price is net plus VAT; an invoice will be issued. Further information: https://www.mm-audiotechnik.de/3-Kanal-Verstaerker-TPD3K-Amate-Audio/AATPD3K The legendary digital all-in-one amplifier has been extensively further developed. The new TPD3K combines the experience from the original TP series from 1986 with an integrated DSP, efficient Class-D power amplifier technology and an optimised analogue circuit. With a total output of 3000 W, the compact multifunctional unit offers sufficient reserves to operate even larger and more powerful loudspeakers. More power is available for both the subwoofer and the two stereo channels. At the same time, the unit impresses with a practical weight and is particularly suitable for driving the top loudspeakers of the Nítid series. For a coordinated combination of power, protection and sound fidelity, presets for the N218WP subwoofer and the N15P/N15PR loudspeakers are integrated ex works. Technical data: Sensitivity: 1.5 V Input impedance: >10 kΩ Output power: L & R 400 + 400 W at 8 Ω / 750 + 750 W at 4 Ω, subwoofer 1500 W at 8 Ω / 2000 W at 4 Ω Average current consumption: 5 A at 230 VAC Frequency response (adjustable DSP): L & R 70 Hz – 20 kHz (-3 dB), subwoofer 30 Hz – 200 Hz (-3 dB) Damping factor (1 kHz at 8 Ω): L & R > 1200, subwoofer > 600 Crosstalk: 65 dB THD: < 0.05 % S/N ratio (A-weighted): 104 dB Mains: 85~240 V AC – 50/60 Hz Dimensions (HxWxD): 88 x 482 x 370 mm (2U 19“ rack) Weight: 8.5 kg

Specifications
