Description

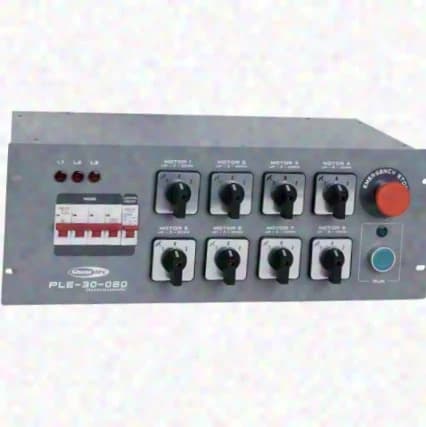

8-channel controller for directly controlled motor chain hoists The control unit enables the operation of common directly controlled chain hoists, for example CM Lodestar. All eight connected hoists can be switched on and off separately and moved upwards or downwards individually. For the connections, four 4-pole CEE sockets and two 16-pole multipin interfaces for connection to a breakout box are available on the rear panel. An emergency stop switch provides additional safety during operation. Specifications Power supply: 400 V/50 Hz Dimensions: 19", 4 HE Power connection: CEE, 5-pole, 32 A Output connection: CEE, 4-pole, 16 A Connection: 16-pole multipin Safety function: Emergency stop switch Webshop: www.mpk-showtechnik.de
