Description

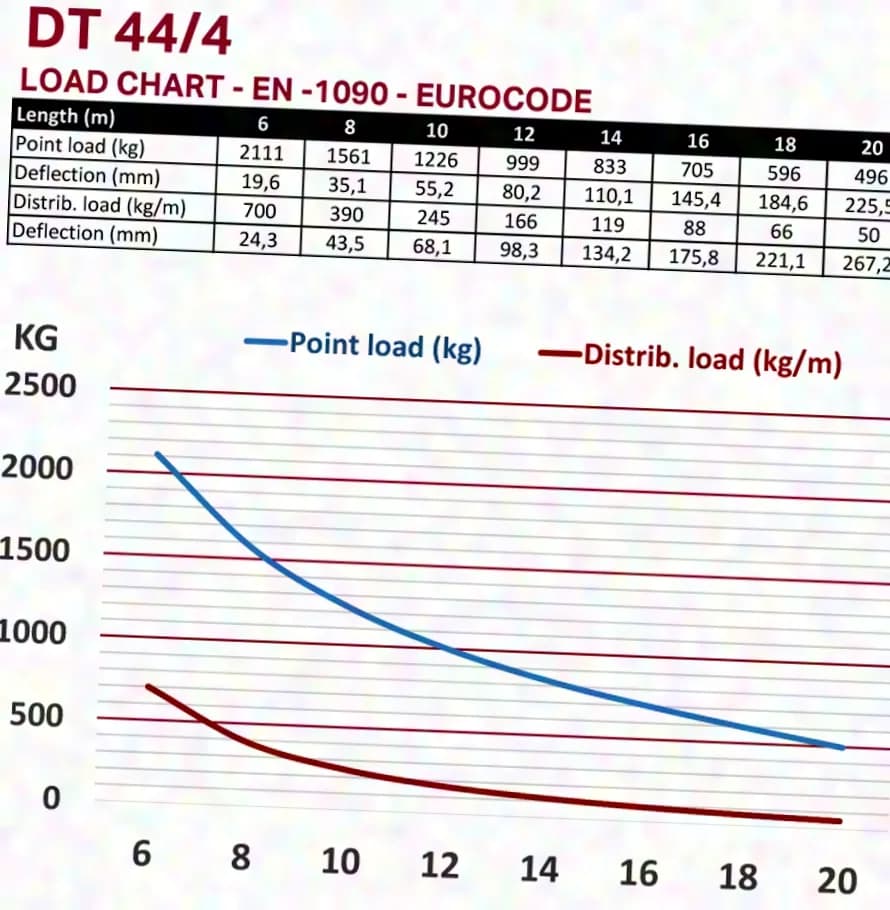

Heavy-duty aluminium truss with 4 mm wall thickness – designed for large loads and spans. Delivery time: approx. 3–4 weeks. On request, additional trusses from the manufacturer are also available at attractive prices. Structural calculations can additionally be prepared for your project; powder coating in any desired colour is also possible. 4-point truss with a length of 200 cm The 4-point truss system is assembled using four conical connectors, bolts and safety clips. The quick-connector system locks positively with the chord tubes, thereby enabling rapid assembly and dismantling – ideal for frequently changing applications. The four chord tubes consist of aluminium tubes with a diameter of 50 mm and a wall thickness of 4 mm. This gives the truss a balanced ratio between its own weight and load-bearing capacity. The braces have a diameter of 25 mm with a wall thickness of 3 mm. The system can optionally be expanded flexibly. Among other things, corners, T-junctions, angles and circles are available for this purpose. In addition, an extensive range of accessories with hooks, connectors, base plates, wall mounts, spacers and other components is available. The construction, manufactured in Europe, is TÜV-certified. Advantages of the truss system: • Robust aluminium tubes with a diameter of 50 mm • Fast and uncomplicated assembly • Low own weight • Space-saving transport • Suitable for trade fair construction and event technology Specifications: • Diameter of the chord tubes: 50 mm • Wall thickness of the chord tubes: 4 mm • Diameter of the braces: 25 mm • Wall thickness of the braces: 3 mm • Alloy: EN-AW 6082 T6 (AlMgSi1) • Design according to DIN 4112 and DIN 4113-1 • Connection: conical connectors with bolts and safety clips Dimensions and weight: • Length: 2000 mm without connectors • Width: 400 mm • Height: 400 mm • Weight: 20,6 kg Scope of delivery including connector set: • 4 conical connectors • 8 bolts • 8 safety clips
