Description

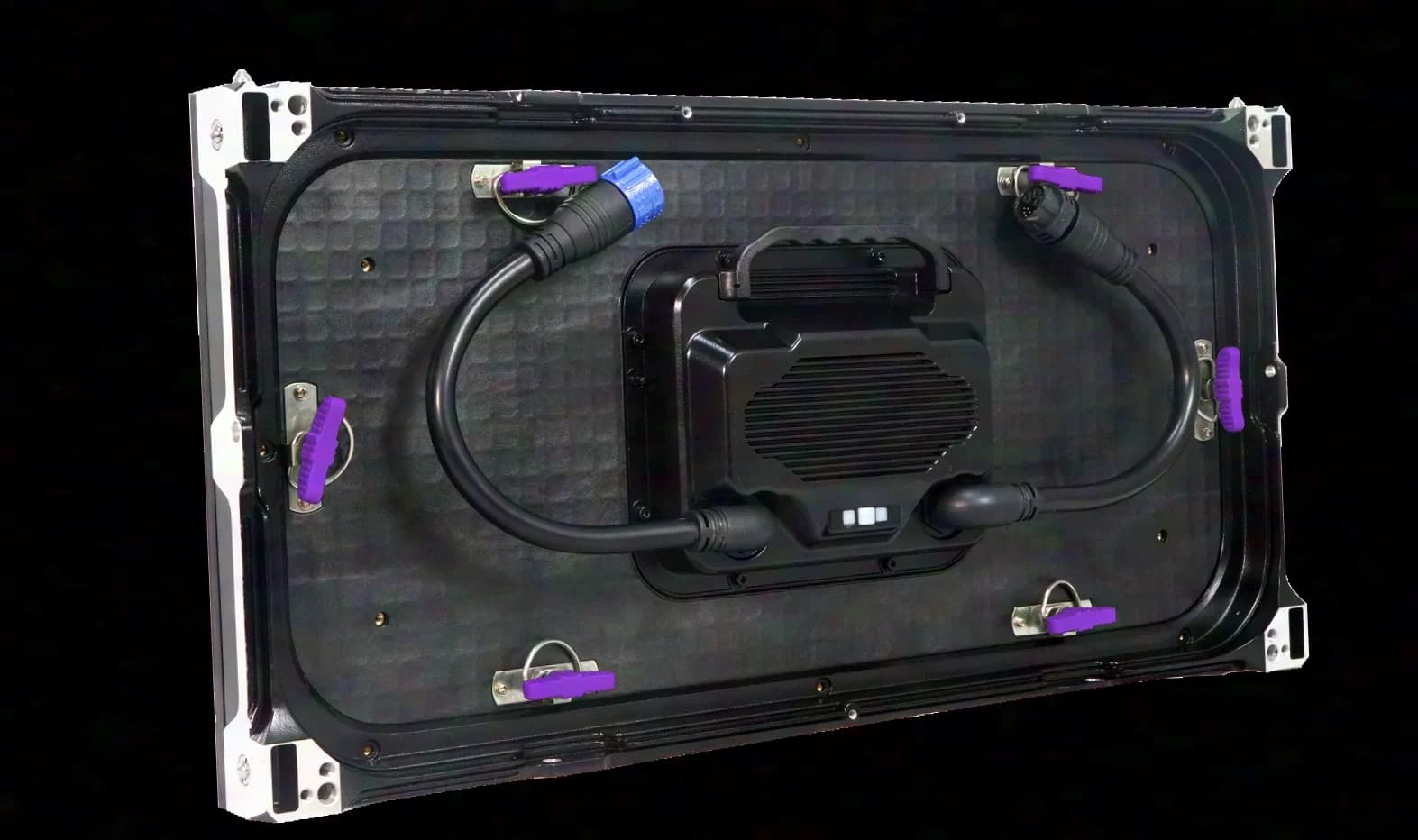

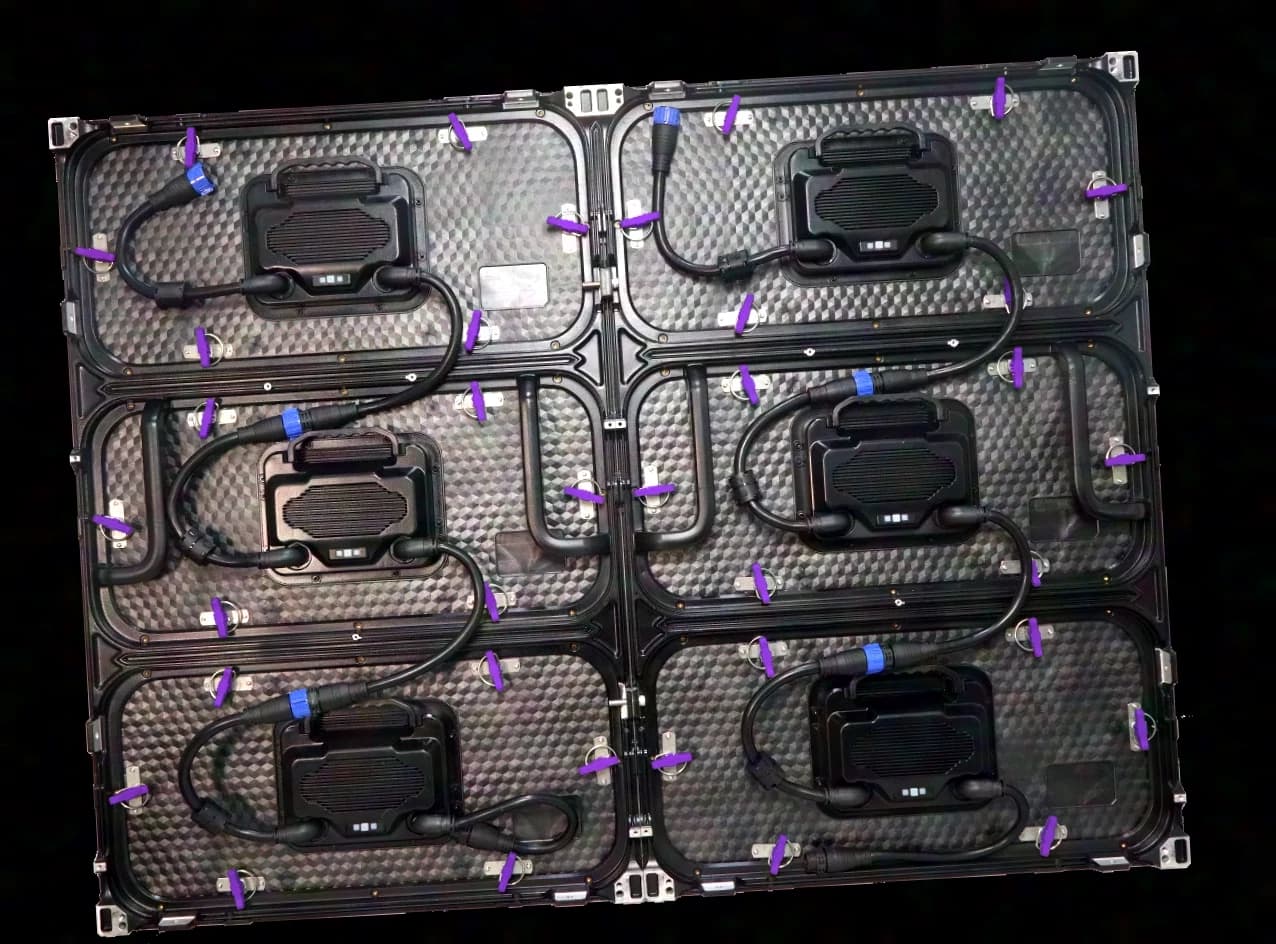

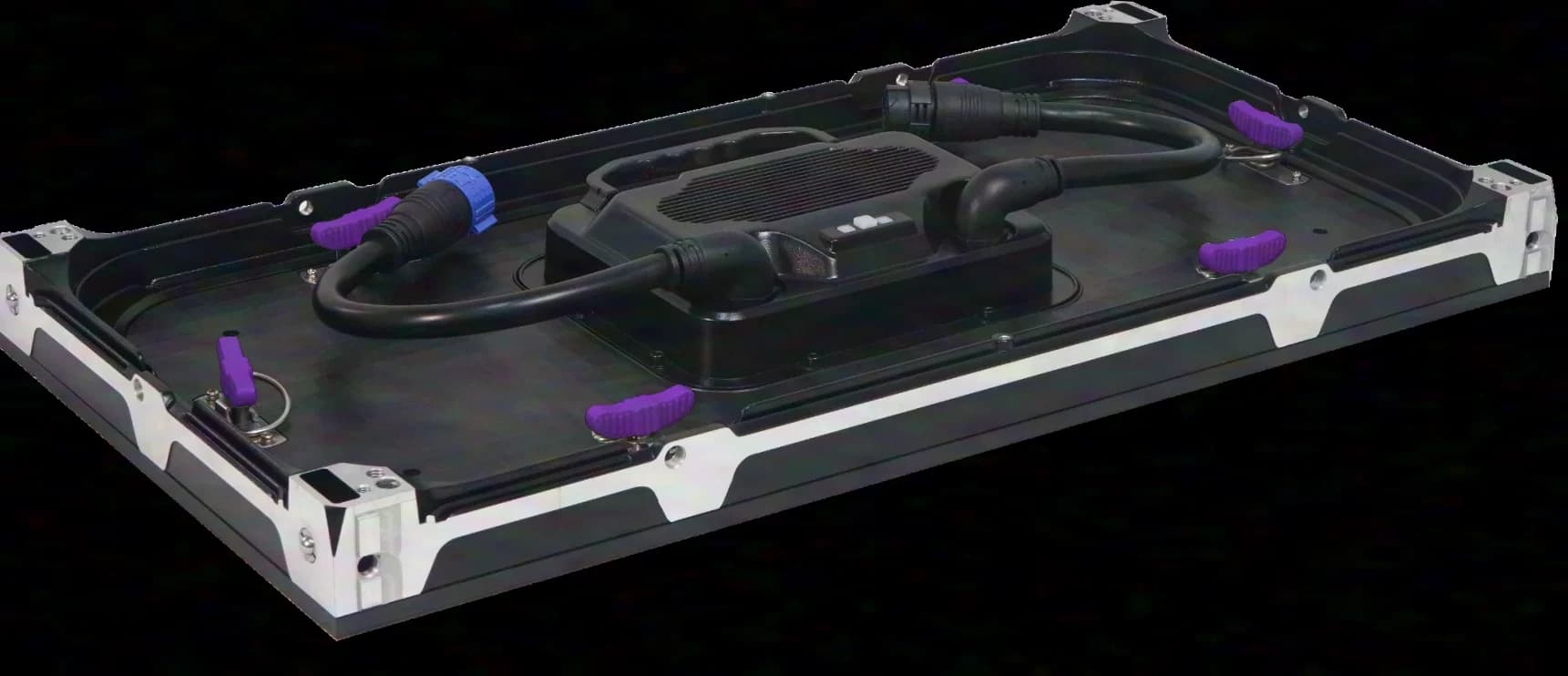

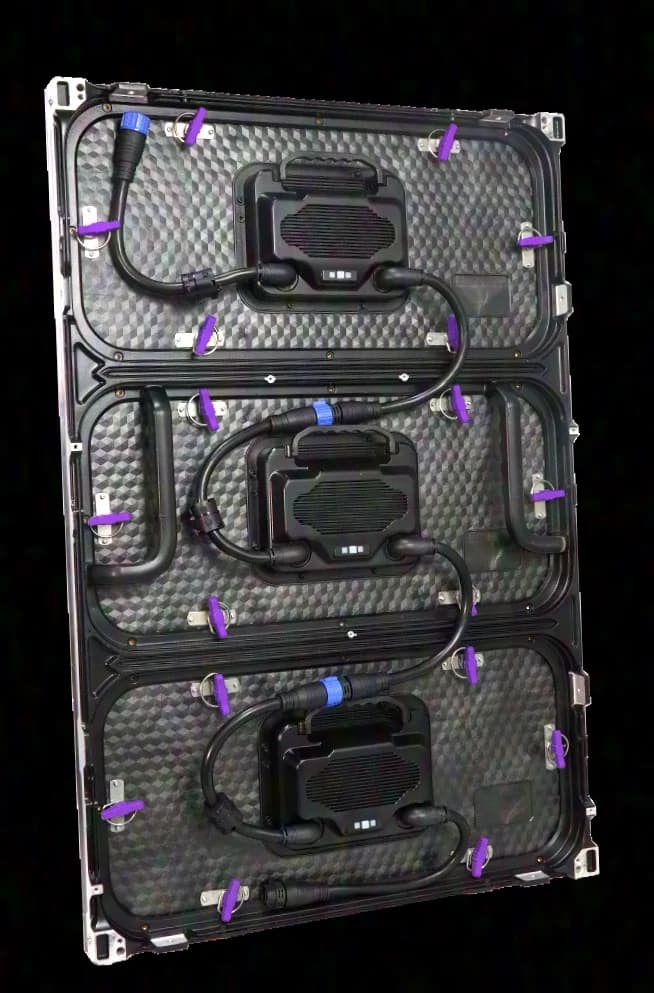

This LED system was designed for permanent outdoor installations, with uncomplicated assembly and maintenance-friendly operation. The LED modules are mounted in a robust cast-aluminium frame and can be individually replaced from the front without having to dismantle the entire video wall. The system was developed in Germany and TÜV-tested. Module specifications P5: Pixel pitch: 5.00 mm LED technology: SMD 1921 Pixel configuration: SMD 3-in-1 (NationStar) Resolution: 200 × 200 pixels/m² Number of pixels: 40,000 pixels/m² Brightness: 5,000 Nits Colour display: 16.7 million colours Contrast: 3,000:1 Refresh rate: 1,920 Hz (MBI 5124 IC) Viewing angle: horizontal 140°, vertical 120° Recommended viewing distance: 7.5 m Weight: module without frame 3.5 kg; with 1-module frame 5.4 kg; with 3-module frame 15.6 kg Protection rating: front IP65, rear IP54 Power supply: 100–240 V AC Network connection: Cat 5e Certifications: EMV, NSpRL, RoHS/CE P6+: Pixel pitch: 6.67 mm LED technology: SMD 2727 Pixel configuration: SMD 3-in-1 (NationStar) Resolution: 150 × 150 pixels/m² Number of pixels: 22,500 pixels/m² Brightness: 5,500 Nits Colour display: 16.7 million colours Contrast: 3,000:1 Refresh rate: 1,920 Hz (MBI 5124 IC) Viewing angle: horizontal 140°, vertical 120° Recommended viewing distance: 7.5 m Weight: module without frame 3.5 kg; with 1-module frame 5.4 kg; with 3-module frame 15.6 kg Protection rating: front IP65, rear IP54 Power supply: 100–240 V AC Network connection: Cat 5e Certifications: EMV, NSpRL, RoHS/CE Advantages Tested quality: The system meets the requirements of EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. This places safety, reliable operation and consistent quality at the forefront. The modules come with a 3-year warranty and expert support. The solution is particularly suitable for digital out-of-home advertising (DOOH). High visibility: Depending on the version, the wall achieves a luminance of up to 5,500 Nits. This means content remains bright and clearly recognisable even in direct sunlight. The IP65 protection rating on the front and IP54 on the rear protects against weather influences such as rain and snow. Service and flexibility: 48-hour replacement service / front installation / 3-year warranty / developed in Germany / structural calculations for numerous sizes included / slim and lightweight design / one cable for all functions / quick assembly / self-assembly possible / content player / virtually unlimited expandability Warranty: All products are covered by a three-year manufacturer's warranty. _______________________ Imprint A registered trademark of JC Eventtechnik GmbH Anna-Vandenhoeck-Ring 5 37081 Göttingen Sales contact: Telephone: +49 551 492 493 44 Email: [email protected] Service contact: Telephone: +49 551 492 493 45 Email: [email protected] Managing Director: Jacek Krawczyk Göttingen HRB 203908 WEEE Reg. No. DE 38755453 Tax number: 20/200/29523 VAT ID No.: DE286441725 Liability for content The contents of this website are created and checked with due care. Nevertheless, no guarantee can be given for their accuracy, completeness or currency. As a service provider, pursuant to §7 para. 1 TMG, responsibility for our own content exists under the general statutory provisions. Pursuant to §§8 to 10 TMG, however, there is no general obligation to monitor transmitted or stored third-party information or to actively search for indications of unlawful activity. Statutory obligations to block or remove unlawful content remain unaffected by this. Liability is generally possible from the time at which a specific infringement becomes known. Corresponding content will be removed without delay once it comes to our knowledge. Liability for links This website may contain links to external websites of third parties. We have no influence over their content and therefore assume no liability for it. The operator or provider is always responsible for the respective websites. At the time the links were created, the target pages were checked for recognisable legal violations, without any such violations being identified. Ongoing checks are only carried out if there are specific indications of a legal violation.
