Description

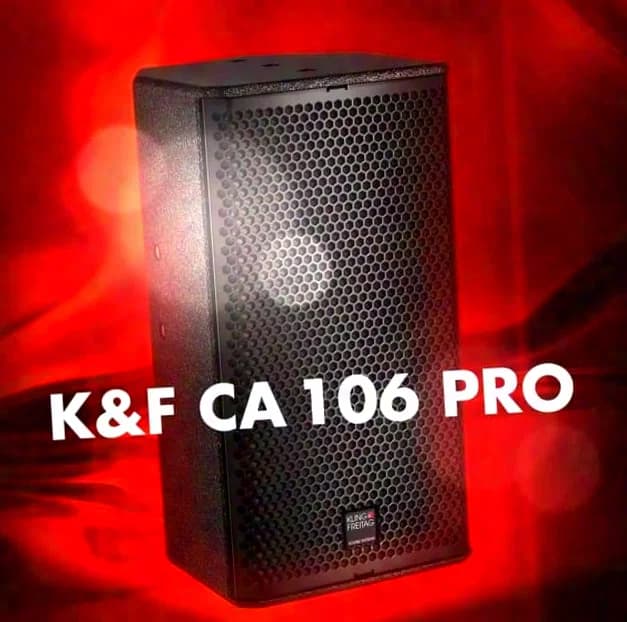

2 compact high-mid boxes in black finish. The speakers are new and are still in their original packaging. They are being sold due to the switch to active speakers with delay (KS Audio CPD 08). The original unit price was €1,255.-. Sold exclusively as a pair. Features: 2-way full-range system with 6.5"/1" drivers Modern “Full Passive Concept” for high audio quality Maximum sound pressure level of 118 dB Separate protection circuits for safe operation Particularly compact design Defined dispersion pattern from 1,300 Hz Nominal impedance: 16 Ohm Technical data: Design principle: passive 2-way system with bass-reflex tuning Colour: Black, RAL 9005 Frequency response at -10 dB: 78 Hz–22 kHz Frequency response at ±3 dB: 88 Hz–20 kHz Nominal dispersion angle: 90° x 60° (horizontal x vertical) Directivity index (DI): 10 (+1.5/-2) from 1.5 kHz–15 kHz Rated power handling: 120 Watt Sensitivity: 92 dB at 1 W/1 m Maximum sound pressure: 125 dB SPL Peak/1 m Drivers: 6.5" low-mid driver and 1" high-frequency driver on rotatable 90° x 60° horn Crossover: 1.8 kHz, 18 dB/oct.; self-resetting protection circuits for the 6.5" and 1" speakers Nominal impedance: 16 Ω Connections: 2 x Speakon NL4MP, 1+/1- Connection of the 100-V version: screw terminals or 2 x Speakon NL4MP Enclosure: multifunctional enclosure with monitor and cluster angles, made of 12 mm birch plywood with high-strength black textured coating; 2 x M6 and 8 x M8 threaded inserts; compatible with extensive mounting accessories Front: ball-impact-resistant protective grille with replaceable black acoustic foam Dimensions (W x H x D): 195 x 365 x 206.5 mm Weight: 7 kg The second generation of a proven compact sound reinforcement system combines the unchanged enclosure and mechanical concept with completely revised technology. Such speakers are used in a wide range of rental and installation applications: on small stages in combination with a subwoofer, as a fill solution at the sides or at the edge of the stage, and as a stage monitor. Inside, both drivers have been renewed and fitted with state-of-the-art neodymium magnets. The crossover has also been newly developed. The revised protection circuit ensures reliable protection, particularly for the high-frequency driver, and automatically resets after an overload has ended. There is also a recessed slide switch on the rear. It can be used to select whether the signal is supplied via pins 1± or 2± of the Speakon connectors. This allows the box to be easily adapted to the pin assignment of a subwoofer when both components are powered via a four-core cable. It is likewise possible to daisy-chain several speakers and define for each one which of the two signal paths supplies the individual box. Unlike many current speaker models, no special system amplifier is required for operation. The system already features a balanced frequency response and the necessary protection circuits. This compact sound reinforcement solution has been used for more than two decades – a long time in a fast-moving market. General notes The sale is private and takes place in accordance with the new EU legislation. I sell exclusively items from my private property. The goods are offered in the condition described. Please clarify any open questions before placing a bid. The item is sold privately “as is”. By placing a bid, you expressly agree to waive the statutory warranty in full for used goods. Returns and exchanges are excluded. Please do not bid if you do not agree to these conditions. An invoice cannot be issued. Warranty claims pursuant to § 438 I No. 3 BGB are expressly excluded. This notice is provided due to the current legal situation regarding warranty law and is intended to avoid misunderstandings. The purchase is made excluding any liability for material defects. This does not affect liability for damages resulting from injury to health, body or life, or from grossly negligent and/or intentional breach of my duties as the seller. For legal professionals All product designations, trademarks, company names, factory and trade brands, trade symbols, manufacturers’ brands, logos and other identifying marks used are the property of their respective owners. They are used exclusively to explain facts, product properties and technical characteristics to interested buyers in an understandable and unambiguous manner. If you believe that the designations or wording used in this description infringe any industrial property rights or copyrights, please contact me via the eBay messaging system. This will allow me to review the matter quickly and amend the description if necessary. Without prior contact or a corresponding notice, lawyers’ letters, cease-and-desist warnings or cost claims invoking the duty to mitigate damages will be rejected.

Specifications
