Description

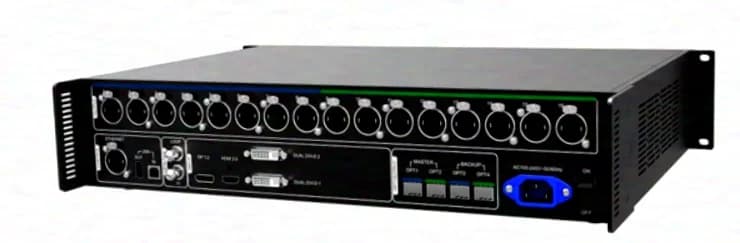

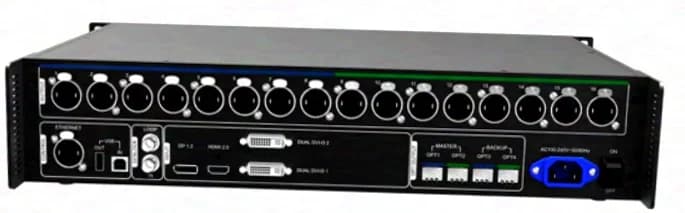

The MCTRL4K serves as a powerful controller for LED displays and enables the processing of high resolutions. At 60 Hz, a single unit can display content up to 4096 × 2160 pixels. In addition, freely defined resolutions can be configured, with the maximum width or height being 7680 pixels in each case. This makes the controller suitable for particularly long or wide LED walls. Numerous modern functions are available for high-quality image display. These include HDR, separate gamma correction for the RGB channels, low latency, 3D support, and pixel-level calibration of brightness and chroma. These technologies contribute to uniform, detailed and brilliant images with optimized brightness, color reproduction and grayscale display. Thanks to its stable and reliable operation, the MCTRL4K can be used both for temporary rental productions and in fixed installations. Typical application areas include concerts, live events, security monitoring, Olympic Games, sports venues and comparable events. Features >Versatile signal inputs: 1 × DisplayPort 1.2, 1 × HDMI 2.0 and 2 × DL-DVI >16 Neutrik Gigabit Ethernet outputs and 4 optical connections >Via DP and HDMI, the maximum load capacity is 8,800,000 pixels. >Via the DVI input, a maximum of 8,300,000 pixels can be processed. >The maximum possible width or height of a single MCTRL4K is 7680 pixels. >Supported input depths: 8 bit, 10 bit and 12 bit >HDR support for HDR10 and HLG >In conjunction with HDR-capable receiving cards, image quality can be significantly improved to produce more vivid and detailed images. >3D support: Together with the EMT200 3D emitter and suitable 3D glasses, 3D displays can be realized. >Separate gamma adjustment for the RGB channels >Switching from limited RGB to full RGB >Low-latency processing >Support for decimal frame rates such as 23.98/29.97/47.95/59.94/71.93/119.88 Hz >Pixel-level calibration of brightness and chroma >Support for ultra-high input resolutions in combination with an NVIDIA graphics card >Configuration of the LED screen via a web interface >Cascading of up to 10 MCTRL4K units Technical data Electrical parameters Input voltage: 100–240 V~, 50/60 Hz Rated power consumption: 30 W Operating environment Temperature range: -20 °C to +60 °C Humidity: 10% RH to 90% RH, non-condensing Storage environment Temperature range: -20 °C to +70 °C Humidity: 10% RH to 90% RH, non-condensing General data Dimensions (W × D × H): 482.6 × 372.0 × 88.1 mm Weight: 4.6 kg

Specifications
