Description

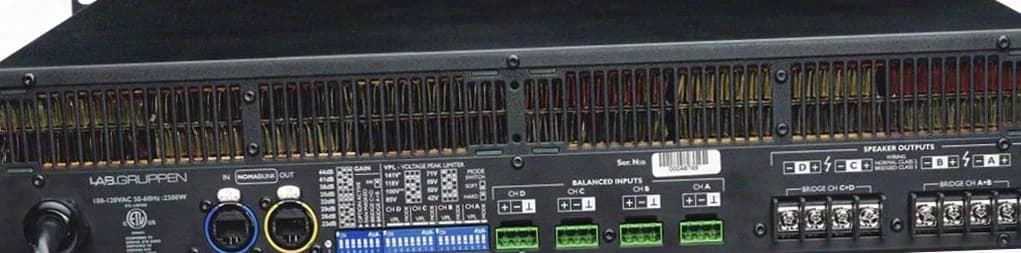

• Powerful 4-channel amplifier with a total of 2,800 watts and up to 700 watts per output channel. Integration into a NomadLink network enables monitoring and control. • Selectable gain levels, a scalable Voltage Peak Limiter (VPL), and a bridge mode are available for different applications. • Output power: 4 x 300 watts at 2 Ohm, 4 x 700 watts at 4 Ohm, 4 x 700 watts at 8 Ohm, 4 x 600 watts at 16 Ohm, 4 x 700 watts in Hi-Z operation at 70 V, and 4 x 700 watts in Hi-Z operation at 100 V. • The reliable Class-TD amplifier technology combines the audio quality of a Class-A/B circuit with the efficiency of a Class-D amplifier. • Thanks to the regulated R.SMPS switching power supply technology, the output power remains constant. • Central functions can be monitored and operated via the NomadLink network using the Intuitive DeviceControl software. • An extensive protection system warns or protects against current and voltage problems, DC, overtemperature, short circuits, and open loads. • The efficient copper cooling system of the intercooler supports improved heat dissipation and thereby enables longer peak performance. • Four balanced analog audio inputs via 3-pin Phoenix connectors. • Four 2-pin screw terminal connectors with barrier strips. • The removable dust filter grille contributes to better air circulation. • The compact and robust 2HE rackmount housing requires little space and is suitable for installation applications. Shipping within Germany at no additional charge. Special sale due to a series change. Payment by PayPal possible – alternatively order directly at: https://www.pan-pro-shop.de/LAB-GRUPPEN-C28-4-Verstaerker-4x700W-4-2HE/272937

Specifications
