Description

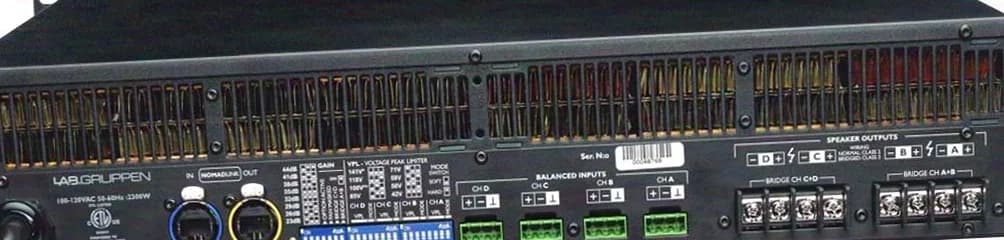

The C 88:4 is the top model in the C Series and is one of the most powerful four-channel installation amplifiers ever. Each channel provides up to 2,200 W at 2 Ohm – up to 8,800 W in total are possible. Thanks to its high power reserve, the unit is also suitable for particularly demanding permanent installations, such as those with large subwoofers, extensive array systems or applications with different power and impedance levels. The power amplifier is housed in a space-saving 2-HE enclosure that combines high power with flexible installation options. The individual channels can be adapted to different loads. For this purpose, each channel has a configurable Voltage Peak Limiter (VPL™) and selectable input gain. This allows the output power to be matched to various loudspeaker configurations – from high-powered subwoofers to several 100-/70-V loudspeakers. VPL and adjustable gain structure ensure the greatest possible headroom regardless of the input signal and output impedance. All units are factory-prepared for integration into a NomadLink® network. Using the DeviceControl software, central amplifier parameters can be displayed and important functions such as channel mute as well as switching the unit on and off can be conveniently controlled remotely. **Features** - 8,800-Watt power amplifier with four channels, up to 2,200 W per channel and NomadLink network for monitoring and control - Selectable gain, scalable Voltage Peak Limiter (VPL) and bridge mode for application-specific configuration - Class-TD output stage with the audio quality of Class A/B and the efficiency of Class D - Regulated R.SMPS switching power supply for consistent output power - DeviceControl software for monitoring and operating important functions via the NomadLink network - Extensive protection circuits with warnings for overcurrent, overvoltage, DC voltage, overtemperature, short circuit and no load - Efficient Intercooler copper cooling system for improved heat dissipation and longer peak performance - Removable dust filter grille for optimized air circulation - Robust, compact 2-HE rack enclosure for space-saving installations **Technical data** Number of channels: 4 Total peak power of all operated channels: 8,800 W Output peak voltage per channel: 141 V Max. output current per channel: 35.5 A RMS Max. output power with all channels operating: 625 W (16 Ohm) / 1,250 W (8 Ohm) / 2,100 W (4 Ohm) / 2,200 W (2 Ohm / Hi-Z 70 V) / 1,700 W (Hi-Z 100 V) Max. output power in bridge mode: 2,500 W (16 Ohm) / 4,200 W (8 Ohm) / 4,600 W (4 Ohm) / 4,400 W (Hi-Z 140 V) Total harmonic distortion from 20 Hz to 20 kHz at 1 W: <0.1 % Total harmonic distortion at 1 kHz and 1 dB below clipping: <0.05 % Signal-to-noise ratio: >112 dBA Channel separation at 1 kHz: >70 dB Frequency response at 1 W into 8 Ohm, +0/-3 dB: 6.8 Hz to 34 kHz Input impedance: 20 kOhm Common-mode rejection (CMR): >50 dB, 20 Hz to 20 kHz Output impedance at 100 Hz: 30 mOhm Selectable VPL voltage limiting per channel: 141, 118, 100, 85, 71, 59, 50, 42 V VPL voltage limiting in bridge mode: 282, 236, 200, 170, 142, 118, 100, 84 V VPL mode: Hard / Soft Selectable gain for all channels: 23, 26, 29, 32, 35, 38, 41, 44 dB Standard gain: 35 dB Level control per channel: 21-step detented potentiometer on the front, from -inf to 0 dB, concealed behind a safety panel/dust filter grille Inputs: 4x Phoenix, 3-pin Outputs: 2-pin barrier-strip screw terminals Bridge mode: A+B and/or C+D; inputs A and C serve as the signal source NomadLink network: integrated, 2x RJ45 connections Intelligent fan control: on/off depending on the output signal present Power switch and remote activation: separate switches on the front panel Cooling: two fans, airflow from front to rear, temperature-controlled speed Indicators: NomadLink Network; Power Average Limiter (PAL) 5); Power on; Signal present / High Impedance; -10 dB and -4 dB output signal; Voltage Peak Limiter (VPL); Current Peak Limiter (CPL); Very High Frequency (VHF); high temperature; fault; mute Operating voltage, nominal 230 V / 115 V: 130–265 V / 65–135 V 4) Minimum turn-on voltage at 230 V / 115 V: 171 V / 85 V Power Average Limiter (PAL): Yes Mains connection: 230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist Lock Dimensions (W x D x H): 483 x 343 x 88 mm, 19 inches, 2 HE Weight: 12 kg Shipping within Germany is possible at no additional charge. Special sale due to a series change. Payment via PayPal possible – alternatively order directly at: https://www.pan-pro-shop.de/LAB-GRUPPEN-C-88-4-Amp-4x2100Watt-4-Ohm-2HE/272947

Specifications
