Description

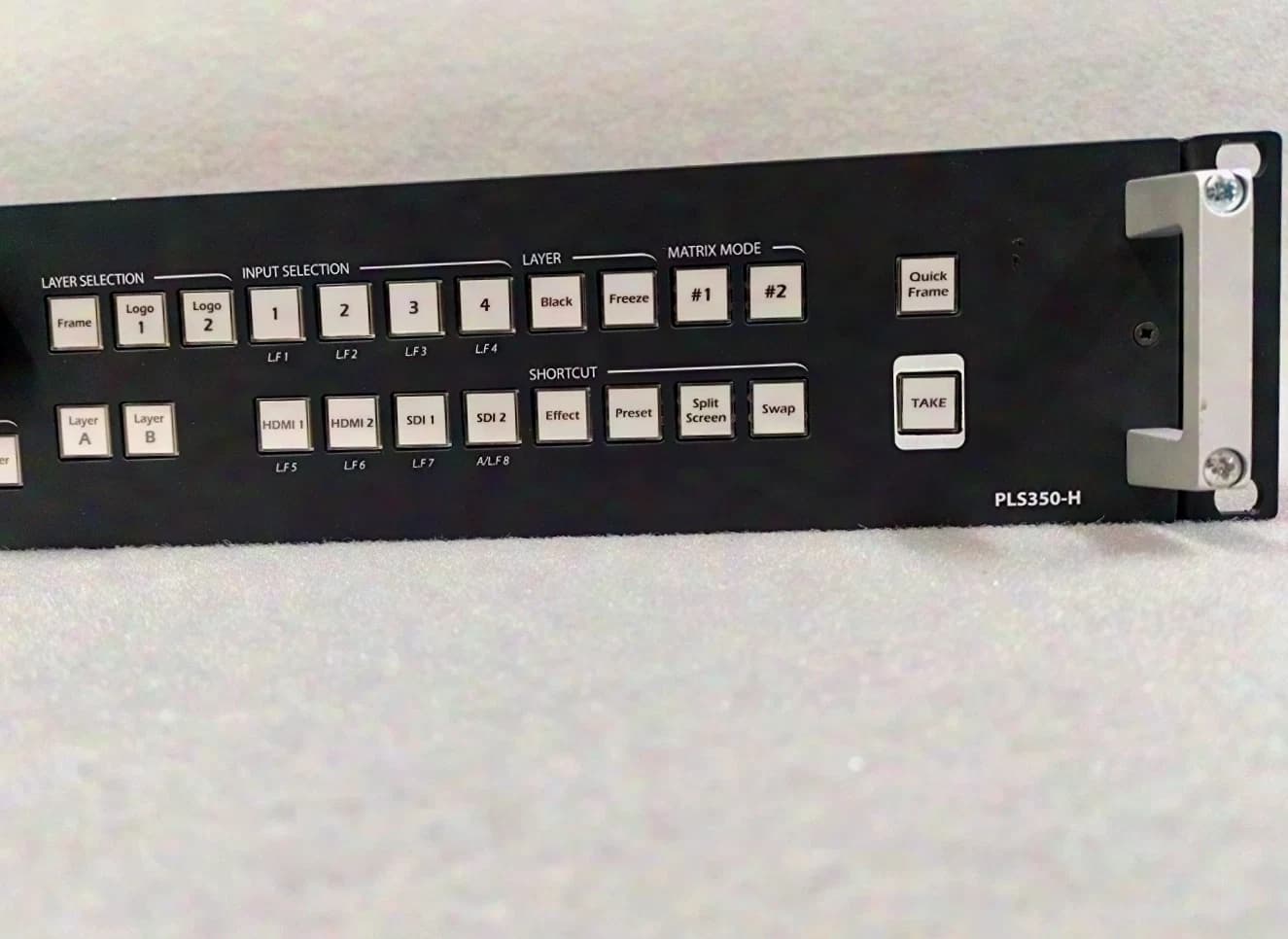

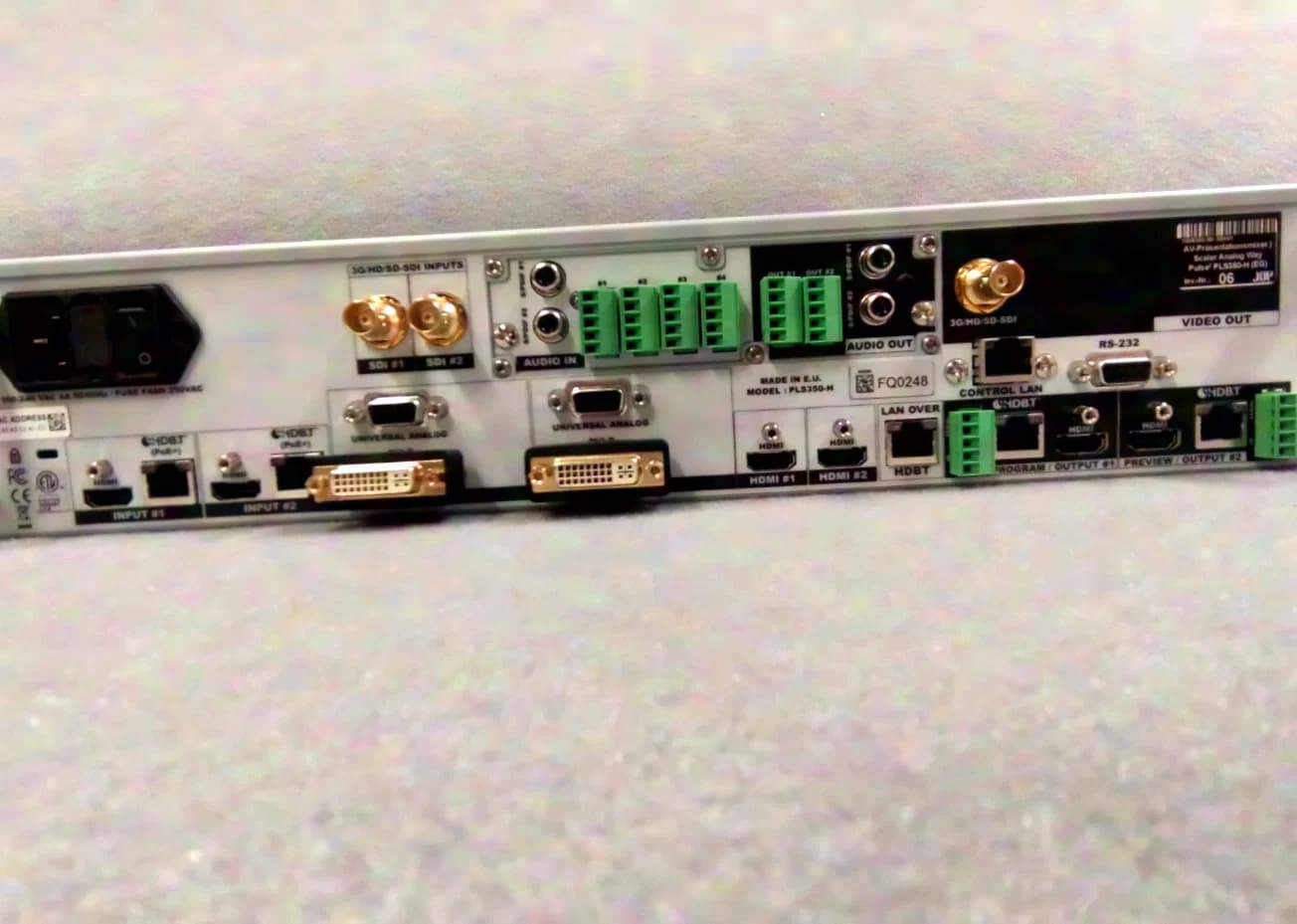

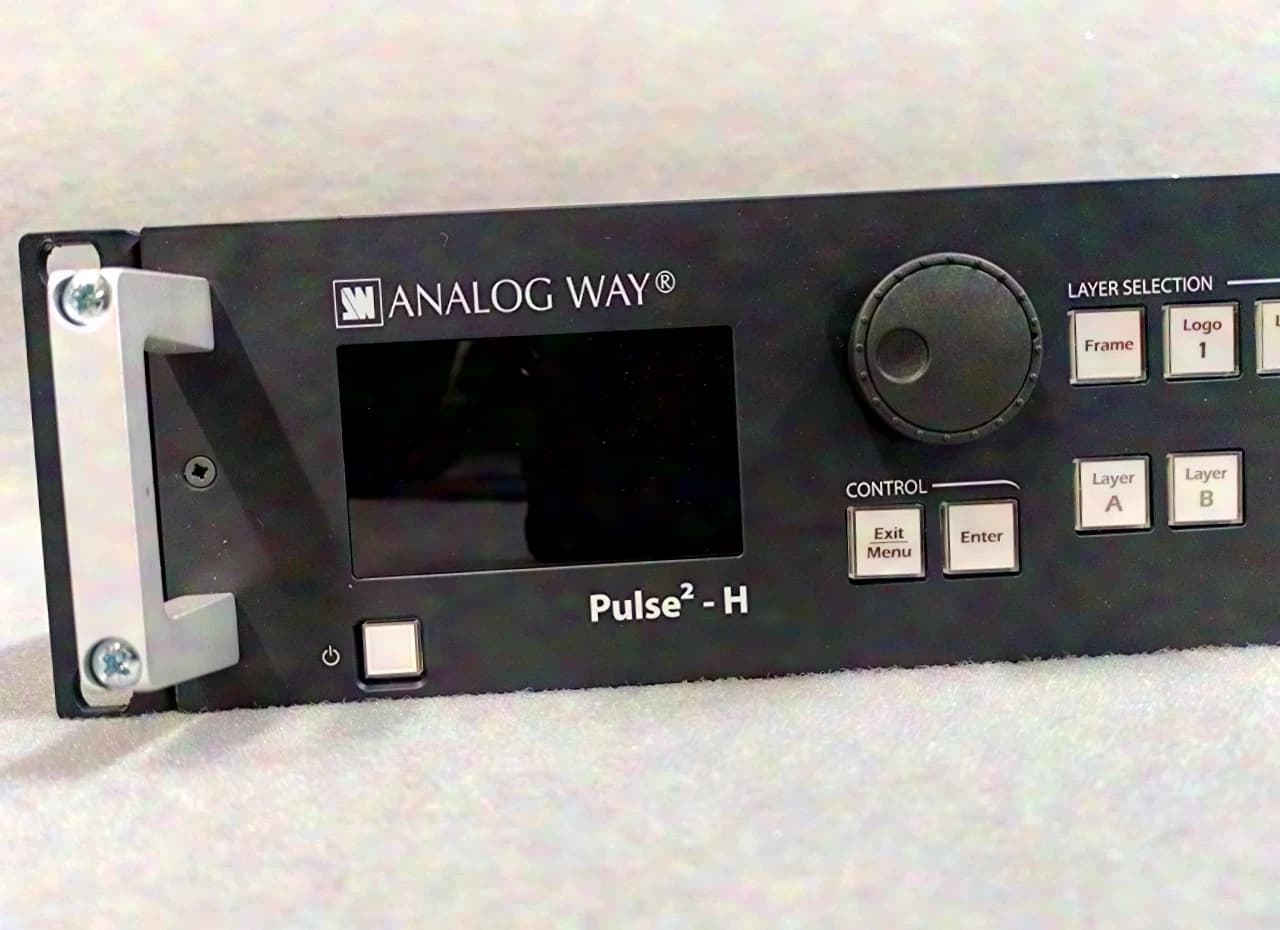

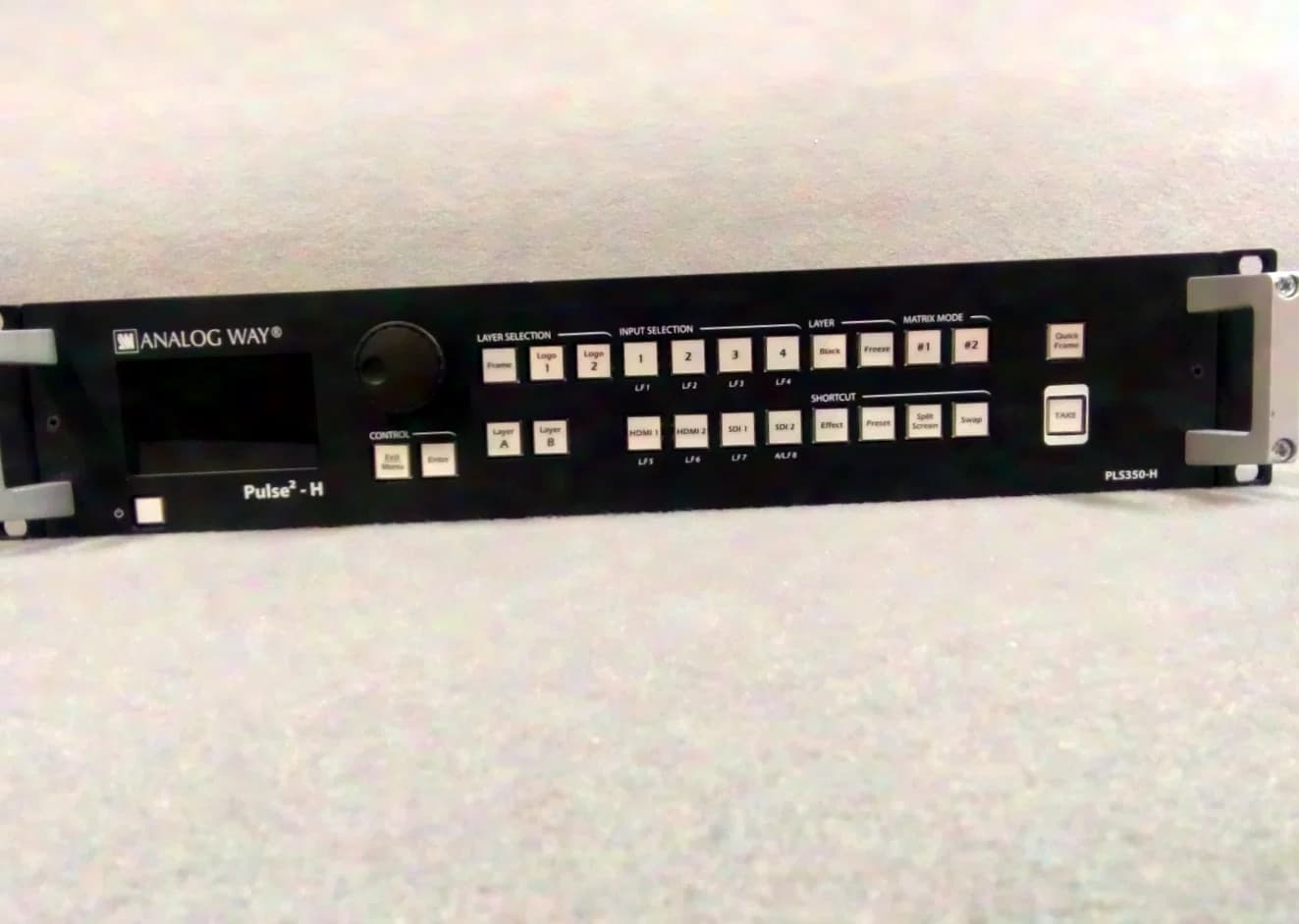

For sale is a professional HDBT video mixer in extremely well-maintained, fully functional condition – nearly as good as new. The device comes from our equipment pool and was regularly inspected and serviced, including in accordance with BGV A3, by our in-house service workshop. • Scalable inputs: - 2× analog (VGA) - 2× DVI, 4× HDMI, 2× SDI • Scalable outputs: - 2× HDMI, 1× SDI • Audio connections and functions: - Inputs: 4× 5-Pin Phoenix - Outputs: 2× RCA (S/PDIF), HDMI, BNC Embedded as well as 2× 5-Pin Phoenix - Embedder and De-Embedder - 2 to 8 channels - Supports analog and digital audio signals • Features and operating functions: - 2 Scalers/Layers with 8 Presets - PIP, EDID and adjustable HDCP - Clocking - Operating modes: Mixer and Matrix - Preview/Program mode • Supported standards: - HDMI 1.0 - DVI-D (Single Link up to 165 MHz) - SDI in accordance with SMPTE 259M, 292M, 344M and 425M • Operation and control: - LAN connection (RJ45) - RS-232 - Software control - Operation directly on the device • Power supply and dimensions: - Power consumption: 155 W - Connection via Schuko to IEC C13 - Mains voltage: 100–240 V - Dimensions: 440 × 400 × 88 mm - Weight: 7,2 kg The sale is exclusively to commercial buyers, excluding any warranty. A proper invoice will be issued. Collection in Aachen is possible. Shipping can be arranged for an additional charge.

Specifications
