Description

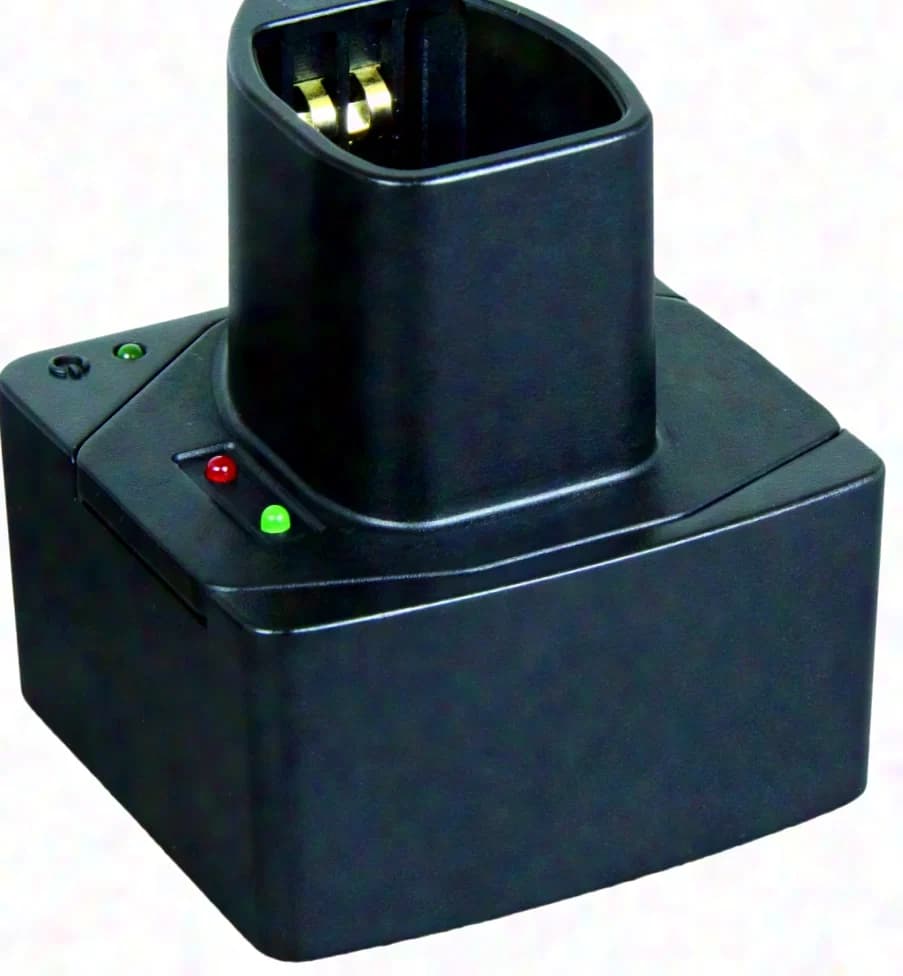

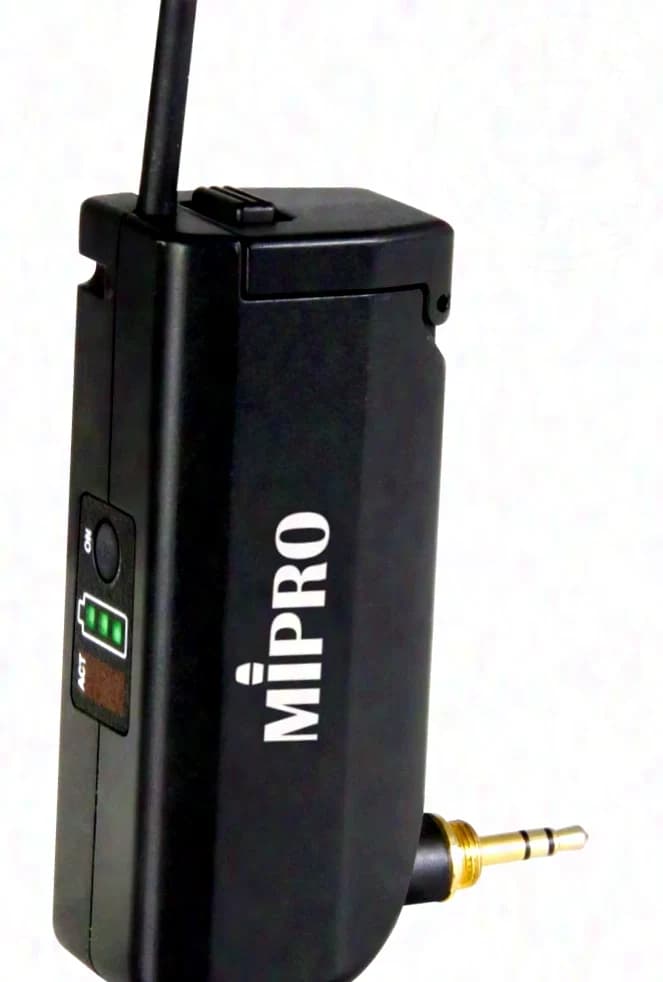

Set consisting of: 1 x digital 2.4-GHz receiver pedal MR-24 1 x digital jack plug-on transmitter MT-24 1 x charging station MP-24 ### Receiver MR-24 The digital pedal receiver was developed for versatile yet straightforward operation in studio and live use. Transmission takes place in the license-free 2.4-GHz band. This provides several compatible channels while largely avoiding interference from other transmitters. Reliable, high-quality signal transmission is also possible over greater distances. The receiver, specially designed for musical applications, features a clearly arranged LCD display showing the various settings and functions. The instrument signal can be processed with various preset effects. Using the footswitch, the output signal can be routed to the desired outputs according to the configuration. The robust metal housing, integrated antennas and ergonomically designed footswitch are intended for practical use. Up to 32 parameters can be programmed in the function menu, including Channel and ID, Cable Tone, Acoustic Response, Anti-Feedback, Gain, Output, Phase, Situation Color, Name, Auto Wake Up and Channel Scan. Digital signal transmission ensures very low self-noise. A high-quality DSP with special algorithms supports natural and faithful sound reproduction. Two 6.25-mm jack outputs and one XLR output are available for audio output. The outputs can be assigned different effects or muted separately. The Ground-Lift switch can electrically isolate the output from ground to avoid mains hum. An additional Tuner Out with a 6.25-mm jack socket is provided for tuning and adjustment. The sensitivity of each channel can be adjusted individually. This keeps the output level consistent when using different instruments. The 9-V-DC power supply also allows the supply voltage to be looped through to additional effects devices. User setups can be saved and firmware updates installed via the Micro-SD card slot. ### Technical data Product variant: MR-24 – three-channel pedal receiver with integrated antennas Frequency range: 2.400–2.4835 GHz Switching bandwidth: 83.5 MHz Frequency groups: 12 preprogrammed frequencies Dimensions: 110 x 50 x 130 mm Weight: approx. 0.85 kg ### Transmitter MT-24 The digital jack plug-on transmitter operates with a rechargeable battery and has a robust plastic housing. The battery level is shown by a display with three LEDs. The audio connection can be made either via a 3.5-mm stereo jack plug or, using the supplied adapter, via 6.35 mm. The radio frequency between transmitter and receiver is synchronized via an infrared signal. The transmitter uses digital modulation and operates in the range of 2.4000–2.4835 GHz with a switching bandwidth of 83.5 MHz. There are 12 compatible channels, 64 ID codes and a specific ID code for each channel to prevent interference from signals on the same frequency. The transmission power is 10 mW. With a clear line of sight between the antennas, a maximum range of 60 meters is possible. The supplied ICR-18500 lithium battery enables an operating time of up to 12 hours. The automatic switch-off is set to 2 hours. The MP-24 charging station can be used for charging. MP-80 and MPA-24 are available as optional accessories. Model: MT-24 Type: Digital GHz audio plug-on transmitter with rechargeable battery operation Display: 3-LED battery level display Housing: Robust plastic housing Radio frequency: 2.4000–2.4835 GHz Switching bandwidth: 83.5 MHz Compatible channels: 12 ID codes: 64 plus one specific ID code per channel Modulation type: Digital Transmission power: 10 mW Range: maximum 60 m with line of sight Connection: 3.5-mm stereo jack plug Adapter: 6.35-mm jack plug adapter included Audio level settings: Max. - Power supply: 1 x ICR-18500 lithium battery, included Operating time: up to 12 hours, automatic switch-off after 2 hours Charging station: MP-24; MP-80 and MPA-24 as optional accessories Dimensions: 84 x 35 x 29 mm Weight: approx. 61 g Antenna: 1 x external, non-removable antenna Scope of delivery: 1 x MR-24 including power supply 1 x MR-24 including jack plug adapter 1 x battery for the MR-24 1 x charging station MP-24
