Description

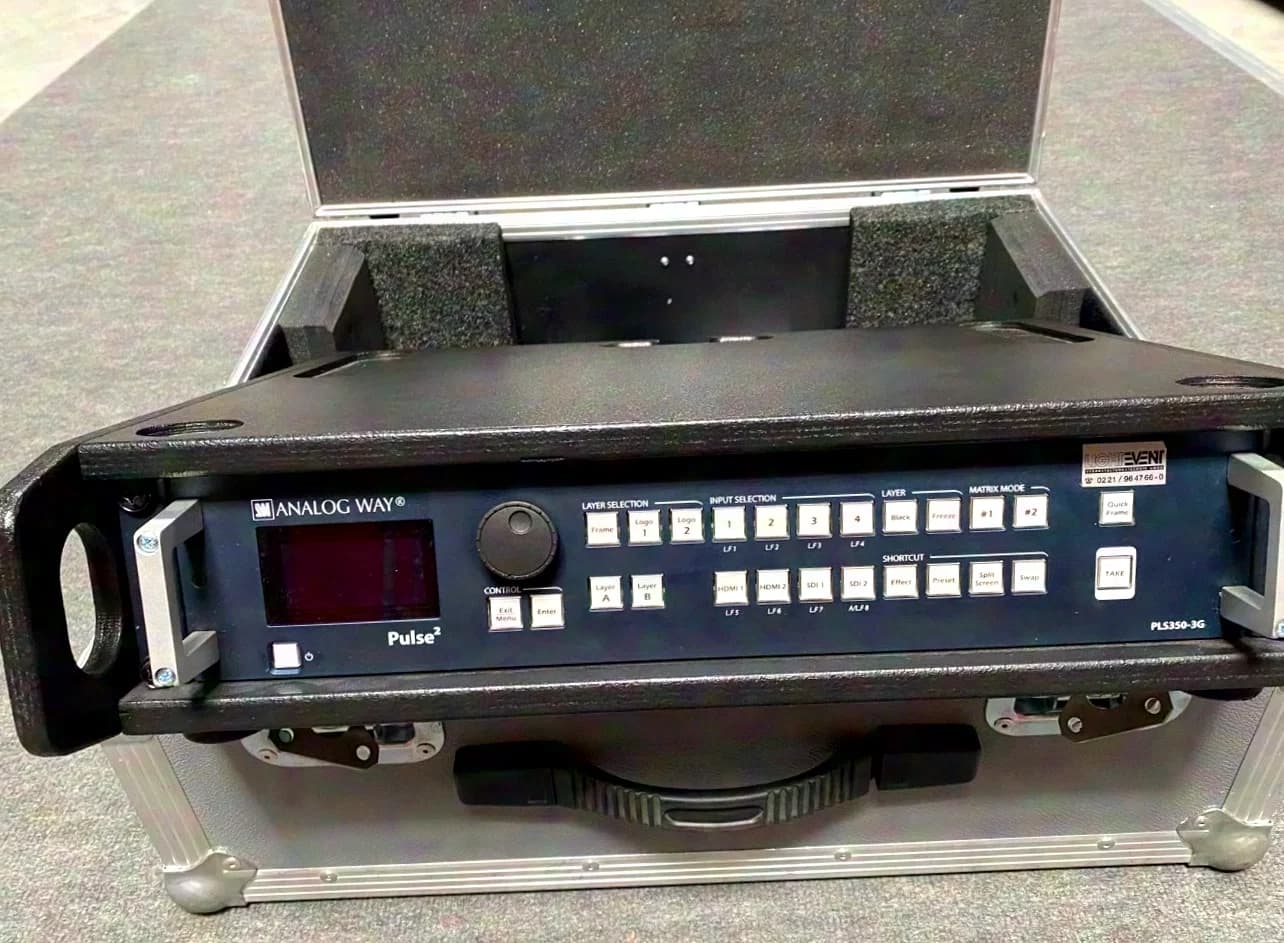

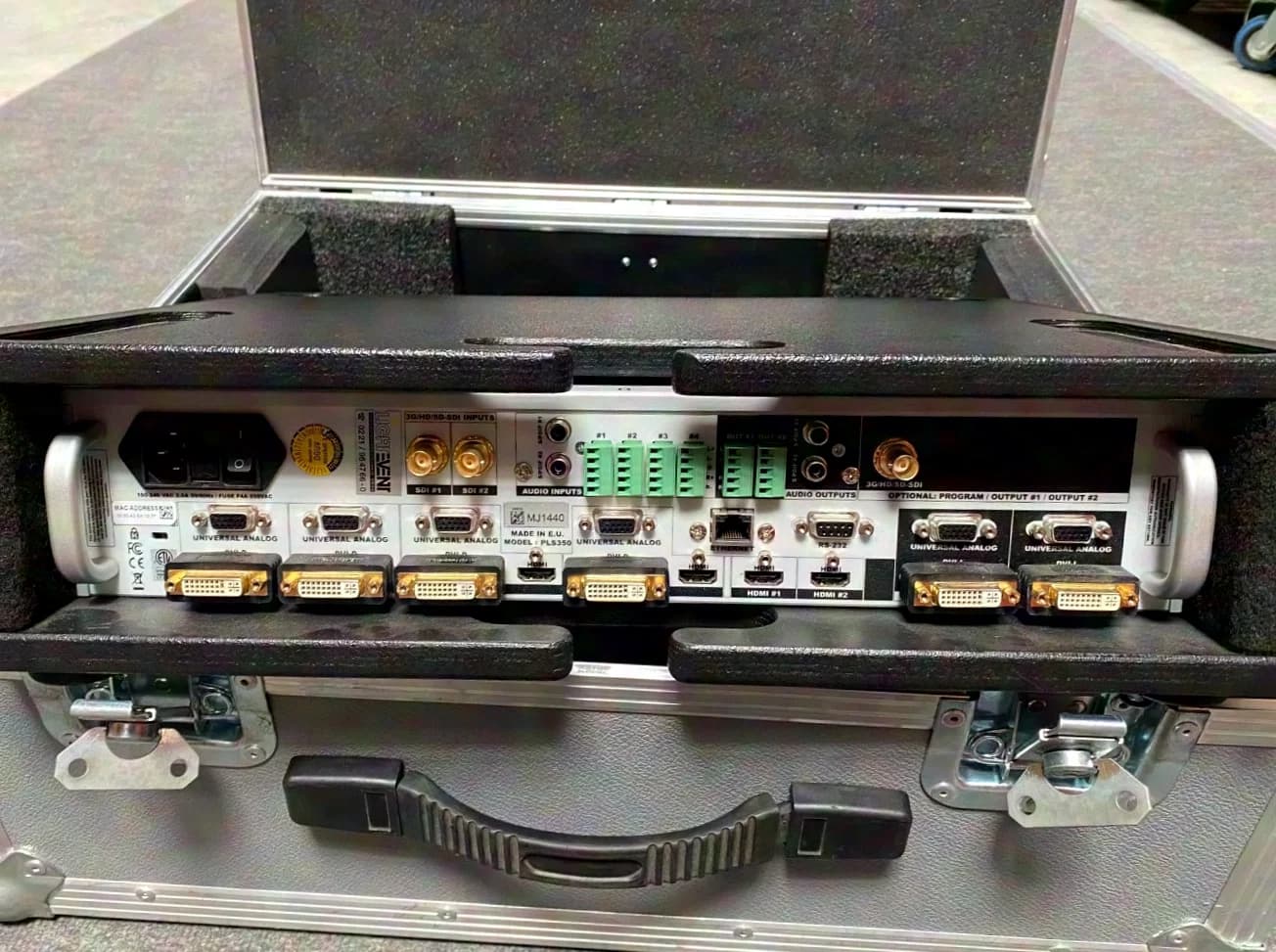

High-resolution seamless switcher with eight inputs and native matrix operation. Additionally, a 3G-/HD-/SD-SDI output is available, which can optionally be used as a video output or as a clone of the program. Inputs: 4x DVI-D, 4x HDMI, 4x VGA, 2x SDI as well as RJ45 Outputs: 2x DVI-I, 2x VGA and 1x SDI Technical specifications • 4 scaled analog inputs • 2 scaled analog outputs • Analog connections via HD15 / VGA • 4 scaled DVI inputs • 2 scaled DVI outputs • 4 scaled HDMI inputs • 2 scaled SDI inputs • 1 scaled SDI output • Audio inputs: 2x RCA / Cinch S/PDIF, DVI-embedded, 4x 5-pin PHOENIX connector, HDMI-embedded and BNC-embedded • Audio outputs: DVI-embedded, 2x RCA / Cinch S/PDIF as well as 2x 5-pin PHOENIX connector • 2 scalers or layers • 8 available presets / memory slots • EDID management available • Adjustable HDCP support • PIP function for picture-in-picture display • Genlock function available • Audio functions: embedder and de-embedder • Supported audio formats and functions: Embedded Audio, 8 channels, stereo, analog, digital as well as 2 channels • Supported analog standards: data and video signal • Supported DVI standards: DVI-D as well as Single-Link-DVI up to 165 MHz • Supported HDMI standard: HDMI 1.0 • Supported SDI standards: SMPTE 259M / SD-SDI / 480i, 576i; SMPTE 425M / 3G-LvA-SDI / 1080p (50/60); SMPTE 344M / SD-SDI / 480p, 576p as well as SMPTE 292M / HD-SDI / 720p, 1080i • Operating modes: mixer, native matrix as well as preview/program operation • Operation via an external device, directly on the unit or using standalone software • Control via RJ45 / LAN as well as serial D-Sub RS-232 interface

Specifications
