Description

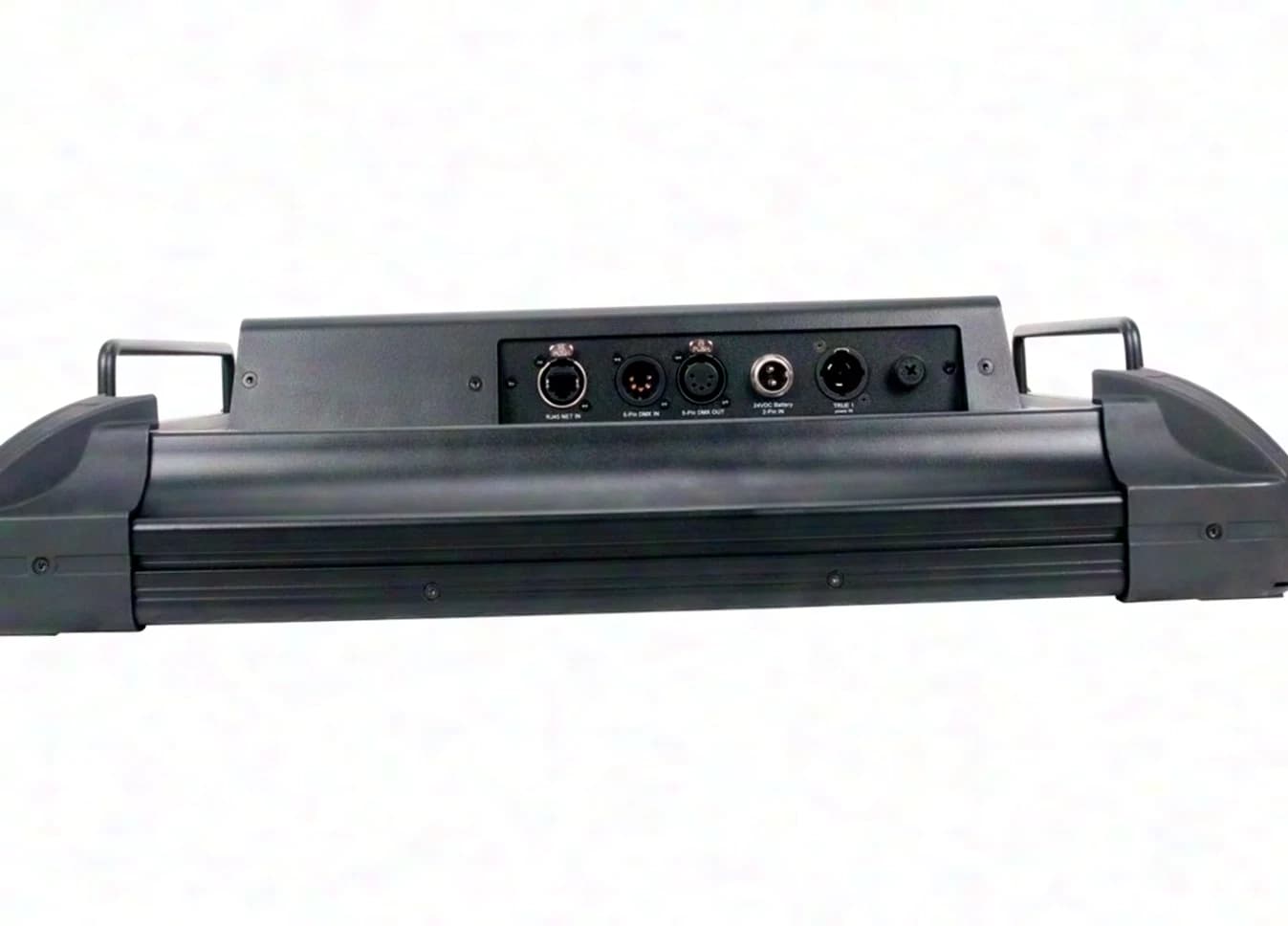

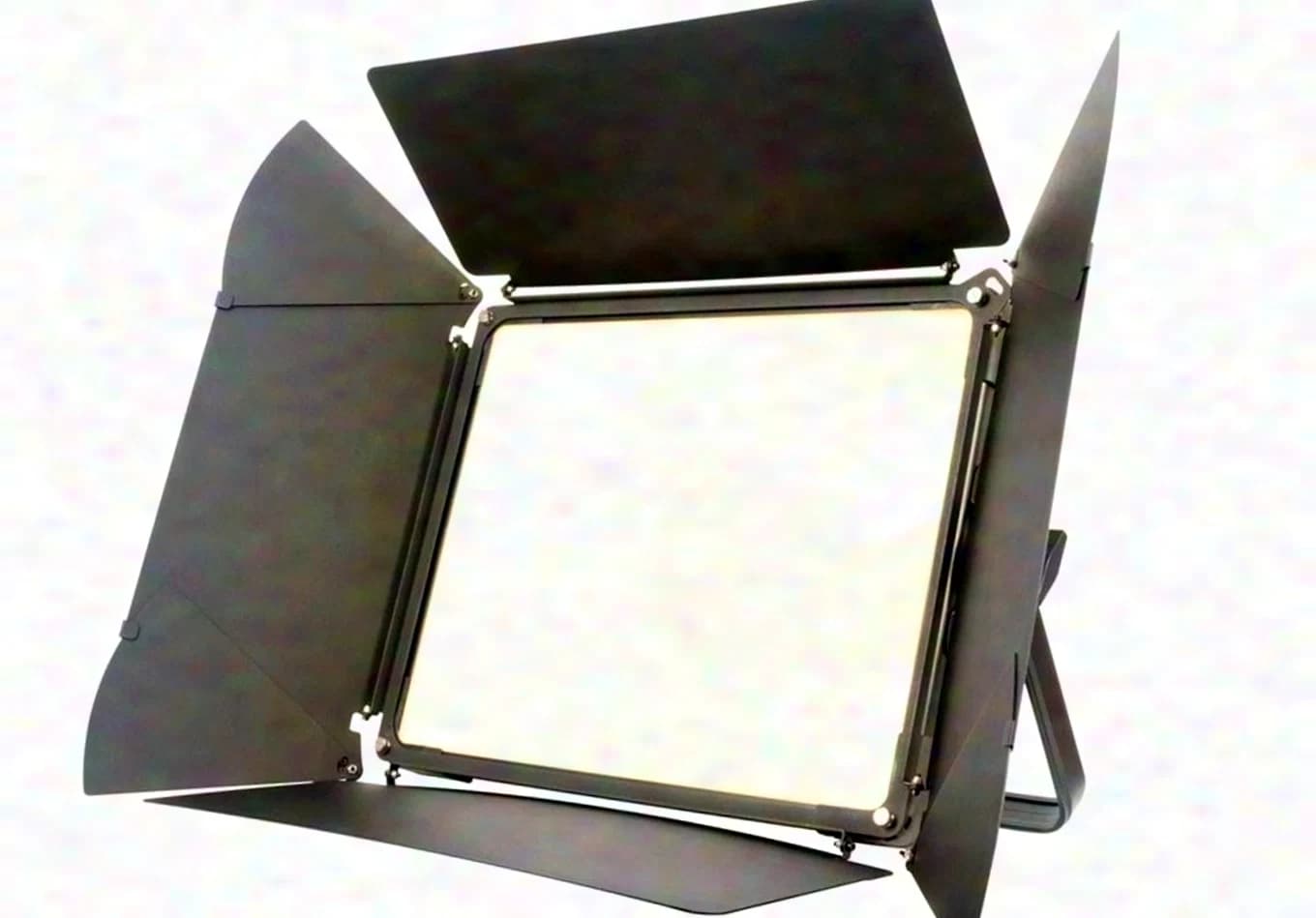

High-quality softlight for particularly even and soft illumination. Thanks to silent convection cooling, the unit is ideally suited for TV and film productions, theaters, photo studios and other noise-sensitive applications. A total of 960 single-chip LEDs provide the high light output: 480 warm-white and 480 cool-white light sources. With a color rendering index of over 95, colors are reproduced particularly naturally. The Dynamic-White function enables stepless adjustment of the color temperature from warm 3,200 Kelvin to cool 5,600 Kelvin. The wide beam angle of 115° ensures broad light distribution. The included 8-leaf barndoor can be used to specifically limit the light output and adapt it to the respective application. High-quality 16-bit dimming ensures precise brightness transitions. Five selectable dimmer curves are available for different applications. Operation can be carried out via two jog wheels, allowing brightness and color temperature to be adjusted directly manually. The two-line, 8-character LC display clearly shows the respective values. The equipment includes a powerCON True1 input, 5-pin XLR connectors for DMX, and an RJ45-etherCON network interface for ArtNet. DMX 512-A including RDM and six DMX modes with 2, 3, 4, 5, 6 or 7 channels are supported. Features Dynamic White with stepless color temperature mixing Stand-Alone programming for Dynamic White Manual control of brightness and color temperature via jog wheels Storage of the last operating state Clear menu with LC display Flicker-free LED control Selectable PWM frequency Selectable gamma correction Variable dimmer curves Operating hours counter Default-Set function Display protection by password No-DMX backup with the options Close, Hold and Auto-Program Software update via DMX 512 Connection option for an external battery pack powerCON True1 input Technical data Optical system Optics: fixed optical system Beam angle: 115° LED light sources LEDs: 960 single-chip LEDs, CRI 95+ Configuration: 480 cool-white and 480 warm-white LEDs LED lifespan: over 50,000 hours Color mixing: Dynamic White, 3,200–5,600 K Temperature ranges Permissible ambient temperature: -10 to +40 °C Cooling: convection cooling Control & programming Protocols: DMX 512-A with RDM, ArtNet DMX channels: 2/3/4/5/6/7, 6 modes Internal memory: Stand-Alone programming for Dynamic White Display: 8-character, two-line LCD DMX connectors: 5-pin XLR inputs and outputs ArtNet connection: RJ45-etherCON General data Mains voltage: 100–240 V, 47–63 Hz Power consumption: 0.9 A at 230 V Mounting: compact bracket for suspended installation Housing Material: aluminum Color: black Protection rating: IP20 Dimensions/weight Dimensions (L x W x H): 668 x 128 x 491 mm Weight: 10 kg Scope of delivery LED panel light powerCON True1 connection cable 8-leaf barndoor

Specifications
