Description

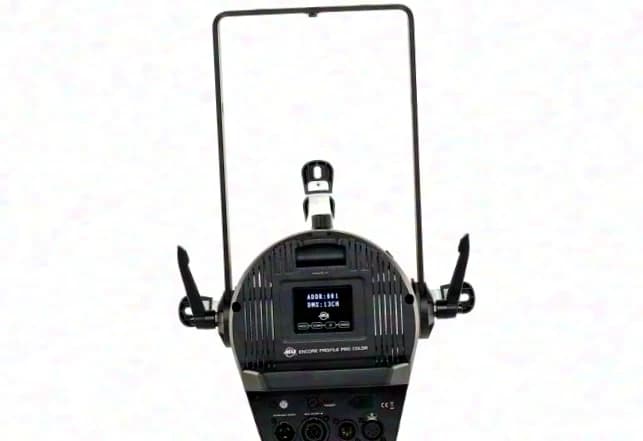

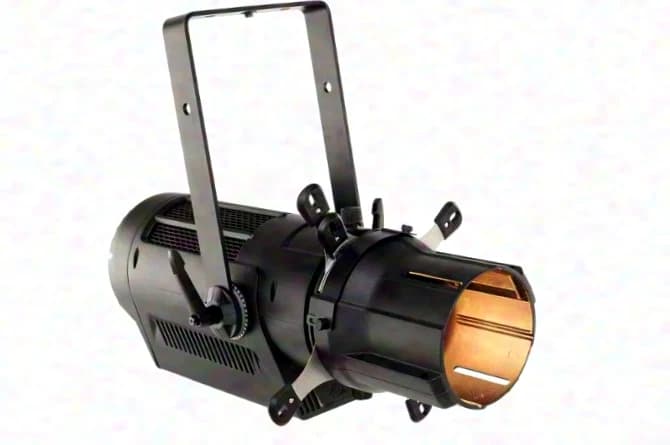

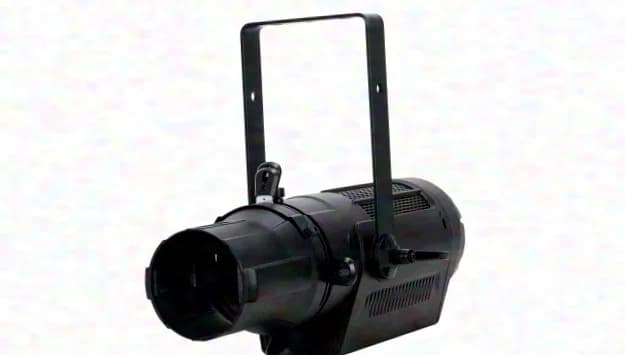

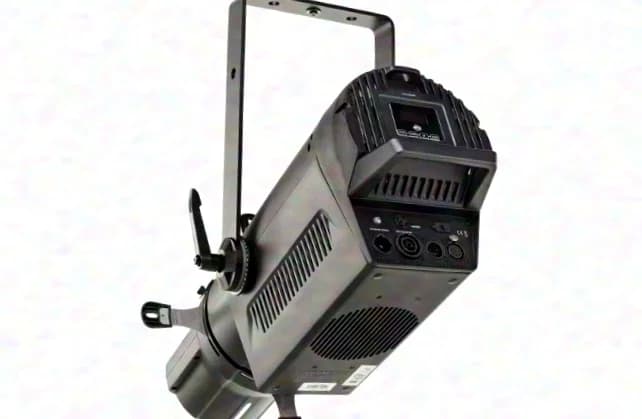

Black LED profile spotlight with a warm white light source and 260-W LED engine. The delivery includes the 19°, 26° and 36° lenses. Control is possible both via DMX and in manual warm white dimmer mode. Technical data Source Light source: 1 WW-LED engine Individual LED power: 260 W Average LED lifespan: approx. 50,000 hours Color temperature: 3200 K CRI: >95 Optics Manual focus Manually adjustable framing shutters Optional lenses available in 5°, 10°, 14°, 19°, 26°, 36° and 50° Included in delivery: 19°, 26° and 36° lenses Control Two operating modes: manual WW dimmer mode and DMX control Three DMX modes with 1, 3 or 4 channels RDM-compatible Electronic 16-bit dimming from 0 to 100 % Six selectable dimming curves: Standard, Stage, TV, Architecture, Theatre and Stage 2 Dimming speed adjustable between 0.1 and 10 seconds Selectable gamma brightness: 1.0 / 2.0 / 2.2 / 2.2 / 2.4 / 2.6 / 2.8 LED refresh rate adjustable from 900 Hz to 25 kHz LED pulse and strobe effect Quiet fan cooling Digital touch display with four buttons on the rear Colors Warm white at 3200 K Gobos Support for size B gobos and HT transparency gobos Construction Metal housing Gobo holder included Manual framing shutters Electrical Multi-voltage operation with 100–240 V at 50/60 Hz Power consumption: 250 W Operating temperature: -10 to 45 °C Connections 5-pin locking DMX inputs and outputs IP65-locking power inputs and outputs Dimensions and weight Dimensions (W × D × H): 287 × 688 × 450 mm Weight: 9.1 kg

Specifications
