Description

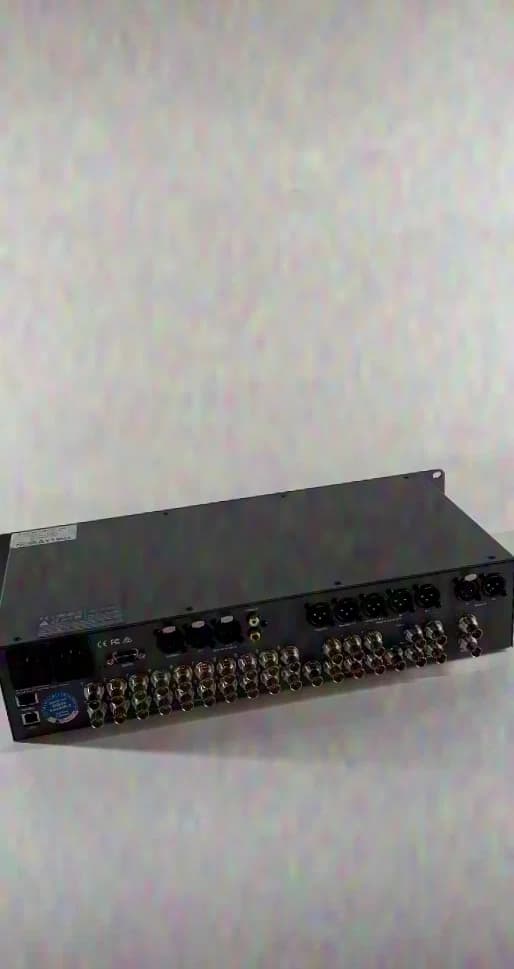

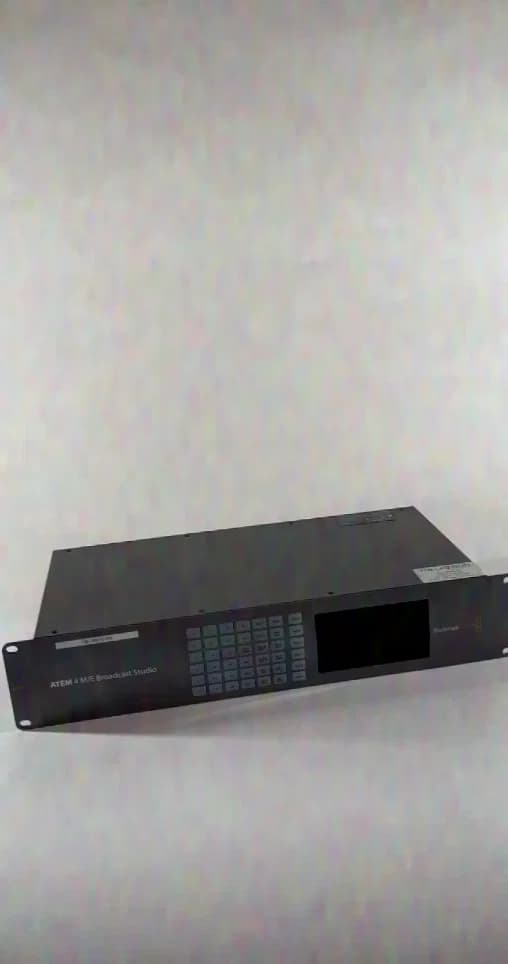

Powerful 4K production switcher for extensive live productions with a total of 26 layers. Features include 16 Upstream Keyers, 2 Downstream Keyers, 19 Linear/Luma Keyers and 16 Chroma Keyers. There are also 19 pattern generators, 2 color generators and a DVE with 3D frames and shadow effects. A transition keyer is available for both Stinger and DVE transitions. The four integrated media players each support Fill and Key. A total of 16 windows can be routed. The Tally system signals Program with red and Preview with green light. The front panel features an integrated LCD monitor and 42 LED buttons. The screen resolution is at least 1366 x 768 pixels. Supported are 4:2:2 video sampling, 10-bit color processing and the REC 601, REC 709 and REC 2020 color spaces. The SDI interfaces comply with SMPTE 292M, SMPTE 424M and SMPTE 2082. Inputs: - 20x 12G/6G/HD/SD-SDI, each with 2x embedded audio - 1x HDMI Type A for 10-bit SD/HD/Ultra-HD-4K signals with 2x embedded audio - 2x analog audio input via XLR - 1x XLR timecode and 1x XLR talkback input - 2x analog audio input via RCA - 1x reference input for Tri-Sync or Blackburst - 1x USB-2.0 port Outputs: - 3x 12G/6G/HD/SD-SDI as Program outputs - 1x 10-bit SDI output for Ultra HD 4K to HD - 1x HDMI Type A for 10-bit SD/HD/Ultra-HD-4K signals with 2x embedded audio - 6x switchable 10-bit SD/HD/Ultra-HD-4K-SDI Aux outputs - 2x SDI for Multiview - 2x HDMI for Multiview - 2x XLR Program outputs and 2x XLR monitor outputs - 1x XLR timecode and 1x XLR talkback input Formats: - Ultra HD 4K: 3840 x 2160p/23,98; 3840 x 2160p/24; 3840 x 2160p/25; 3840 x 2160p/29,97 - HD: 720p/50; 720p/59,94; 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080i/50; 1080p/50; 1080i/59,94; 1080p/59,94 General: - Power supply via 2x AC 110–240 V - Power consumption: 300 W - Dimensions (HxLxD): 90 x 482 x 235 mm, 2 RU - Weight: 4,8 kg

Specifications
