Description

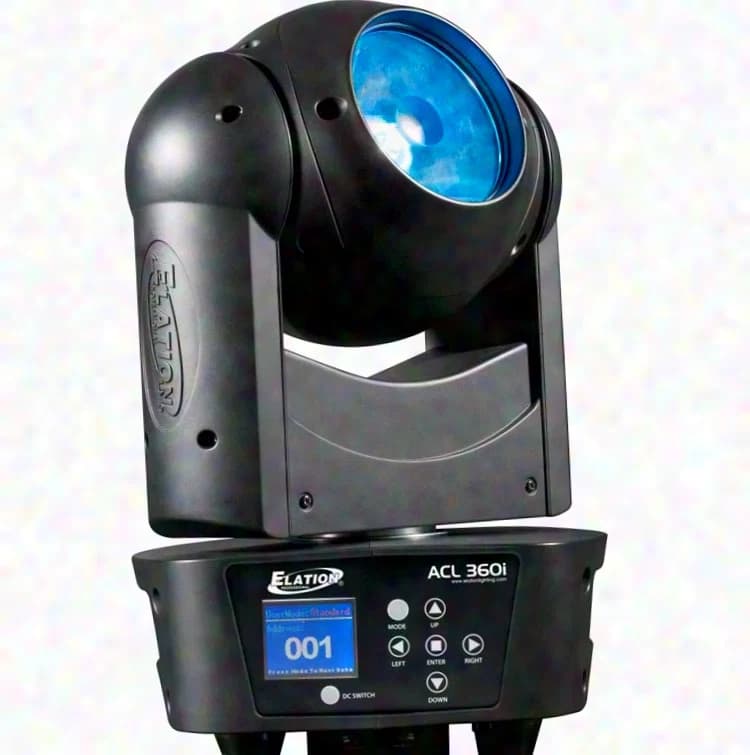

60W RGBW 4-in-1 LED source with an estimated average service life of up to 100,000 hours* PHOTOMETRIC DATA 30,601 LUX / 2,843 FC at 6.6' (2 m) 12,955 LUX / 1,204 FC at 9.8' (3 m) 7,687 LUX / 714 FC at 13.1' (4 m) 5,112 LUX / 475 FC at 16.4' (5 m) EFFECTS Strobe function with selectable dimming curves Built-in color macros COLOR RGBW color mixing CONTROL / CONNECTIONS Three DMX channel configurations: 16, 18 or 20 channels RDM support for Remote Device Management 6-button touch control panel Full-color LCD menu display with 180° reversible orientation Movement resolution selectable between 8-bit and 16-bit 5-pin DMX input and output RJ45 Ethernet input/output compatible with KlingNETT and Art-Net powerCON power input and output SIZE / WEIGHT Length: 8.7" (222 mm) Width: 7.3" (186 mm) Vertical height: 13.0" (330 mm) Weight: 11.5 lbs. (5.2 kg) ELECTRICAL / THERMAL Operating voltage: AC 100–240 V, 50/60 Hz Maximum power consumption: 110 W Operating temperature range: 5°F to 113°F (-15°C to 45°C) INCLUDED ITEMS 10° frost lens 45° frost lens Omega bracket powerCON cable *Actual LED service life can depend on various conditions, including the environment, power and voltage parameters, operating patterns such as on/off cycling, control settings and dimming.

Specifications
