Description

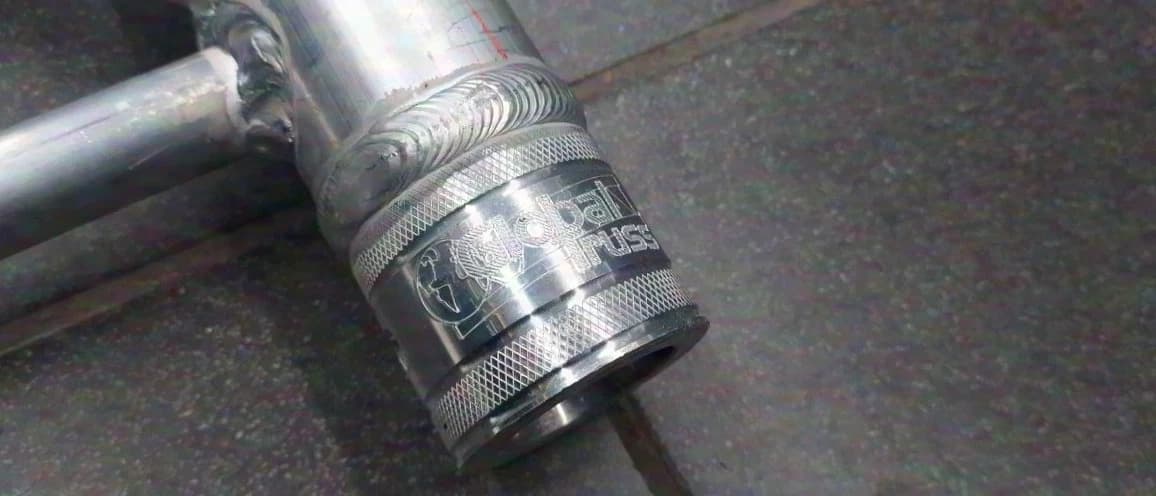

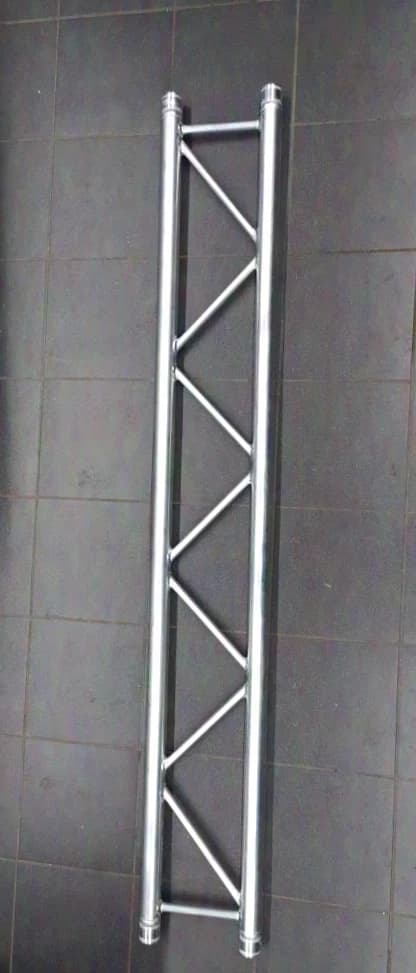

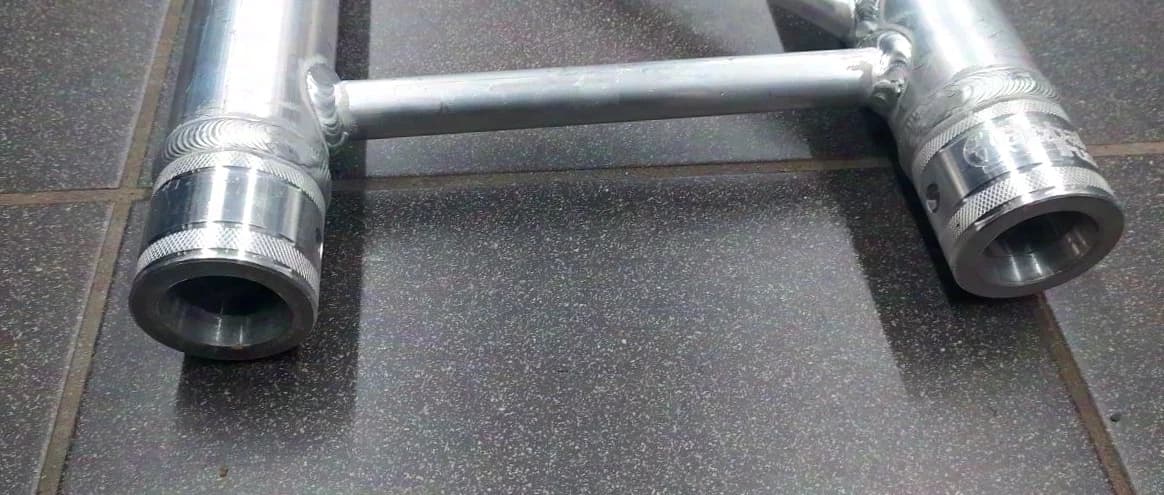

Rarely used 2-point ladder truss with a length of 200 cm. It is generally compatible with Eurotruss, Naxpro and Sweettruss. The conical connectors can be supplied upon request; in the technical specifications, they are also listed as part of the scope of delivery. Tender text: The TÜV-tested 2-point truss system was developed for exhibition stand construction, shopfitting and smaller event structures. It offers high stability with low dead weight and reduced transport volume. Technical data: Parameter | Details System | F32, 2-point Length | 200 cm Chord tube / main tube | 50 × 2 mm Bracing / diagonal braces | 20 × 2 mm Material | Aluminium EN AW-6082 T6 Outer dimension at the edge | 29 cm Weight | approx. 4.60 kg Connection | Conical connectors; according to the technical specifications included in the scope of delivery, according to the description available upon request Testing | TÜV-certified according to EN 1090-1/3 Load values (examples): The load-bearing capacity depends primarily on the span and the distribution of the load. For a setup with two support points, the following guideline values apply: 4 m span: central single load of up to 439 kg. 5 m span: central single load of up to 349 kg. Maximum span in the grid: up to 10 m possible.

Specifications
