Description

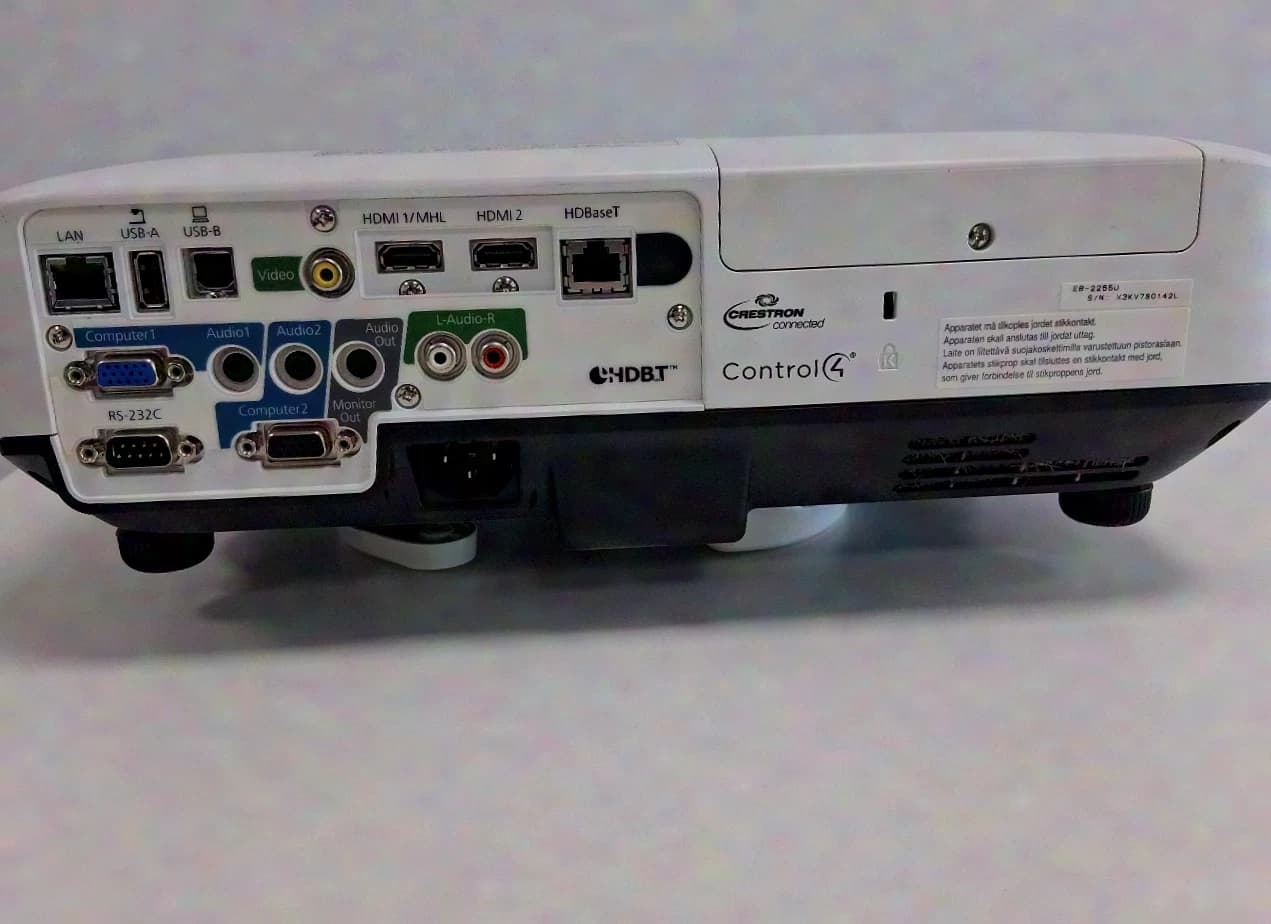

The device operates with 3LCD technology and an RGB liquid-crystal shutter. LCD panel 0.76 inch, D10 Colour brightness 5,500 lumens; 3,800 lumens in energy-saving mode according to IDMS15.4 White brightness 5,500 lumens; 3,800 lumens in Economy mode according to ISO 21118:2012 Resolution WUXGA Resolution enhancement Full HD Aspect ratio 16:10 Contrast 15,000 : 1 Light source Lamp Lamp 300 W, operating life of up to 5,000 hours or up to 10,000 hours in Eco mode Keystone correction Automatically vertical up to ±30° and horizontal up to ±20° Video processing 10 bit Vertical 2D image refresh rate 200–240 Hz Colour reproduction Up to 1.07 billion colours Projection ratio 1.38–2.28 : 1 Zoom Manual, 1- to 1.6-fold Lens Optical lens Image size 50–300 inches Projection distance in wide-angle range 1.5 m with a 50-inch projection surface Projection distance in telephoto range 9 m with a 300-inch projection surface Lens aperture F 1.5–2 Focal length 23–38.4 mm Focusing Manual Offset 10 : 1 USB display function 3-in-1 support for image, mouse and sound Connections USB 2.0-A, USB 2.0, RS-232C, Ethernet 100 Base-T/10 Base-T, 2 VGA inputs, VGA output, 2 HDMI inputs, composite input, 2 RGB inputs, RGB output, HDBaseT, Miracast, MHL, jack plug as well as 2 jack sockets, WLAN b/g/g 25 GHz and wireless LAN according to IEEE 802.11a/b/g/n/ac Connection with smartphones Ad-hoc or infrastructure mode Security functions Kensington lock, Security Bar, control-panel lock, password protection, padlock, WLAN lock, WLAN security function and password protection 2D colour modes Dynamic, Cinema, Presentation, sRGB, Blackboard and DICOM SIM Features AV mute, automatic power-on, automatic input selection, automatic keystone correction, integrated speaker, CEC support, instant power-on and power-off, compatibility with document cameras, Screen Fit, freeze function, Gesture Presenter, home screen, JPEG viewer, extended lamp life, MHL audio/video interface, network administration, OSD copy function, PC-free operation, iProjection app for Chromebook, Quick Corner, screen-content mirroring, slideshow, split screen, WLAN support and iProjection app Colour selection Blackboard, Dynamic, Photo, Presentation, sRGB and DICOM SIM Control Support for AMX, Crestron via network and Control4 Power consumption 425 W in normal Peak mode, 323 W in Eco Peak mode and 0.5 W in energy-saving standby Mains voltage AC 220–240 V, 50–60 Hz Dimensions 377 × 291 × 110 mm (width × depth × height) Weight 4.7 kg Operating noise 39 dB(A) in Standard mode and 29 dB(A) in Economy mode Temperature range Operation: 5–40 °C; storage: –10–60 °C Humidity Operation: 20–80 %; storage: 10–90 % Supplied software EasyMP Monitor and EasyMP Multi PC Projection Accessories HDBaseT transmitter and textile carrying bag Speakers 16 W Suitable rooms and areas of application Conference rooms, large meeting rooms and auditoriums Installation Ceiling mounting or tabletop operation Colour White
