Description

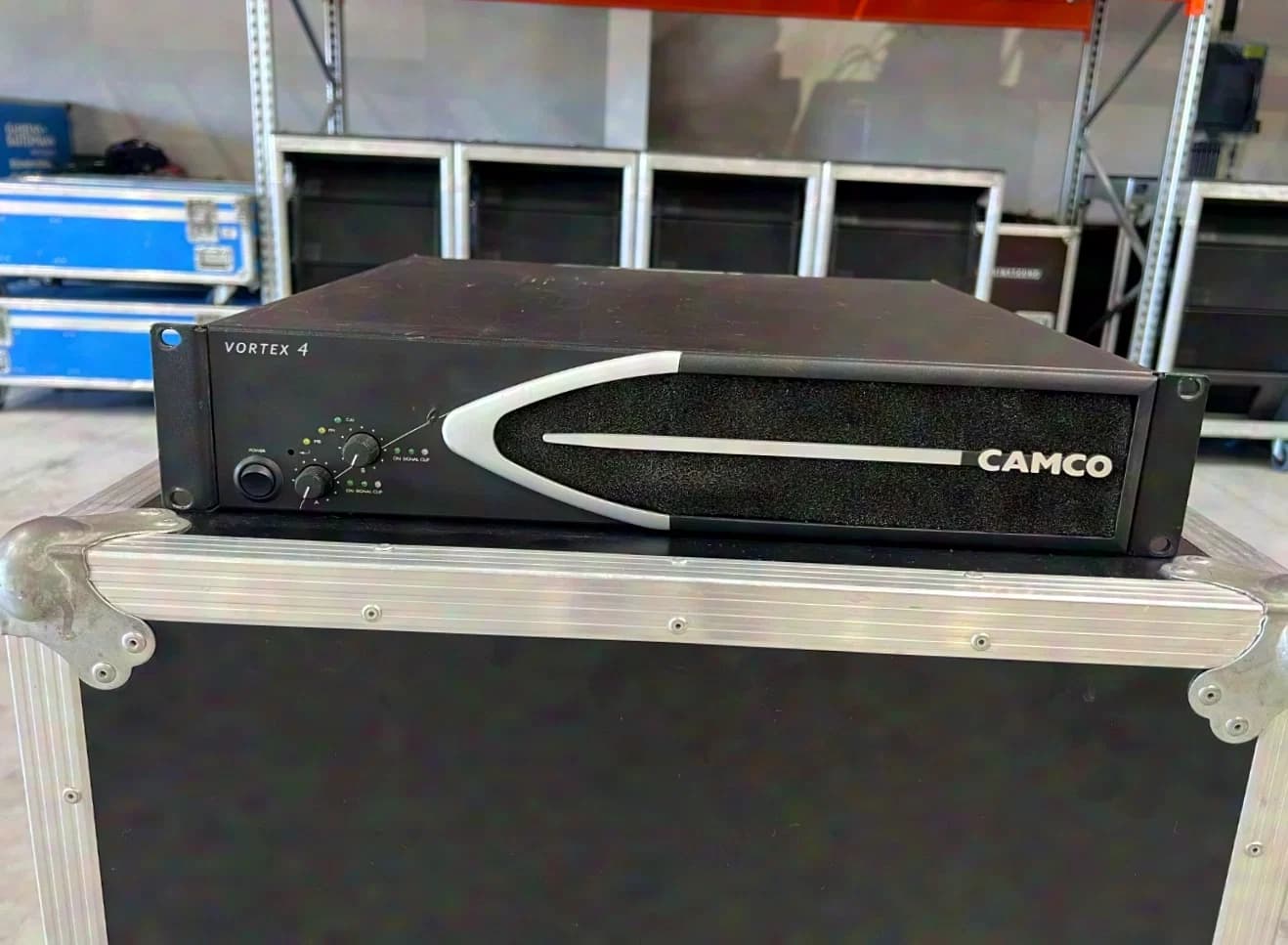

Precision, natural sound reproduction and substantial power are the defining features of this series. Every detail of the audio design is focused on maintaining signal integrity and delivering transparent performance. **Power Output — Stereo:** - 2 × 1300 W at 8 Ohms - 2 × 2100 W at 4 Ohms - 2 × 2300 W at 2 Ohms **Power Output — Bridge Mono:** - 1 × 4200 W at 8 Ohms - 1 × 6000 W at 4 Ohms The amplifier combines a compact, lightweight enclosure with high output performance, very low distortion, an excellent signal-to-noise ratio and a comprehensive set of intelligent protection systems. Its design unites proven classic circuit solutions with a modern switched-mode power supply and a specially developed microprocessor controller. This allows the circuitry to operate at its full potential while remaining safely below critical limits. - Maximum continuous power into 4 Ohms, 2-channel, 1% THD: 2259 W - Peak reserve at 4 Ohms: 2964 W - Gain: 26 / 32 / 38 dB - Dynamic range, unweighted: 113 dB - Dynamic range, A-weighted: 115 dB - Dynamic range referenced to pulse output power at 18 dB crest factor - Remote control option: CAI - Weight / height: 12.4 kg / 2 RU ### Pure Sonic Performance Careful circuit design eliminates potential sources of sound degradation from the outset. The result is precise, transparent audio reproduction, supported by exceptionally low distortion figures and a high signal-to-noise ratio. ### Flexible Power and Application The flexible power architecture allows the amplifier to adapt to different applications and loudspeaker configurations. It provides a substantial power reserve, stable operation with loads down to 1 Ohm, and support for Stereo, Bridge Mono and Parallel Mono modes. ### Designed for Touring and More With a weight of only 12.4 kg, the 2 RU chassis is designed to meet the requirements of professional touring use while maintaining a high level of reliability. All dynamic protection circuits follow the “Audio-at-all times” philosophy, helping preserve signal transmission during operation. ### Remote Control The remote-control system provides extensive flexibility for applications ranging from FOH positions to a central control room. Control and monitoring of operation are available as standard features. ### Optional DSP and Audio Network All amplifiers in the series can be expanded with advanced controller modules, turning the unit into a complete loudspeaker management system. Network integration is available through EtherSound or CobraNet. Stand-alone network modules as well as combined DSP and network modules can be used.

Specifications
