Description

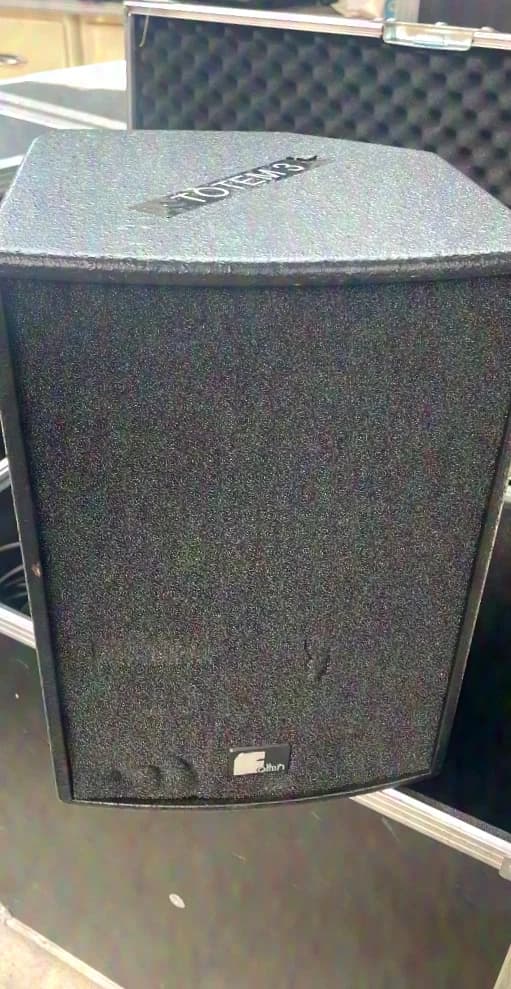

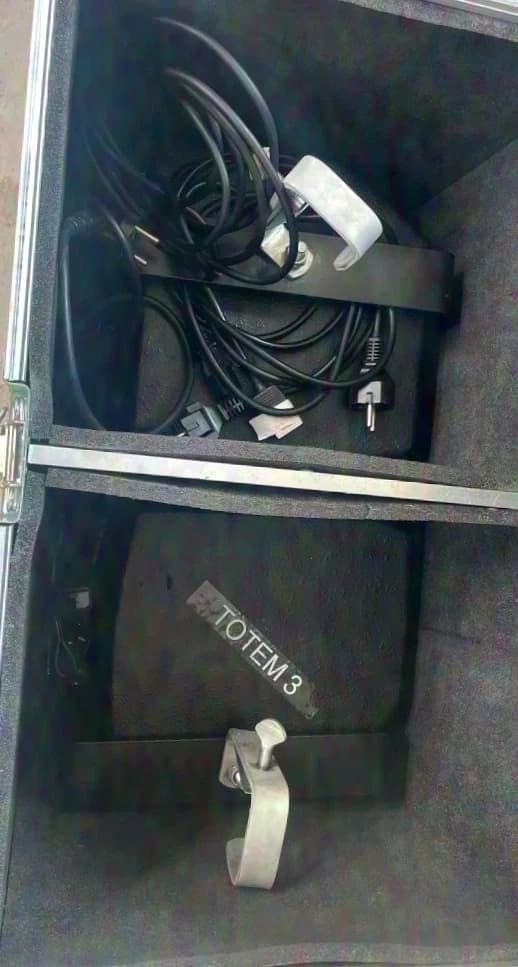

Price for 2 units including transport case. Compact active 2-way bass-reflex system with integrated 2-channel mixer and processor-controlled 100-W-Class-AB amplifier. The FP-Media was developed for professional speech and music reproduction and, thanks to its short setup time, is suitable for both mobile and permanently installed applications – including AV, conference and presentation events. The system features an 8" cone loudspeaker and a 1" compression driver with short horn. The frequency response ranges from 70 Hz to 20 kHz, and the nominal dispersion angle is 100° x 100°. With a maximum sound pressure level of 120 dB at 1 m, the loudspeaker provides clear reproduction, very good speech intelligibility and high feedback resistance. The integrated mixer provides a balanced microphone input via a 3-pin XLR socket with 15-V phantom power, a 6.3-mm line input and two Cinch sockets, which can be used as a stereo input with mono sum. A 2-band tone control for bass and treble using the shelving method and a ground-lift switch are also included. In addition, an external balanced microphone input with 1 kOhm and a line input with 10 kOhm are available. The output is provided as a 6.3-mm jack with line level and 600 Ohm. The integrated processor control includes a limiter with Autosubsonic function and reliably protects the system against overload. The mains connection is via an IEC appliance inlet at 230 V AC; a 1.25 A T fuse in the 5 x 20 mm format is used. Thanks to the asymmetrical cabinet with a 55° monitor angle, the speaker can also be used as an active monitor system. For mounting, it features an integrated 36-mm speaker stand socket and two M8 threaded inserts for the SHM-1 tripod fork. The cabinet is made of birch plywood, has plastic feet and a recessed carrying handle. Black textured paint protects the surface. A sturdy metal protective grille with acoustic foam in the cabinet color protects the front from mechanical impact. The transport case enables safe transport of the set; a carrying bag is also available as an accessory. Technical data Electroacoustic characteristics Acoustic design: active loudspeaker system, 2-way bass-reflex Components: 8"/1" compression driver with short horn Operating mode: active, Class-AB Sound pressure level (@ 1 m, peak): 120 dB Frequency response: 70 Hz–20 kHz Nominal dispersion angle (h x v): 100° x 100° Electronic characteristics Amplifier power (music): 100 W Tone control: bass / treble, shelving Processor functions: limiter with Autosubsonic Connections Microphone input: 3-pin XLR socket Line inputs: 1 x 6.3-mm jack Line input: 2 x Cinch sockets, stereo as mono sum Mixer inputs: 1 x external microphone, balanced, 1 kOhm; 1 x line, 10 kOhm; ground-lift switch Phantom power: 15 V Output: 1 x 6.3-mm jack, line level, 600 Ohm Mains connection 230 V AC: IEC appliance inlet Fuse: 1.25 A T, 5 x 20 mm Features Cabinet: birch plywood, plastic feet, carrying handle, 55° monitor angle Speaker stand socket: integrated, 36 mm Mounting points: 2 x M8 thread for SHM-1 tripod fork Finish: black textured paint Front design: acoustic foam in cabinet color Dimensions (W x H x D): 239 x 341 x 251 mm Weight: 9 kg
