Description

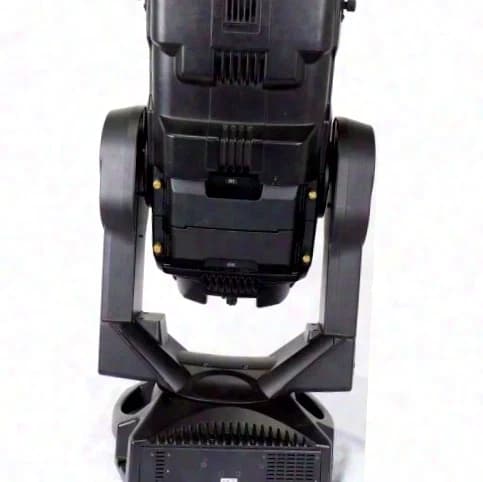

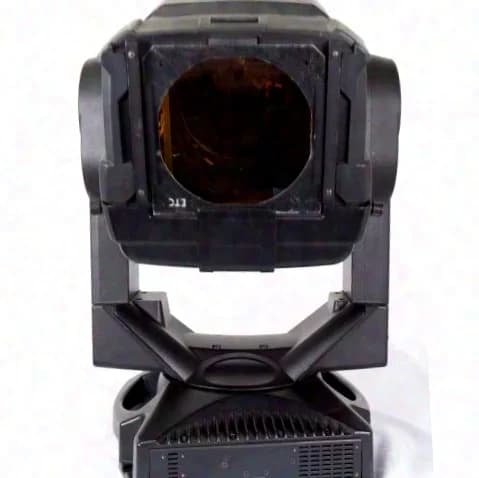

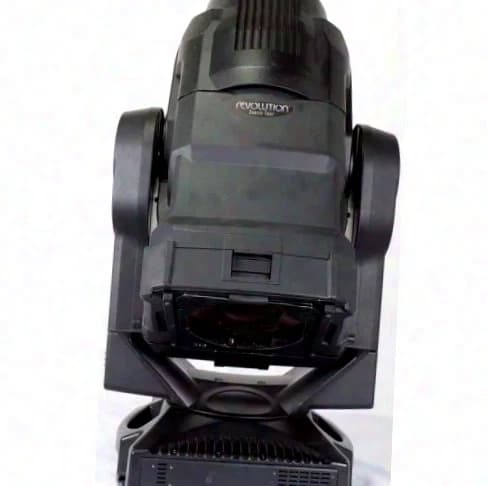

A high-performance automated ellipsoidal fixture based on the Source Four® Zoom™ platform, featuring motorized pan, tilt, zoom and integrated dimming. It also includes a 24-frame gel scroller based on Wybron’s renowned Coloram® technology, combined with QuietDrive™ motor control for particularly quiet operation. The fixture is supplied with a Wybron Scroller Module. A spare lamp is included. Flightcase is not included. Two module bays allow the installation of any two of four optional beam-control modules. Modules can be fitted without tools or dismantling the fixture. Automatic module recognition eliminates the need for patching or internal configuration, providing genuine plug-and-play operation. Features Iris module: 18-leaf construction Static wheel module: three positions plus open; compatible with glass or steel M-size gobos and filters Rotating wheel module: three positions plus open, variable-speed rotation in both directions, high-resolution indexing; accepts glass or steel M-size gobos and filters Shutter module: four shutters arranged across four planes, each with a 90º movement range 750W, 77V QXL lamp: combines the proven properties of a 750W HPL lamp with higher lumen output and patented quarter-turn insertion Integrated pulse-width-modulated dimmer Auto-ranging 100–240V power supply and built-in dimming for convenient use worldwide Integrated 24-frame colour scroller with a practical quick-change gel-string cartridge 540º pan / 270º tilt 15º–35º zoom range Automated adjustment from crisp to soft focus Internal media frame for diffusion or other selected media Two plug-and-play bays for optional beam-control modules Durable die-cast aluminium housing Can be suspended and operated in any orientation For additional information, please visit the web shop: https://www.salesall.eu/nl/tweedehands/lighting/used-etc-s4-revolution-wybron-scroller-module

Specifications
