Description

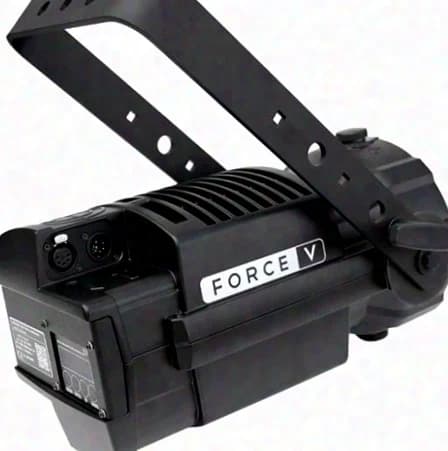

BB&S Lighting Force V+ LED Ellipsoidal Light Engine – Overview The 3200K Force V LED light engine is designed for use with third-party optics. It allows a conventional tungsten-halogen ellipsoidal fixture to be converted to LED in approximately one minute by using the existing optics. With a CRI of 90+, the unit provides precise color reproduction. Its hybrid cooling system combines a heat sink with a quiet fan, while DMX control enables smooth, flicker-free dimming from 0 to 100% in either 8-bit or 16-bit mode. The system is rated at 150W, operates from 100–240 VAC mains power and consumes only 137W, helping reduce operating costs and accelerate the return on investment. powerCON input and output connectors make it possible to link up to 10 fixtures in a daisy-chain configuration. Included: ETC Zoom Lens Tube 25°–50° and 1/2 Case Benefits and Attributes Convert existing optics to LED in approximately one minute Reduced power consumption Quiet operation Smooth, flicker-free dimming across the entire range in 8- or 16-bit mode Excellent shadow definition Microprocessor-controlled current management for lower power use and extended LED service life High-speed strobe function Longer service life for color gels powerCON In/Out connections for end-to-end power linking of up to 10 fixtures DMX 512 with 5-pin In/Out connectors for daisy chaining Photometrics Beam angle: 19°, Center Beam, Standard Lens 908 fc / 9,765 lux @ 10' (3.0 m) 172 fc / 1,851 @ 23' (7.0 m) 43 fc / 463 @ 39.4' (12 m) Beam angle: 36°, Center Beam, Standard Lens 241 fc / 2,589 lux @ 10' (3.0 m) 46 fc / 491 @ 23' (7.0 m) 11 fc / 123 @ 39.4' (12 m) Beam angle: 50°, Center Beam, Standard Lens 126 fc / 1,350 lux @ 10' (3.0 m) 24 fc / 256 @ 23' (7.0 m) 6.0 fc / 64 @ 39.4' (12 m)

Specifications
