Description

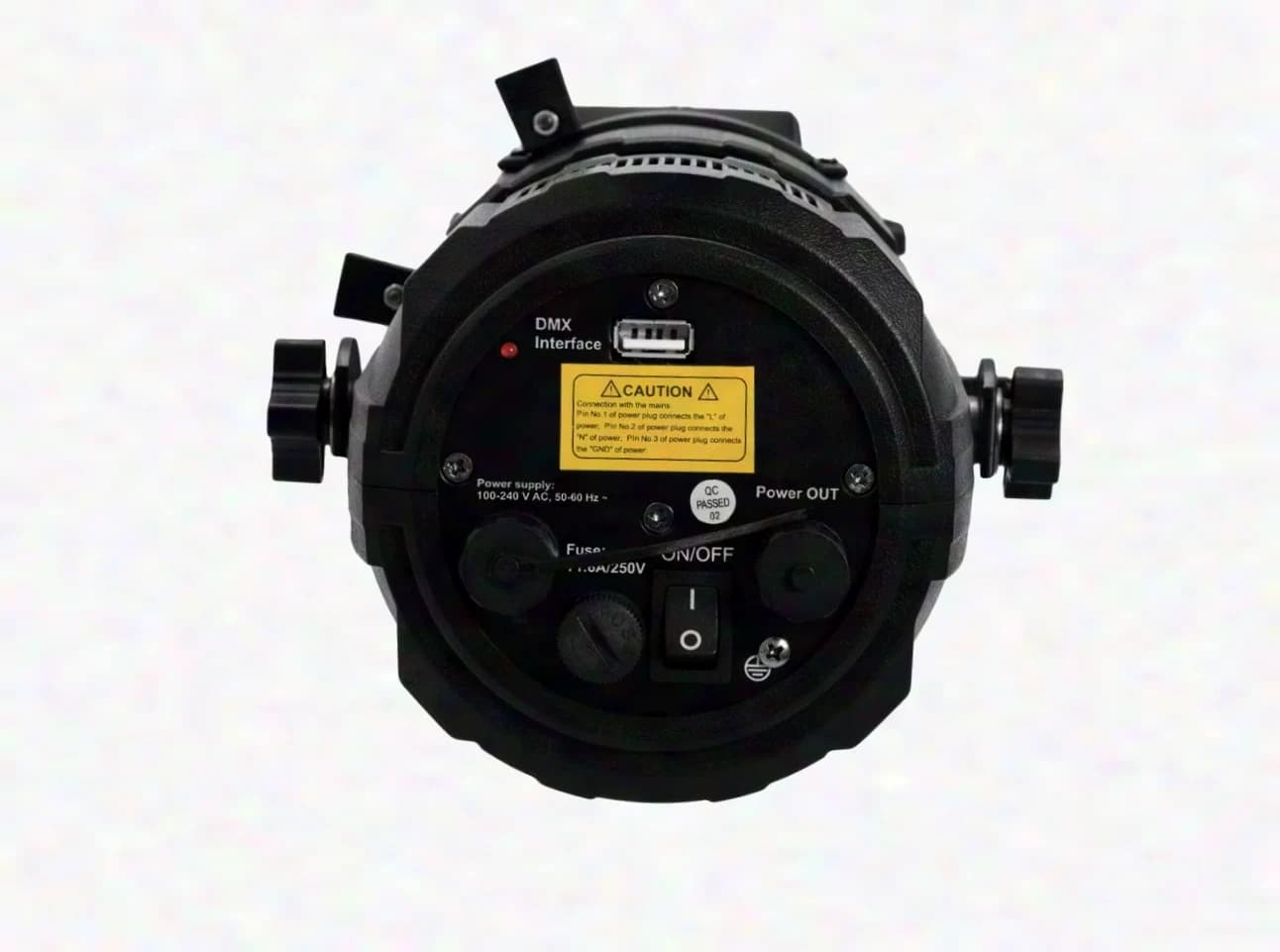

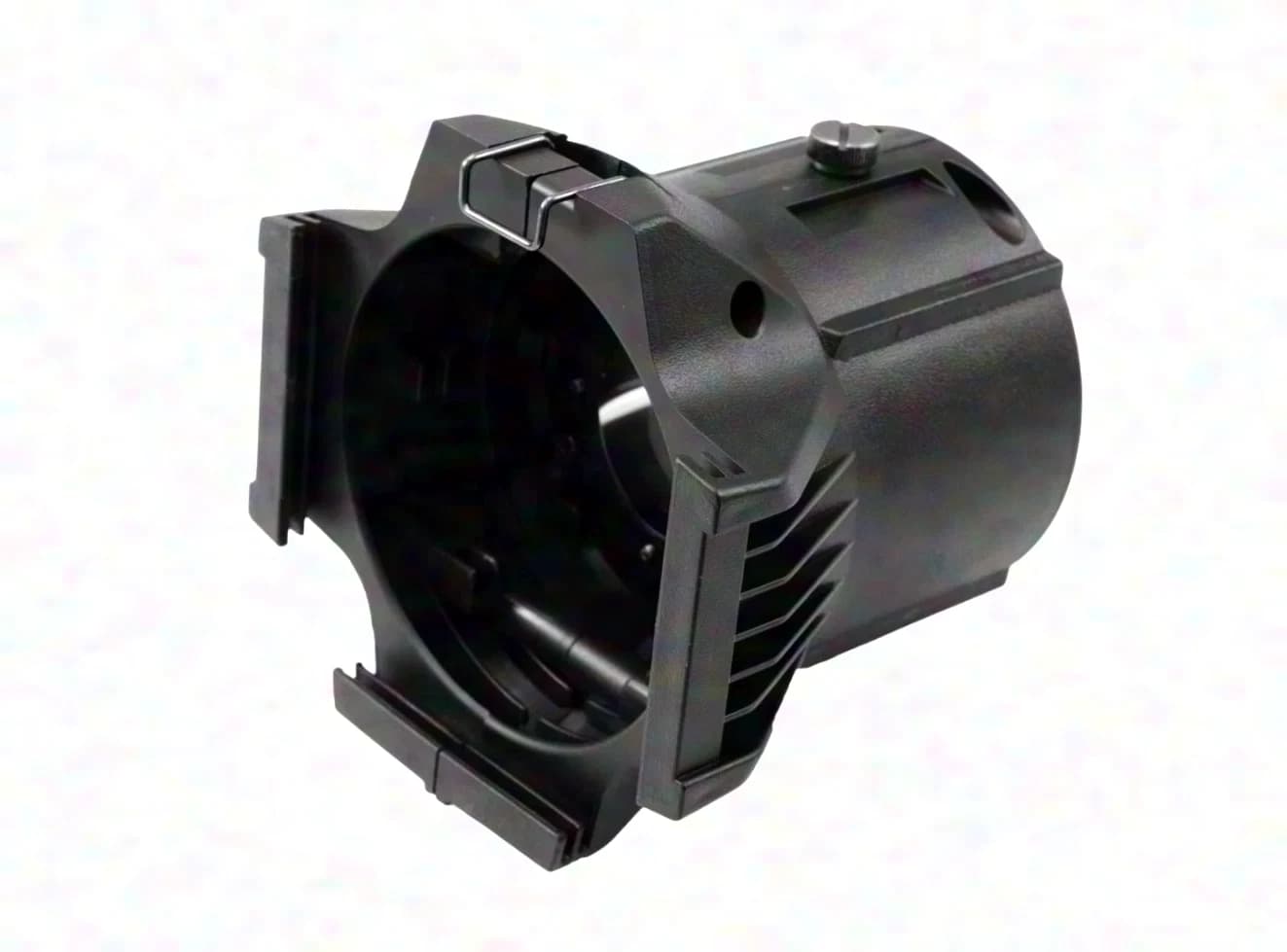

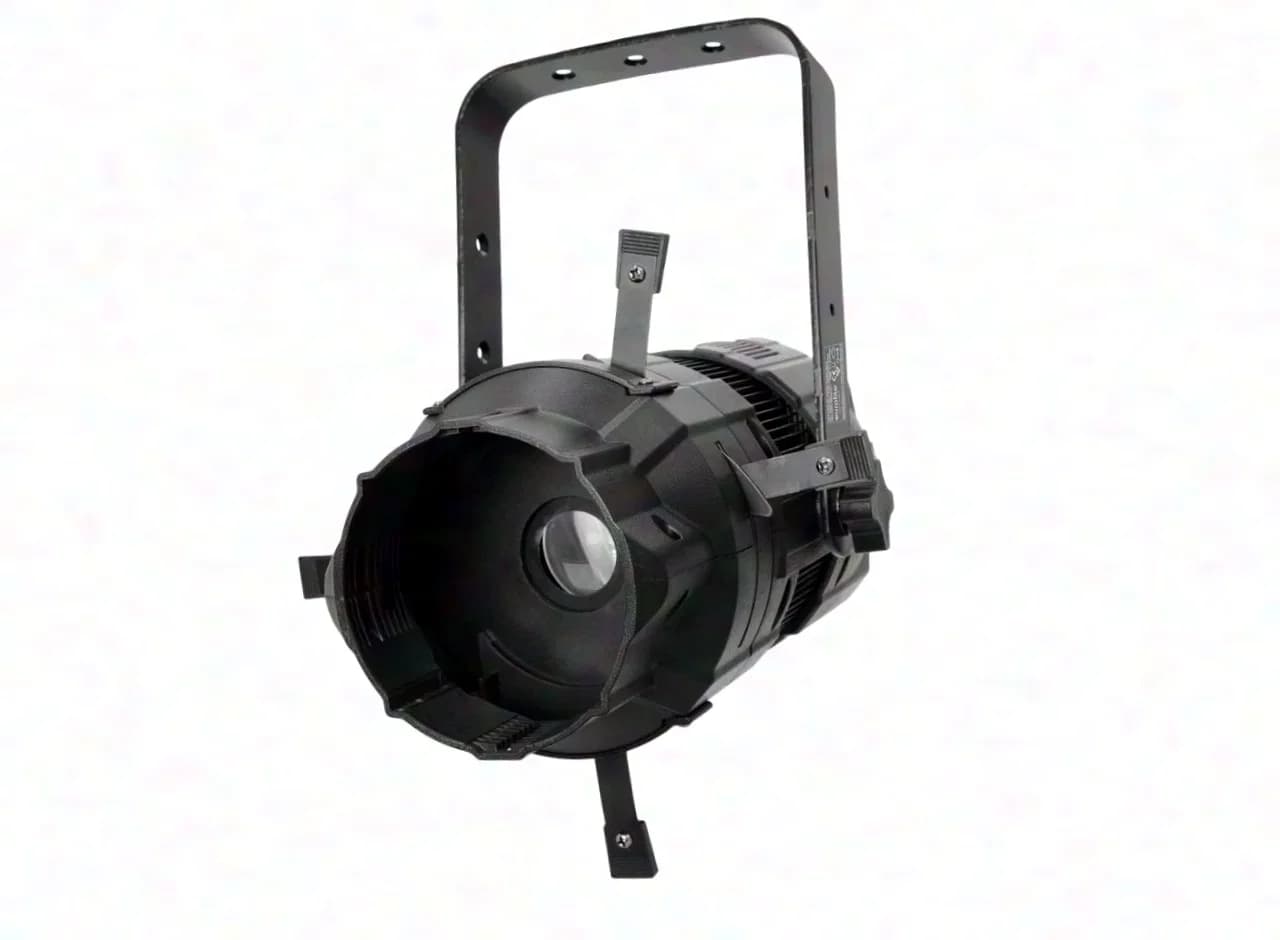

Compact stage spotlight with a modularly constructed system and a 50-W-COB-LED in warm white. The color rendering index is CRI 91 Ra, and the color temperature is 3000 K. The offer includes the DMX module as well as several lens tubes: Three units are supplied with LensTubes 19° + 36°, one unit with 26° + 50° and two further units with 19° + 36°. The units come from demonstrations and trade fair stock. The flexible modular system allows application-specific configurations. The projection can be precisely shaped using four framing shutters. Dimmer, strobe effect and master/slave operation can be used via the optional DMX interface. ¨ Dimmable ¨ 1 x 50 W COB-LED (chip-on-board), warm white ¨ Fan cooling ¨ Operation via the on/off switch on the unit ¨ Master/slave function ¨ Already preprogrammed for LED PC-Control 512, Light Captain and Light´J ¨ Flicker-free projection ¨ Standard beam angle 19° ¨ Very good color rendering ¨ Includes mounting bracket ¨ Particularly quiet operation ¨ Suitable for trade fair and shopfitting, installations, theaters and rental companies ¨ Can be mounted suspended or on a stand Scope of delivery ¨ 1 x spotlight ¨ 1 x operating instructions ¨ 1 x power cable/mains cable ¨ 1 x filter frame ¨ 1 x gobo holder ¨ 1 x power termination plug The power supply is provided at 100–240 V AC at 50/60 Hz. The total connected load is 55 W, and the protection rating is IP20. For the mains connection, a 3-pin screw connector (M) for IP power connection cables with protective-contact plug is provided; the corresponding cable is included. In addition, a 3-pin screw connector (W) is available as a power output. The light source is a dimmable LED lamp with 1 x 50 W COB technology. Cooling is ensured by a fan. Control is possible directly via the unit switch and in master/slave mode. The LED PC-Control 512, Light Captain and Light´J preprogrammed settings are supported. The projection is flicker-free. The beam angle is 19°; lenses with 26°, 36° and 50° are alternatively available. According to the specification, the illuminance at warm white is 0 lx at a distance of 1 m, 1669 lx at 3 m and 432 lx at 6 m. Color temperature: 3000 K Color rendering index: CRI 91 Ra Housing color: Black Mounting system: Mounting bracket Dimensions: 30.5 cm length, 13.4 cm width, 23.8 cm height Weight: 1.97 kg Noise classification: Class 1 – very low noise emission, also suitable for noise-sensitive environments Legal specifications Special product: Not intended for room lighting in private households Intended use: Lighting for show effects The sale is exclusively to commercial customers and only upon presentation of a business registration. If you have any questions about this offer, you can reach us via the contact details provided by email or telephone. Payment options for existing and new customers: Payment in advance or cash payment upon collection SEPA-B2B direct debit for regular customers with an active customer account No PayPal and no credit card payment The sale is exclusively to commercial buyers as part of a pure B2B transaction and excludes any warranty, unless a functional guarantee has been expressly given. The units offered are predominantly display items, trade fair units, demonstration units or returns. The outer cartons may be damaged or have labels attached. As a rule, the units have only a few or hardly any operating hours. There are no safety-related defects or functional restrictions. Only signs of cosmetic use, minor damage to the housing and damaged or missing shipping cartons are possible. If special restrictions apply to individual units, these will be expressly stated. If the offer relates to a complete package with several identical units or different items, the total amount shown applies exclusively as a package price. It is not possible to calculate out individual components, show separate prices or transfer a discount compared with the recommended retail price to individual units. Should a unit from a package or set unexpectedly not be functional, replacement will be provided exclusively for the individual unit concerned. Replacement of the entire package is excluded. Shipping costs range between 6.90 EUR and 79.00 EUR within Germany and to Austria, depending on volume and weight. Other destination countries are possible upon request. Shipping is carried out by parcel service or freight forwarding. Collection and inspection of the goods in Waldbüttelbrunn are possible by prior appointment during business hours. Subject to prior sale Contact: Frank Kraus 0931/ 4061 673 [email protected]

Specifications
