Description

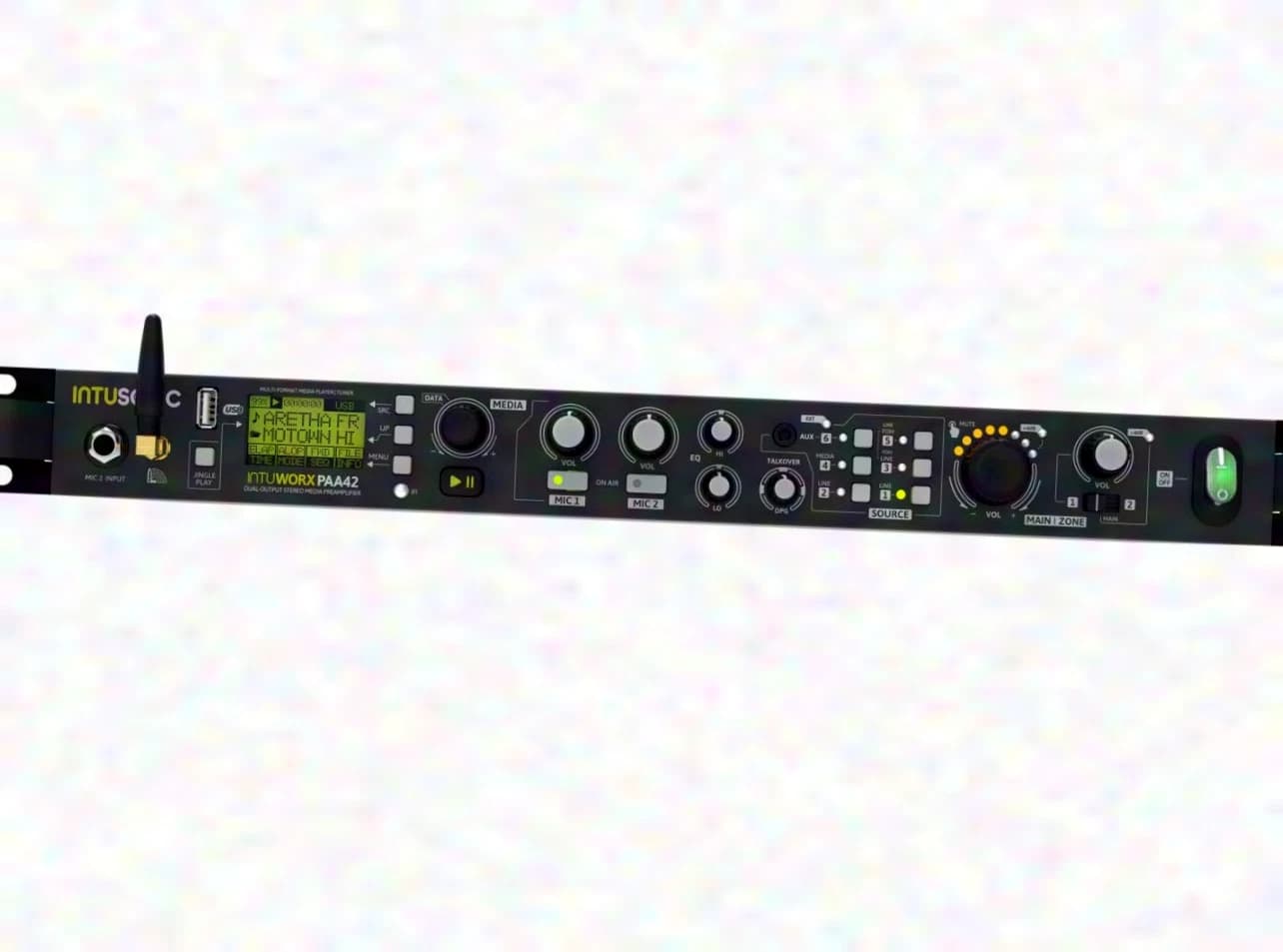

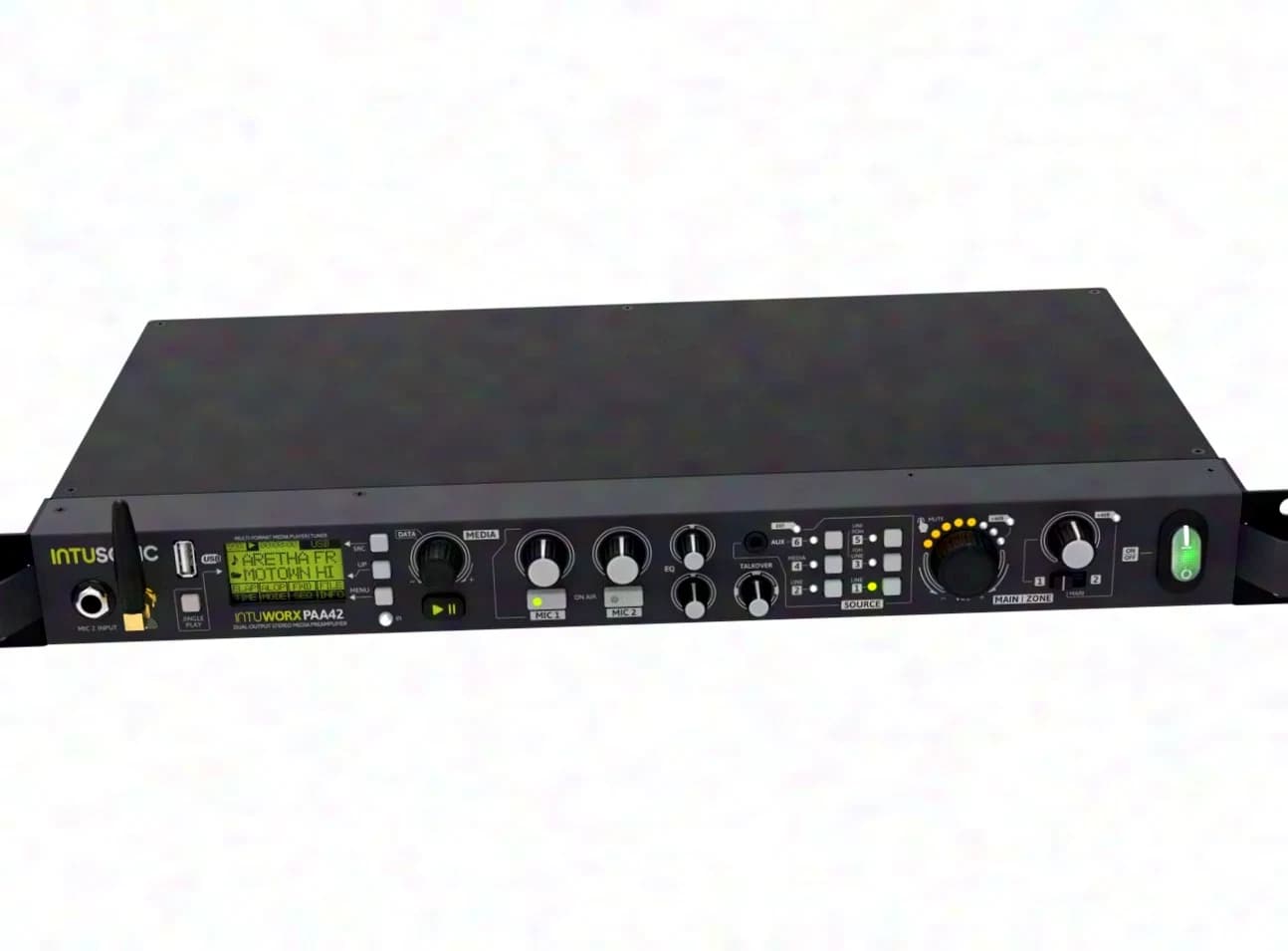

GTIN: 5060502923523 Article number: 12604186 19" preamplifier in 48.3-cm rack format with integrated audio player, DAB+, FM radio, wireless audio connectivity, IR remote control and optional control via RS 485. The device is suitable, among other things, for permanent installations in restaurants, bars, hotels and comparable areas of application. ¨ Operation or control via IR remote control, RS 485 or LINKOUSTIC 4.2 Wireless Audio Link ¨ Wireless audio connection in the globally registration- and licence-free 2.4-GHz band ¨ LCD display ¨ Suitable for installation in 19" racks (48.3 cm) ¨ Housing for tabletop placement ¨ Additional product information is available in the datasheet under “Downloads”. Scope of delivery ¨ 1 x instruction manual, 1 x device, 1 x mains cable/power cable, 1 x plug, 4 x foot, 1 x antenna, 1 x adapter, 1 x remote control, 1 x battery Power supply: 115/230 V AC, 50/60 Hz Total connected load: maximum 12 W Protection rating: IP20 Protection class: SK I Power connection: IEC appliance connector (M) with supplied power cable and protective contact plug Device fuse: replaceable fuse 5 x 20 mm, T 0.5 A Frequency range: 20–20,000 Hz Signal-to-noise ratio: >102 dB Total harmonic distortion: <0.015 % at 1 kHz Control: IR remote control, RS 485 and LINKOUSTIC 4.2 Wireless Audio Link Bluetooth: Version 5.0 Bluetooth device name: LINKOUSTIC Audio player: USB and Bluetooth, DAB+ as well as FM radio Frequency band: 2.4 GHz Crosstalk attenuation: >63 dB Display: LCD Controls: power switch, volume control, adjustable talkover function and phantom power switch Connections: Line input via 3 x stereo RCA Input: Line via 2 x 6.3-mm jack, balanced Input: Microphone via 2 x 6.3-mm jack, balanced Input: Microphone via screw terminal Output: Master via screw terminal Output: Zones via screw terminal Output: Rec. via stereo RCA Mute via screw terminal RS 485 via 1 x RJ-45, panel-mount version Emergency via screw terminal Priority via screw terminal Antenna connections via 2 x SMA, panel-mount version Supported music formats: MP3, WAV, FLAC and APE Suitable storage media: USB devices up to a maximum of 64 GB, FAT32 USB connection: USB 2.0, Type B Colour: Black Housing: 19" rack installation, 48.3 cm; additionally usable as a tabletop housing Dimensions: width 48.3 cm, depth 25 cm, height 4.4 cm Weight: 3.35 kg This offer is intended exclusively for commercial customers. Sales are made only upon presentation of a business registration. If you have any questions, you can contact us by e-mail or telephone using the contact details provided. Payment options for existing and new customers: Payment in advance or cash payment upon collection; SEPA B2B direct debit for regular customers with an active account. PayPal and credit card payment are not possible. Sales are made exclusively to commercial buyers as a pure B2B transaction and with the exclusion of any warranty beyond the assurance of functionality. The devices are predominantly display items, trade fair units, demonstration units or returns from shipping. The packaging may be damaged or covered with stickers. As a rule, the devices have only a few or hardly any operating hours. There are no safety-related defects or functional limitations. Only signs of optical wear, minor damage to the housing and damaged or missing shipping cartons are possible. Any known limitations are expressly stated in the respective offer. If an offer relates to a complete package with several identical items or to a set of different products, the stated total amount applies as the package price. A separate price breakdown, deduction of individual components or separate application of the discount in relation to the recommended retail price to individual items is not intended. Should a device from a package or set unexpectedly not be functional, replacement will be provided exclusively for the individual device concerned, not for the complete package. Shipping costs within Germany and to Austria range between 6.90 EUR and 79,- EUR, depending on volume and weight. Shipping to other countries is possible upon request. Delivery is made by parcel service or freight forwarder. Self-collection and inspection of the goods in Waldbüttelbrunn are possible by prior arrangement during business hours. Subject to prior sale. Contact: Frank Kraus 0931/ 4061 673 [email protected]

Specifications
