Description

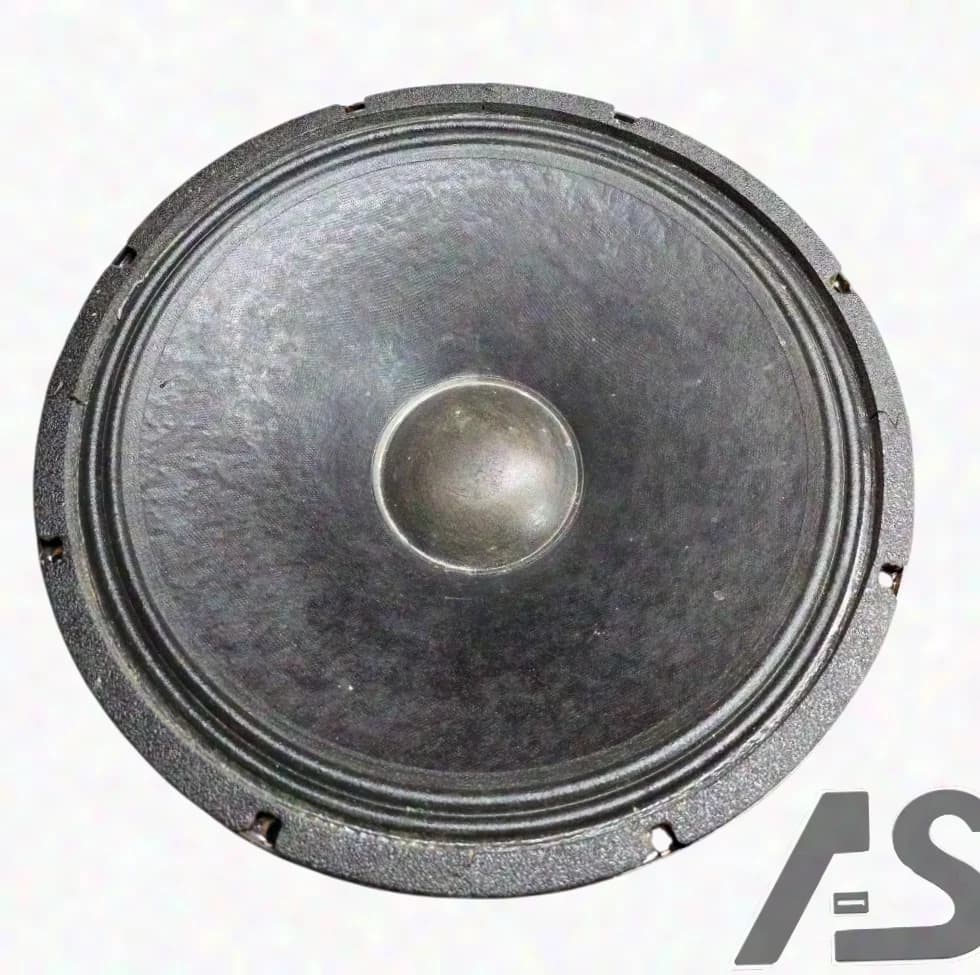

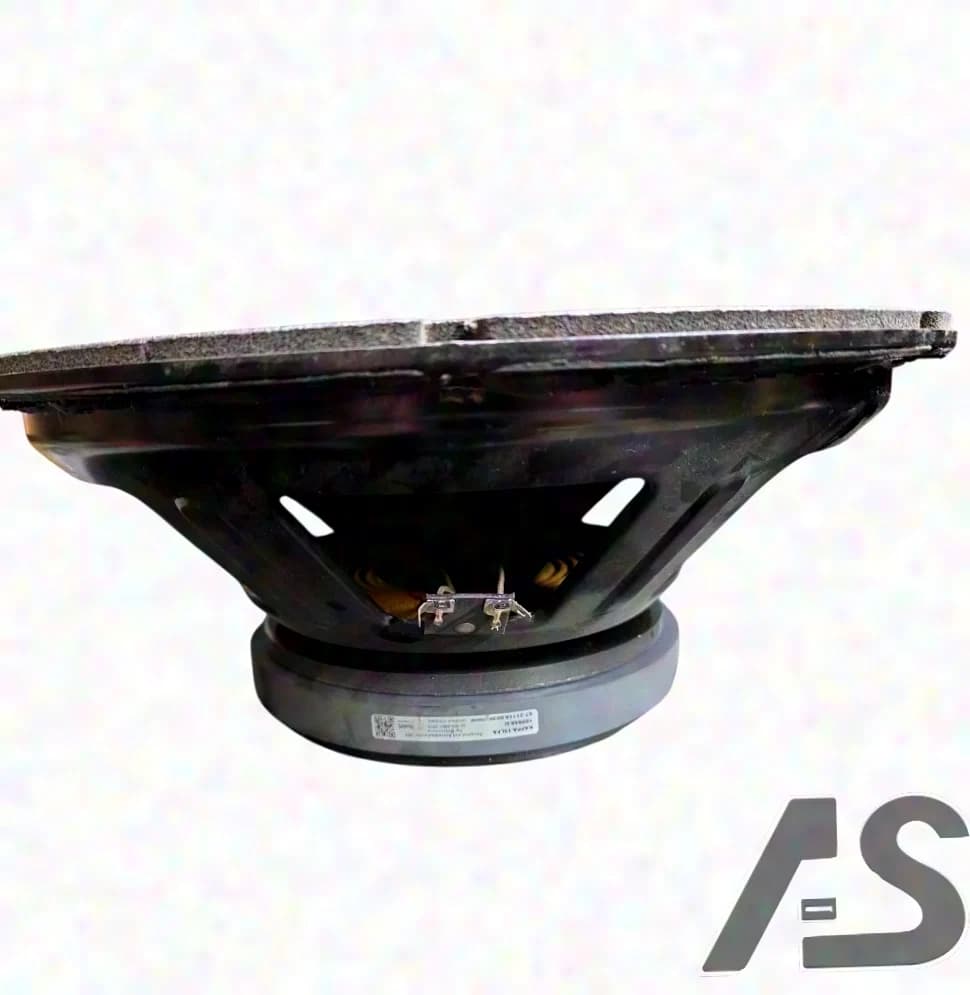

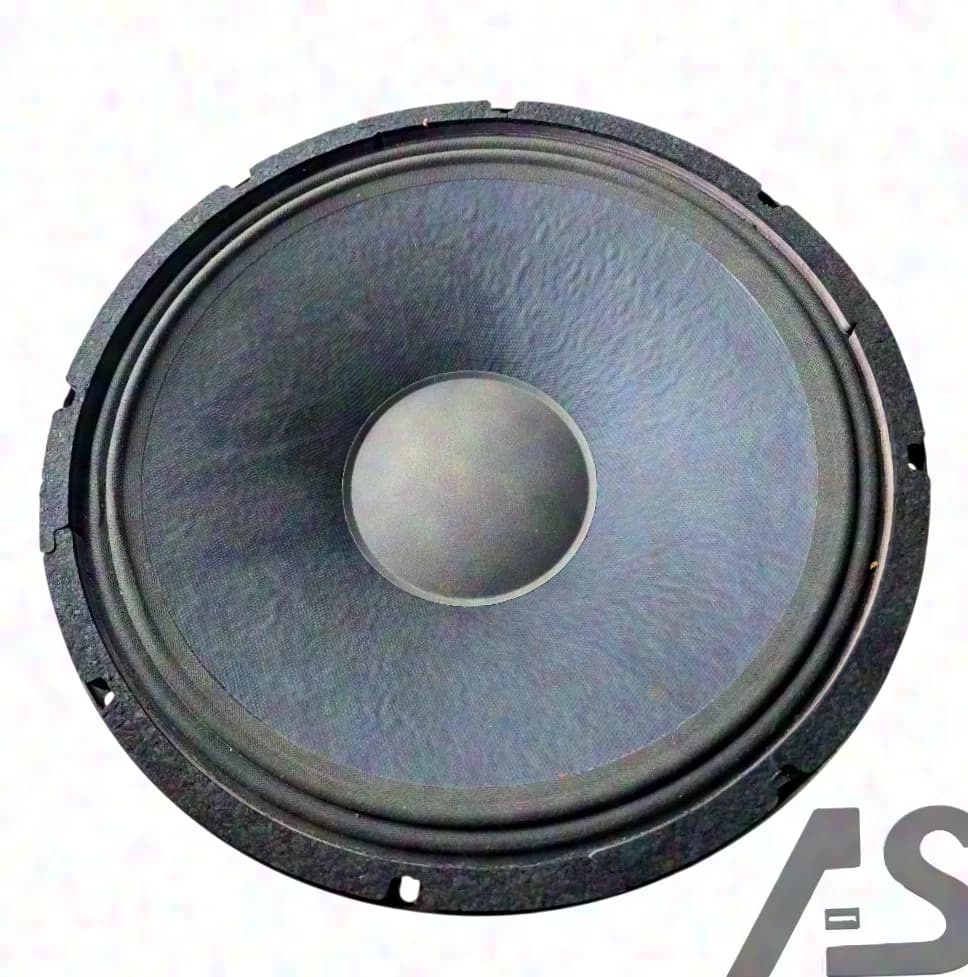

Product description The speaker has been freshly refurbished in our specialist workshop. This powerful 15-inch bass driver is suitable both for PA applications and for use as a guitar or bass speaker. With 600 W RMS, up to 1200 W program power handling and a sensitivity of 99 dB, it delivers powerful and efficient output. The usable frequency range of approximately 45–200 Hz enables clean, controlled bass reproduction with high penetration. Use in a 110-liter bass reflex enclosure is recommended. SPECIFICATION Diameter: 15", 381 mm Impedance: 8 Ohm Power handling: RMS 600 W / Program 1200 W Impregnated and protected against splashing water Resonant frequency: 39 Hz Usable frequency range: 38 Hz–2.7 kHz Sensitivity: 99 dB Voice coil: 3", 76.2 mm THIELE-&-SMALL PARAMETERS Resonant Frequency (fs): 39 Hz DC Resistance (Re): 5.4 Ohm Coil Inductance (Le): 1.27 mH Mechanical Q (Qms): 6.08 Electromagnetic Q (Qes): 0.41 Total Q (Qts): 0.38 Compliance Equivalent Volume (Vas): 159.0 Liter Peak Diaphragm Displacement Volume (Vd): 471 cm³ Mechanical Compliance of Suspension (Cms): 0.15 mm/N BL Product (BL): 18.6 T-M Diaphragm Mass inc. Airload (Mms): 105 g Efficiency Bandwidth Product (EBP): 95 Maximum Linear Excursion (Xmax): 5.5 mm Surface Area of Cone (Sd): 856.3 cm² Maximum Mechanical Limit (Xlim): 10.4 mm Condition & Quality All refurbished or newly reconed speakers are technically inspected, tested and measured in free field. Stock: 5x Refurbished – refurbished 15-inch bass driver, 8 Ohm, impregnated – 160 € per unit 4x Reconed – newly reconed 15-inch bass driver, 8 Ohm – 190 € per unit Service note If you require speaker repairs or a reconing service, we are always happy to assist you.
