Description

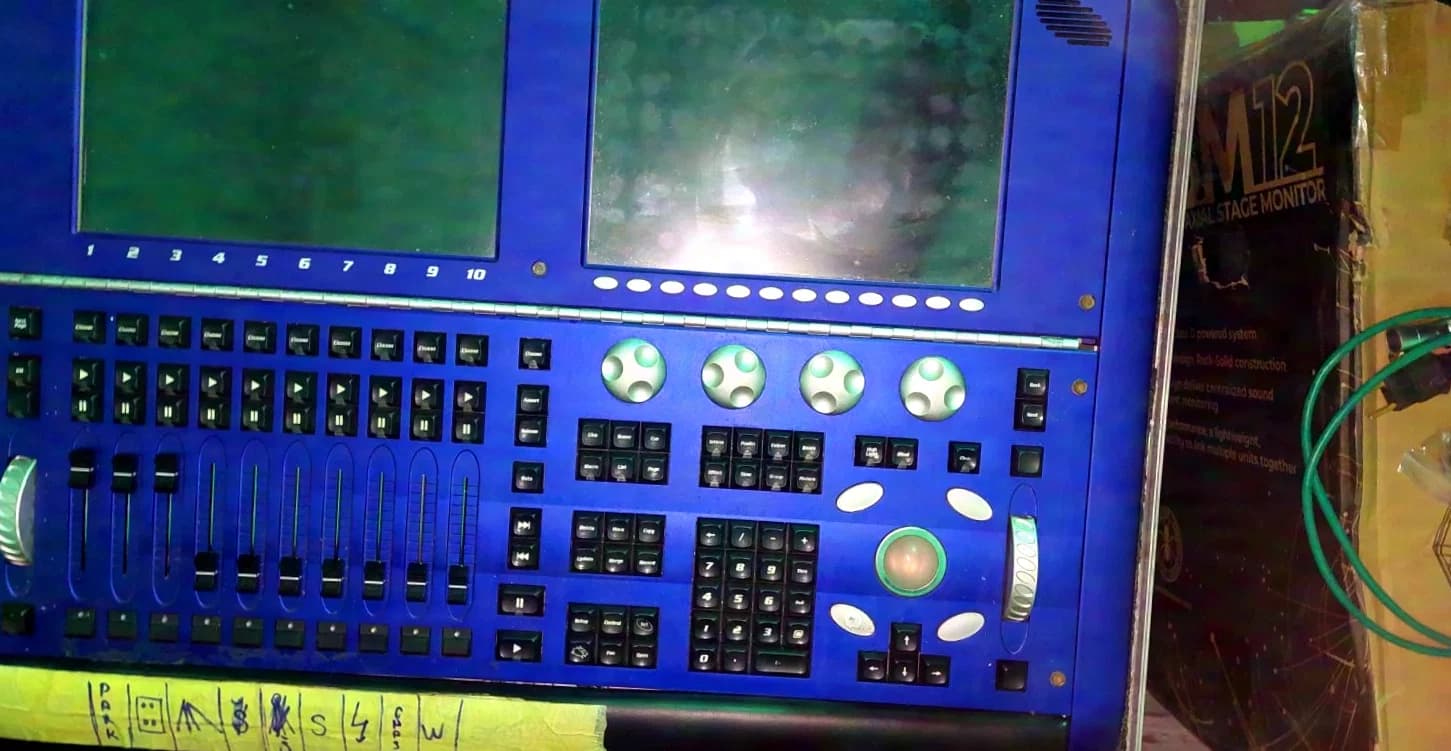

The Whole Hog III combines advanced lighting control with a practical, streamlined console layout for programming conventional, automated and digital lighting equipment. Its design focuses on efficient operation, reduced running costs and expanded creative possibilities. - Two large, high-brightness color touchscreens with adjustable viewing angles - Four-button backlit trackball for cursor and position control - 10 playback faders with Choose, Go, Pause and Flash controls - Purpose-built integrated electronics without a standard computer motherboard - Support for two external VGA/SVGA displays, including touchscreen monitors - Direct integration with several commonly used visualization systems - Virtually silent, fanless operation - Internal hard drive, ZIP drive and rewritable CD-ROM drive - MIDI input and output for MIDI Show Control and MIDI Time Code - Two USB ports for connecting a printer and Wholehog III accessories - Stereo audio line input and output, plus two built-in speakers - Integrated real-time clock - Dimmable desk lights, feedback LEDs and LCD backlighting - Construction designed for straightforward servicing - Auto-ranging power supply for 90–250 VAC - Internal battery protection helps prevent data loss during power failures - Precision-machined aluminum housing with durable, wear-resistant anodized finish - Robust road case included Overall dimensions: 29.92 in (W) × 22.83 in (D) × 4.33 in (H) 760 mm (W) × 580 mm (D) × 110 mm (H) The DP 2000 provides four isolated half-duplex DMX 512 outputs with a total capacity of 2048 channels. Configuration and testing can be carried out locally via the LCD display and control buttons, with dedicated DMX status and test functions. Additional features include: - Remote configuration of all functions - Remote firmware updates via the network - 75 MHz PowerPC processor - 32 MB DRAM and 8 MB FLASH memory - 100Base-TX Fast Ethernet connection - White LED-backlit graphic LCD interface - Comprehensive LED status indication - Auto-ranging 90–250 V AC power input - 1U 19-inch rackmount format - 4.5-inch depth

Specifications
