Description

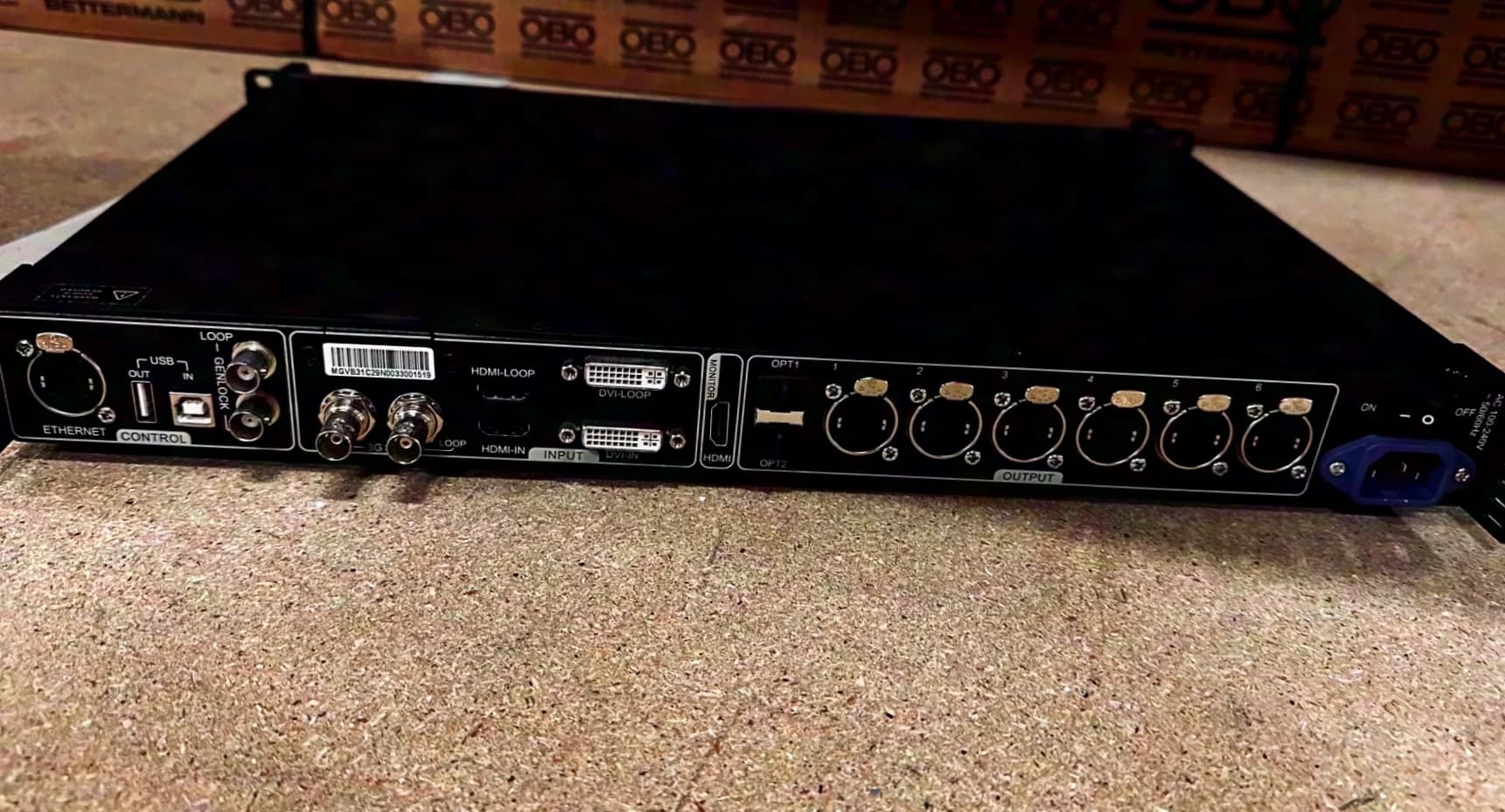

Like-new device for sale. **Features** - Very low latency of less than 1 Frame - Cabinet configuration files can be saved and transferred - Brightness, color, and test patterns can be adjusted directly using the rotary encoder - Full-HD pixel capacity - Color depth of 8, 10, or 12 Bit **Technical specifications** **Inputs** - HDMI 1.4a: 1 - Single-Link-DVI: 1 - 3G-SDI: 1 **Outputs** - HDMI 1.4a Loop: 1 - Single-Link-DVI Loop: 1 - 3G-SDI Loop: 1 **Optical interfaces** - SFP port type: 10G - Number of SFP ports: 2 **Additional functions** - Scaling: not available - GenLock: input and output **Control and programming** - Maximum loading capacity: 2,3 Mpx - Maximum input resolution: width and height freely definable by the user **Electrical data and connections** - Power supply: 100–240 V AC, 50/60 Hz - Power consumption: 20 W - Data inputs: RJ45, USB - Data output: RJ45 **Mechanical specifications** - For flight case/rack: 19" - Rack units: 1 HE - Color: Black - Housing material: Aluminum and metal - Dimensions (W × D × H): 482 × 349 × 50 mm - Weight: 4,6 kg
