Description

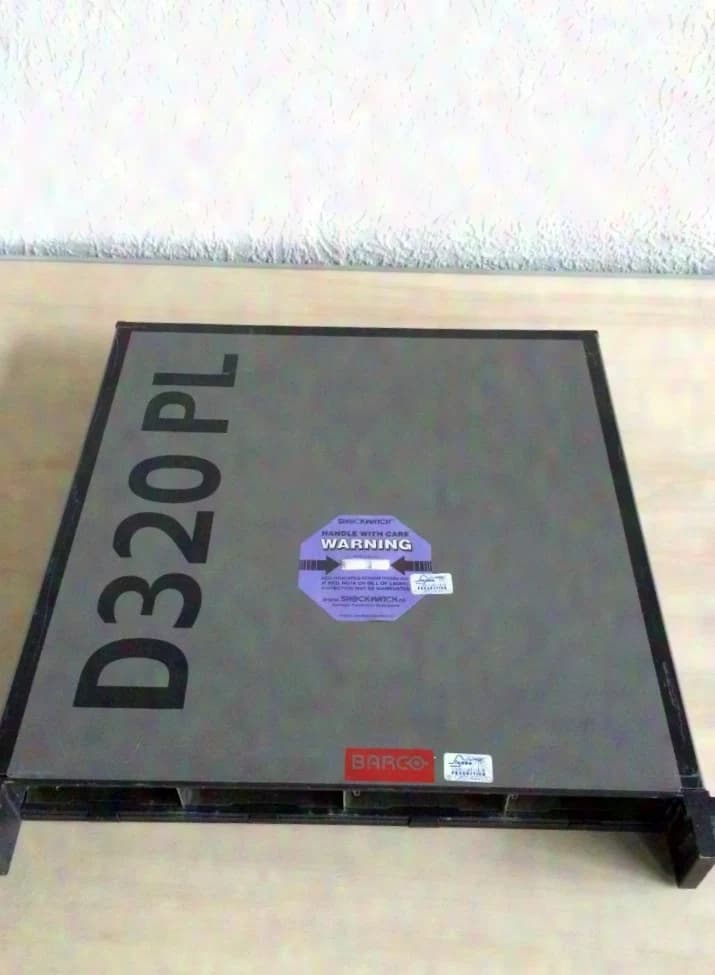

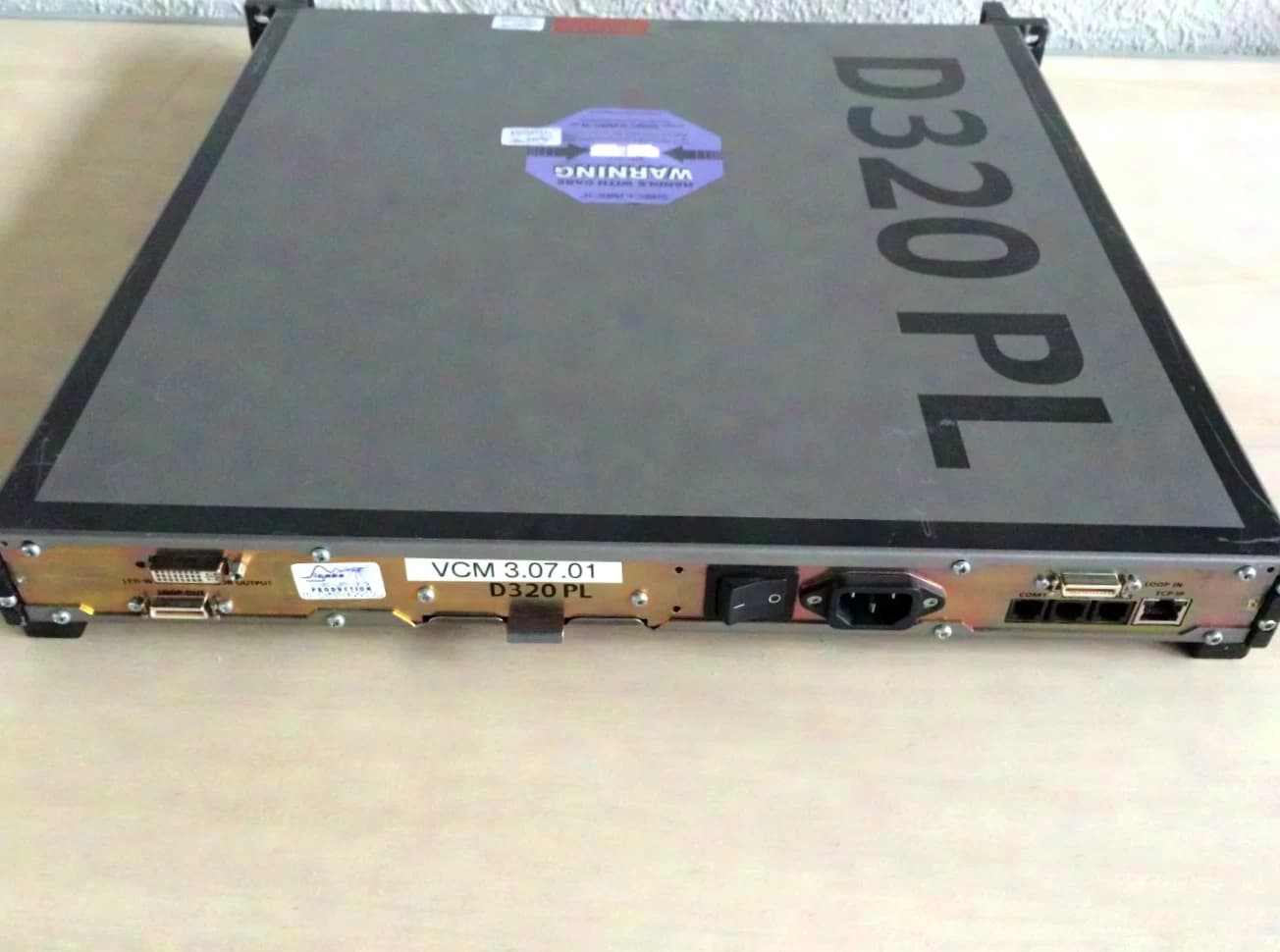

1 x Digitizer D320PL inklusive Flightcase, Input Module auf Anfrage. Insgesamt sind 5 Stück verfügbar. Seamlessly switch between different sources, show several sources simultaneously, overlay them and customize their presentation. Analog and digital outputs enable display control, while the integrated control software covers everything from basic setup and configuration to advanced functions. ### Advanced image processing with exceptional flexibility - Up to 4 sources can be displayed on one screen per unit; several devices can be combined to handle additional sources. - Switch between sources or display video and data signals simultaneously. - Front-accessible input modules housed in a sealed, robust metal enclosure. - Arrange, scale and position every source precisely via the intuitive interface. - Overlay sources with advanced chroma-keying and alpha-blending functions. - Configure the unit with exactly the plug-in inputs required for each application. - Hot-swappable, automatically configured input modules provide maximum flexibility. - High-quality processing of video and data signals, including HD-SDI and DVI up to UXGA resolution. - Suitable for DLite, ILite and projectors, as well as monitors and third-party analog display devices. - Compatible with all standard image formats. ### Features - Advanced multi-window image processing - Full control and configuration of a wide range of sources ### Stacking and chaining An unlimited number of units can be stacked. This allows up to 4 sources to be shown on each display, with the number of displays corresponding to the number of stacked units. Up to 64 units can also be daisy-chained, enabling the presentation of as many as 256 sources on a single screen. Stacking and daisy-chaining may be combined. ### Source compatibility The digitizer supports both analog and digital video formats: - CBVS/S-Video Composite - YUV Component (BNC) - RG(s)BHV analog - DVI up to UXGA - SDI - HD-SDI ### Resolution independence Scaling and compression capabilities, combined with the Distributed Processing concept, ensure compatibility with different resolutions and aspect ratios. External frame-rate conversion is not required, reducing the risk of image artifacts. ### Advanced software control The fully featured XLite toolset provides additional control and configuration functions for the digitizer. ### Specifications - Inputs: 4 optional inputs - Access: front-accessible - Integrated video processing - Auto-sensing and hot-swappable inputs - Supported signals: S-Video, composite, YUV/RGB, SDI, HD-SDI, DVI up to UXGA - Compatibility: LED displays and projectors - Outputs: DVI-A, DVI-D - Scalability: chaining for additional inputs, stacking for additional displays - Input configuration: user-defined - Effects: anamorphic imaging, chroma-keying per input, alpha-keying per input - Z-order control - Windowing / viewports - Weight: approximately 7 kg - Operating temperature: 0°C to 45°C - Maximum power consumption: 120 W - Power supply: auto-ranging 90–264 V, 50–60 Hz - Power connector: 3-pin IEC - Order information: R9851550 - Connectors: RS-232 via RJ11 - Control: XLite toolset - Scaler: 4 input channels for data and video, fully scalable to the desired output resolution - Dimensions: 482 × 53 × 486 mm - Input module dimensions: 103 × 41 × 181 mm - Window positioning: intuitive positioning interface - Z-order adjustment: instant modification for each output window

Specifications
