Description

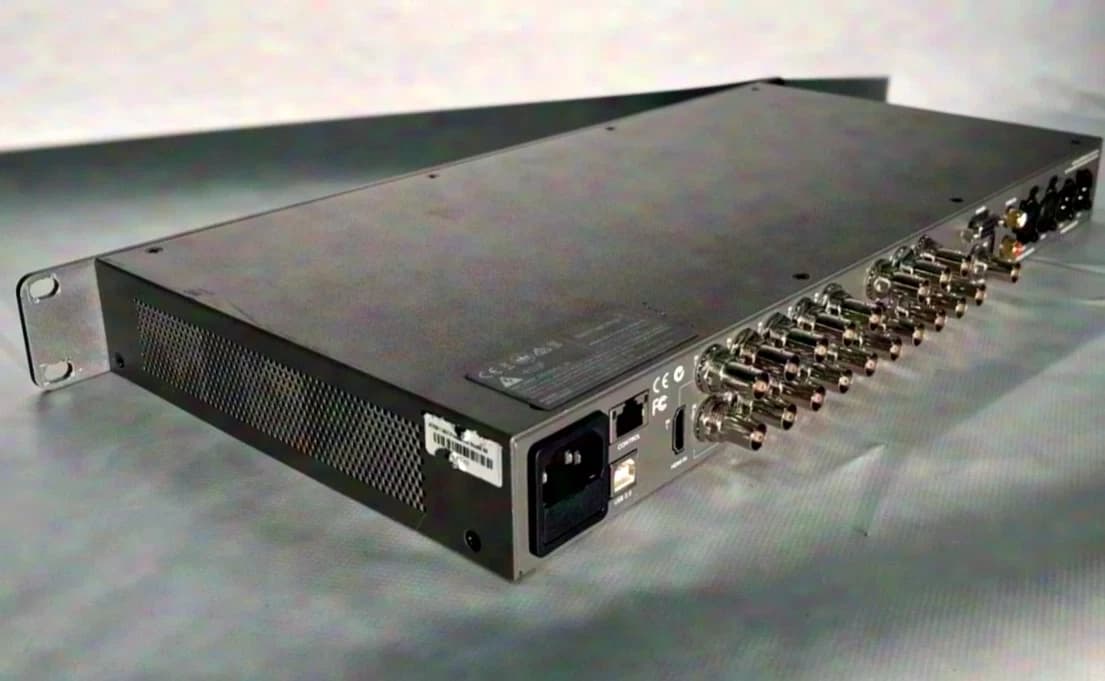

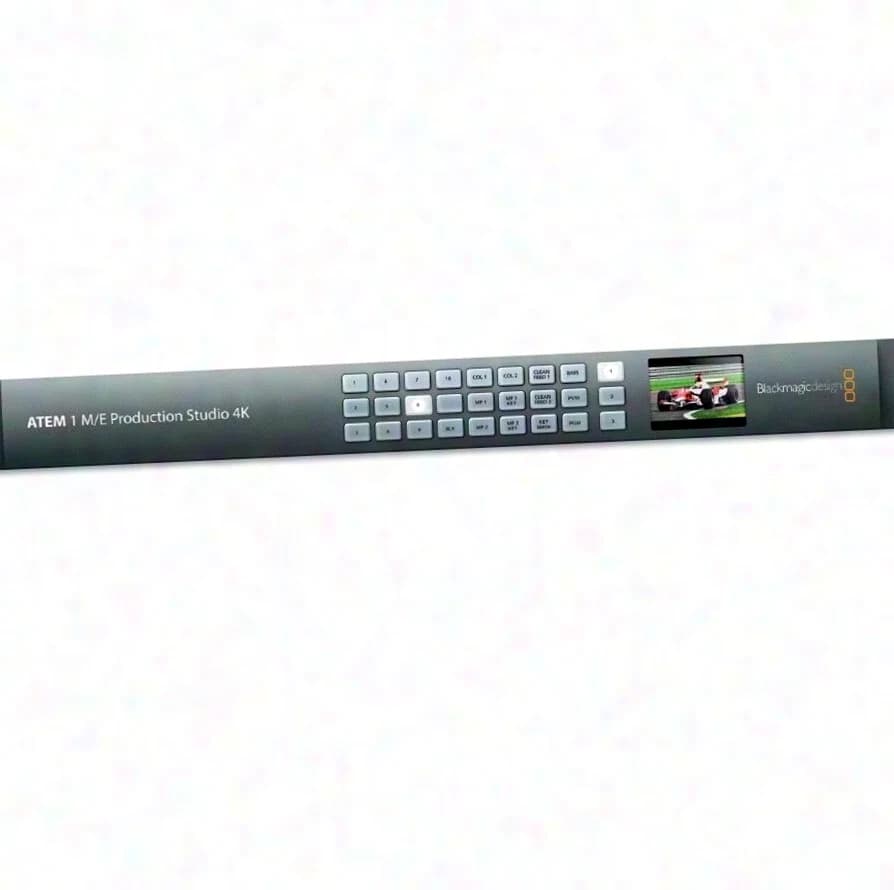

USED SALE! The device is in very good used condition and was only in operation for a few hours. Please refer to the pictures for the exact visual condition. Price is per unit! The sale is exclusively to commercial customers (B2B), excluding liability for defects and without the possibility of return. Collection possible or insured shipping for €20. --------------------------------------------- Manufacturer information: https://www.blackmagicdesign.com/de/products/atem/techspecs/W-APS-03 Technical specifications: Total video connections: 11, of which 10 are active video inputs Total video outputs: 10 Aux outputs: 3 in total Supported SDI rates: 270 Mbit, 1.5 G, 3 G and 6 G Audio inputs: 2 x XLR, 2 x RCA Audio outputs: 2 x XLR program outputs Timecode connections: none Reference inputs: Tri-Sync or Black Burst Resync on video inputs: on all 10 inputs SDI video inputs: 10 x 10 Bit, switchable between SD, HD and Ultra HD 4K. 2 embedded audio channels each. HDMI video input: 1 x HDMI Type A, switchable between 10 Bit SD, HD and Ultra HD 4K. 2 embedded audio channels. Analog audio outputs: 2 x XLR socket SDI audio outputs: 2 embedded channels in the SDI output on all outputs SDI program outputs: 2 x 10 Bit, switchable between SD, HD and Ultra HD 4K HDMI program output: 1 x HDMI Type A, 10 Bit, switchable between SD, HD and Ultra HD 4K Down-converted SDI program output: 1 x 10 Bit, from Ultra HD 4K to HD SDI preview output: 1 x 10 Bit, switchable between SD, HD and Ultra HD 4K MultiView outputs: SDI MultiView output: 1 HDMI MultiView output: 1 Control panel connection: 1 Ethernet: support for 10/100/1000 BaseT Tally output: The tally function is added via an Ethernet connection to the Blackmagic Design GPI and Tally Interface. The interface is not included. Computer interface: 1 x USB-2.0 port

Specifications
