Description

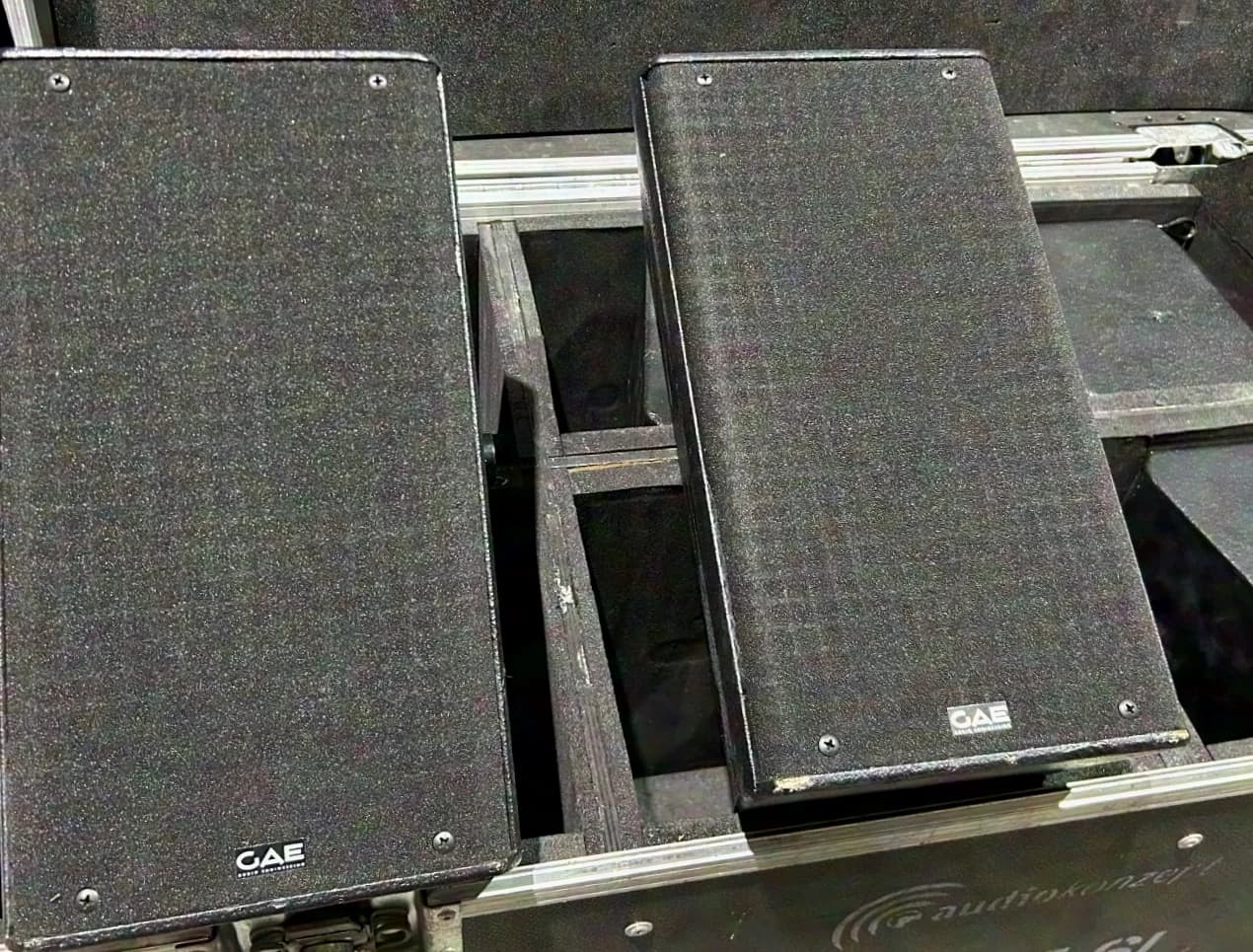

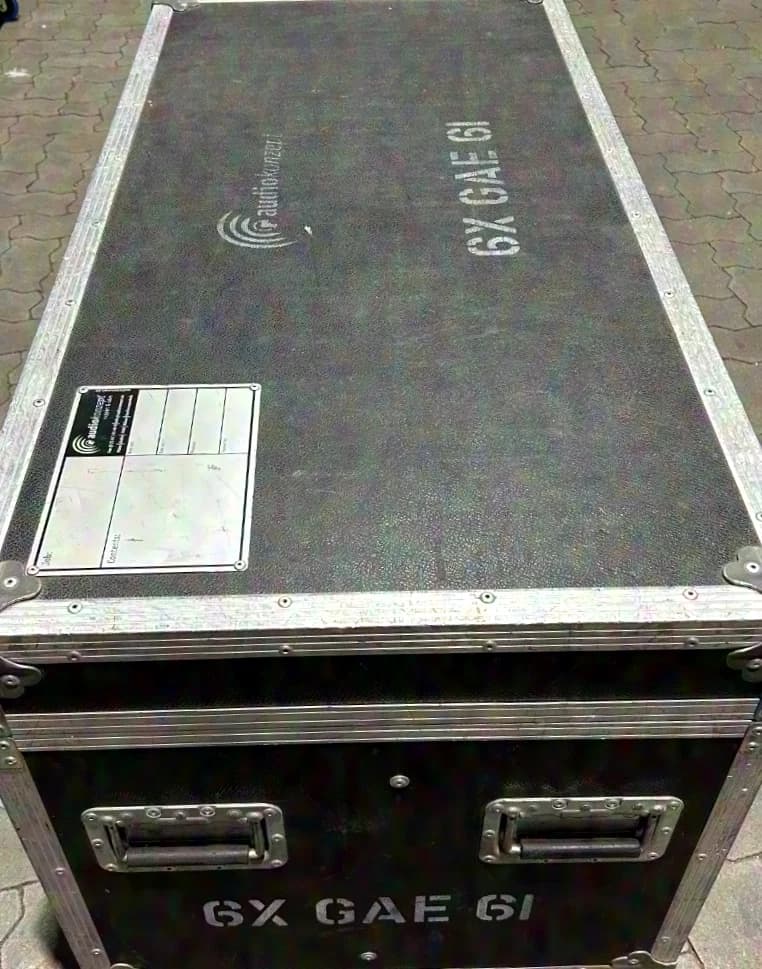

For sale is a complete set of six compact passive full-range loudspeakers in a touring flight case with a separate accessory compartment. The loudspeakers operate as 2-way systems with a passive crossover and bass-reflex enclosure. Each features a 6" low/mid-frequency driver and a horn-loaded 1" compression driver. The robust construction ensures high power handling and reliable operation. Thanks to their compact design, the systems are suitable both for mobile sound reinforcement and fixed installations. The passive crossover, matched to the installed components, offers sufficient power reserves. The enclosure is made of multiply laminated birch plywood and sealed with black polyurethane lacquer in RAL9005. A metal grille protects the front; the opaque acoustic foam coating still allows the sound to pass through very well. For mounting, there are two M8 threaded inserts on the right side panel, as well as one additional M8 insert each on the bottom and front panels. Two M6 threads on the rear allow the attachment of a wall mount. Signal connections are made via two Neutrik-Speakon sockets with loop-through capability. Thanks to the nominal input impedance of 16 Ohm, several loudspeakers can be operated easily on one power amplifier channel. The signal can be passed directly from one system to the next for this purpose. Features at a glance · Compact passive full-range loudspeaker · Suitable for touring applications, particularly speech reinforcement, and fixed installations · Ideal for Short and Medium applications · Suitable as front-fill and/or for underbalcony applications · Studio monitor quality for live use · 90° conical dispersion · 16 Ohm input impedance for easy coupling of several systems to one power amplifier channel · 2-way system with 6" LF/MF driver and 1" horn-loaded HF compression driver · Extensive optional mounting accessories available · Black enclosure finish according to RAL9005 Design......................................................................... 2-way full-range system, passive crossover, bass-reflex enclosure Frequency range ....................................................... 65 Hz – 19 kHz Power handling .......................................................... 100 W (IEC standard 268-5) Impedance .................................................................. 16 Ω Dispersion ................................................................... 90° radial Sensitivity (1 W/1 m) ................................................. 91 dB Maximum sound pressure level (1 m) ....................... 114 dB Drivers ........................................................................ 6"/1" Mounting inserts ......................................................... M8/M6 Recommended input power (IEC) ............................. 50 W – 200 W / 16 Ω Connections ................................................................. 2 x Neutrik Speakon NL4MP Weight ......................................................................... 7.35 kg Dimensions (H x W x D) ............................................. 39.5 x 21.5 x 22 cm Scope of delivery: 1x touring flight case 6x loudspeakers 6x flying brackets including coupler 6x speaker flanges The visual condition can be clearly seen from the pictures. No significant damage is visible on the enclosure or the acoustic foam. Technically, all units function perfectly. Price for the complete set: 2,000.00 € An invoice showing VAT will be issued. Payment is exclusively by advance payment. Shipping by freight forwarder is possible and can be arranged. The costs incurred will be passed on without surcharge.

Specifications
