Description

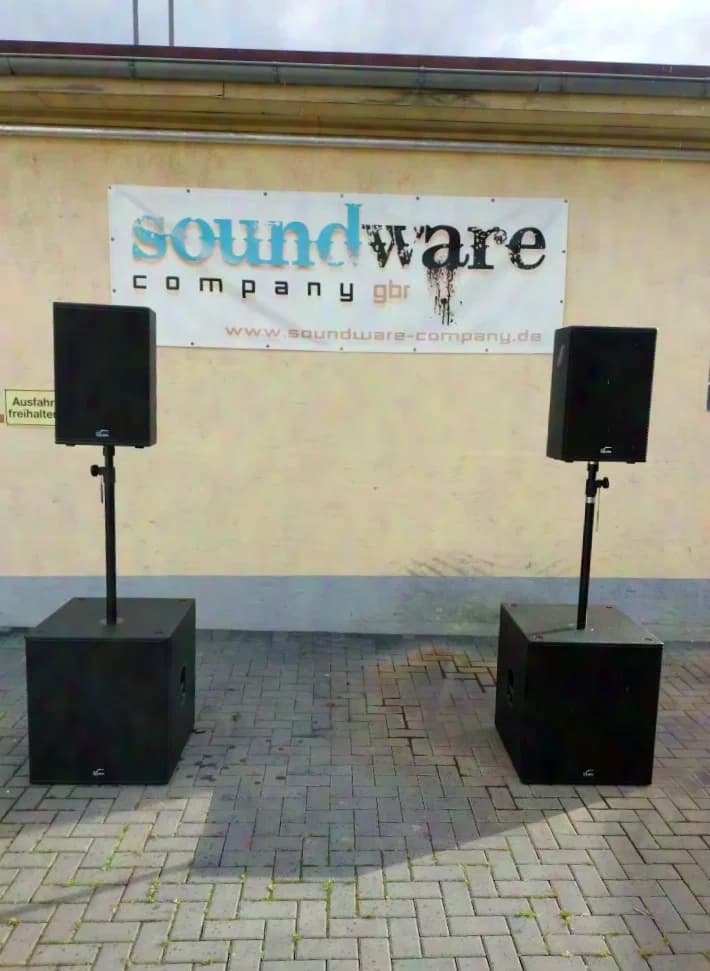

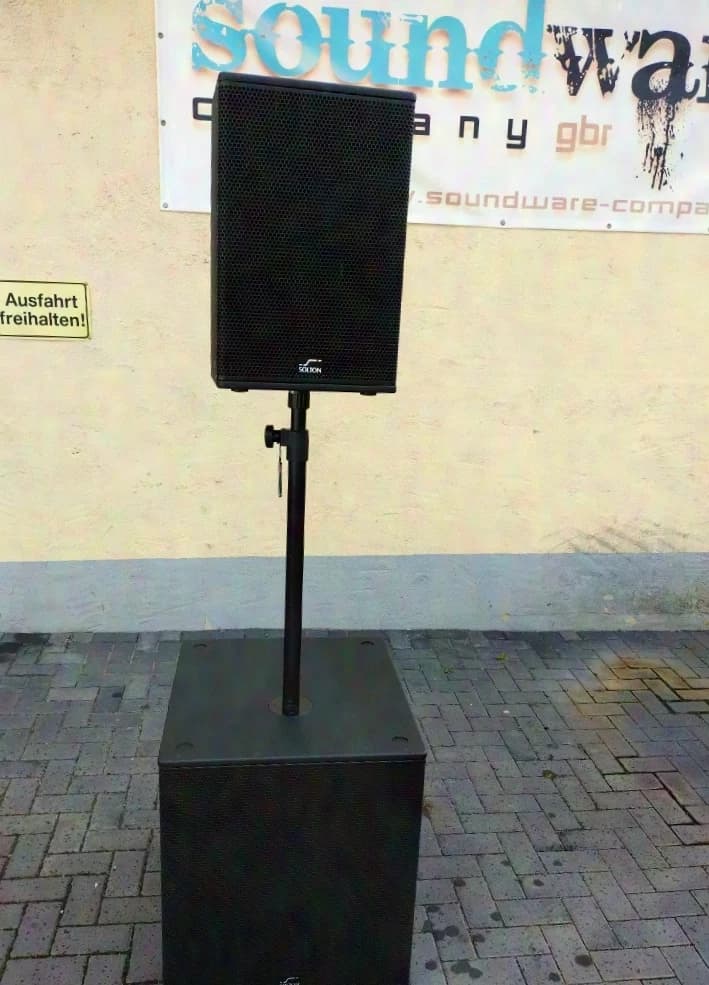

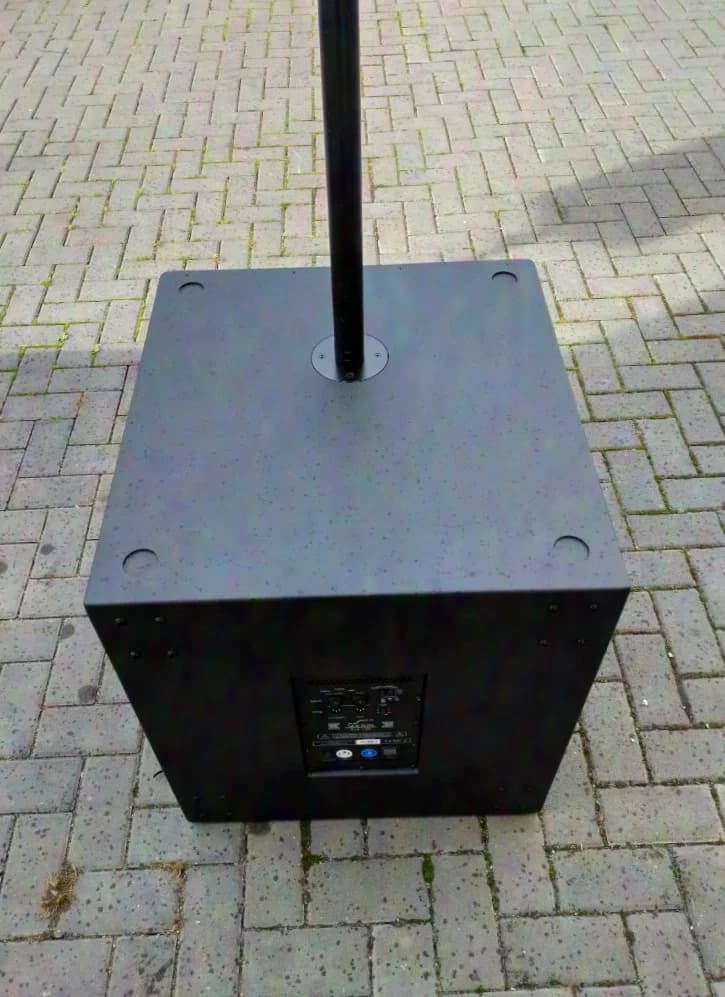

Offered is a new, active complete PA system with a total power of 2600 W. It comprises two active 18-inch basses of the aart SUB 18A type as well as two active 12-inch top units, aart T 12A, and is suitable for various sound reinforcement applications thanks to its compact design and clear reproduction. The system can be listened to and practically tested together with other versions at our premises before purchase. Speaker stands are not included in the offer. Covers, brackets and further accessories are available separately on request. VAT is shown separately. Information about shipping options is available on request. ________________________________________________________ Technical data of the top units: Frequency Range (-10dB): 50 Hz - 20 kHz Frequency Response (+- 3dB): 55 Hz - 18 kHz Coverage Pattern: H 90° x V 60° nominal (user-rotatable) Power Handling: 500 W continuous, 2000 W peak System Sensitivity (1w/1m): 98 dB Maximum SPL (Calculated at 1m): 125 dB continuous, 131 dB peak HF Driver: 1,75" voice coil, 1" exit compression driver LF Driver: 12", 3" voice coil neodym speaker Crossover: Active / DSP Protection: Dual-band limiter Active Tuning / Features: 4 DSP presets, 2 x Line/Mic IN level & switch, Line/Mix Enclosure: Multi-angle, 15 mm birch plywood Connectors: 2x XLR / 6.35 Jack Combo, 1x XLR Dimensions mm (WxHxD): 380 x 585 x 350 Weight: 16 kg ________________________________________________________ Technical data of the basses: Frequency Range (-10dB): 33 Hz - 250 Hz Frequency Response (+- 3dB): 38 Hz - 200 Hz Power Handling: 800 W continuous, 2400 W peak System Sensitivity (1w/1m): 99 dB Maximum SPL (Calculated at 1m): 128 dB continuous, 134 dB peak LF Driver: 18", 4" voice coil speaker Crossover: Active, Variable 80 - 200 Hz Protection: Limiter Active Tuning / Features: Volume, variable crossover 80 - 200 Hz, Phase switch Enclosure: 15 mm birch plywood Connectors: 2x Inputs XLR / 6.35 Jack Combo, 2x Thru XLR Size mm (WxHxD): 560 x 670 x 680 Weight: 43 kg
