Description

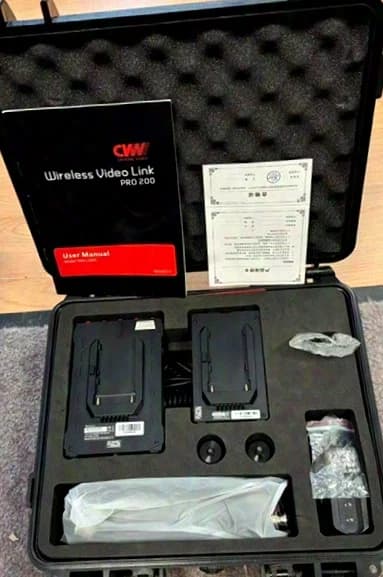

Zero-latency wireless video transmission system designed for reliable signal transfer over line-of-sight distances of up to 200 m. Key specifications: ******************************************* Transmission delay: less than 1 ms under ideal conditions 3G-SDI and HDMI connectivity Line-of-sight transmission distance: up to 200 m Video transmission: Full HD 1080/60p, uncompressed 4:2:2, 10-bit Supported audio: PCM, DTS-HD, Dolby TrueHD Mounting: female thread; shoe mount adapter included Timecode transmission supported Battery interface: Sony F-type battery plate Operating frequency: 5 GHz Bandwidth: 40 MHz Channel selection: manual control via buttons Number of available channels: 4 Channel indication: LED display Available frequencies: Channel 1: 5.170 GHz Channel 2: 5.230 GHz Channel 3: 5.755 GHz Channel 4: 5.795 GHz Supported video formats: ************************************* 1080p at 23.98/24/25/30/50/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps Supported audio formats: **************************************** PCM, DTS-HD, Dolby TrueHD Connections: Transmitter: 1x 3G-SDI input 1x HDMI input 1x Mini USB 1x DC input, 7–36 V, 2-pin female connector, Lemo-compatible 1x NP-F battery mount 2x antenna connectors Receiver: 1x 3G-SDI output 1x HDMI output 1x Mini USB 1x DC input, 7–36 V, 2-pin female connector, Lemo-compatible 1x NP-F battery mount 5x antenna connectors Power supply: *********************** Power consumption: 8 W for the transmitter and 7 W for the receiver Integrated Sony F-type battery mount on both units D-Tap power support via 2 included adapter cables 1 power adapter included Construction: ***************************** Metal housing Metal antennas with plastic coating Plastic transport case Package contents: ******************************************** 1x high-quality case with precisely fitted foam insert 1x transmitter with 2 antennas 1x receiver with 5 antennas 3x spare antennas 2x BNC cables, 80 cm each 1x power adapter 2x DC adapter cables, D-Tap to 2-pin connector, Lemo-compatible 2x hot-shoe adapters 1x V-mount adapter
