Description

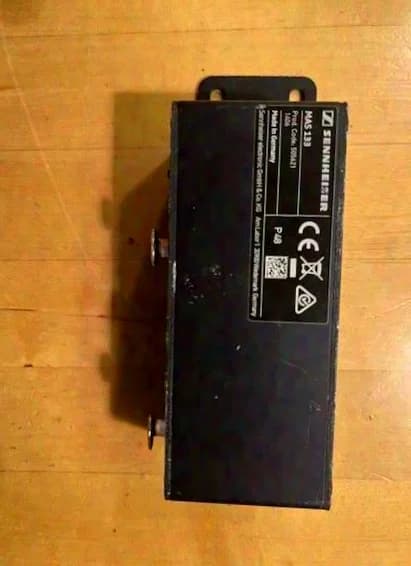

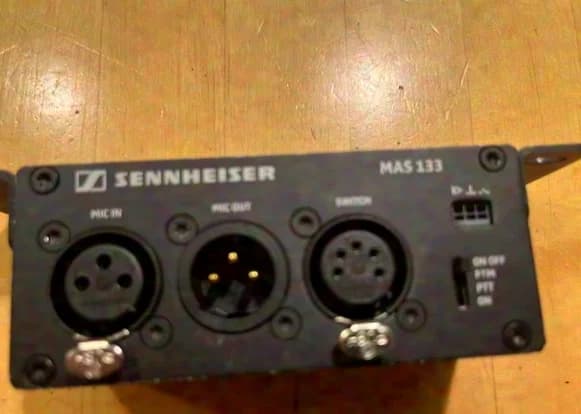

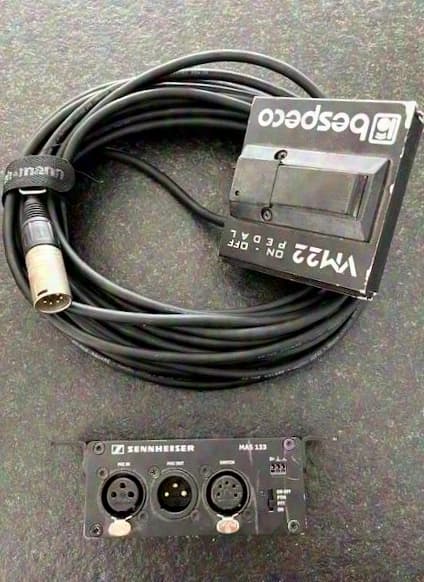

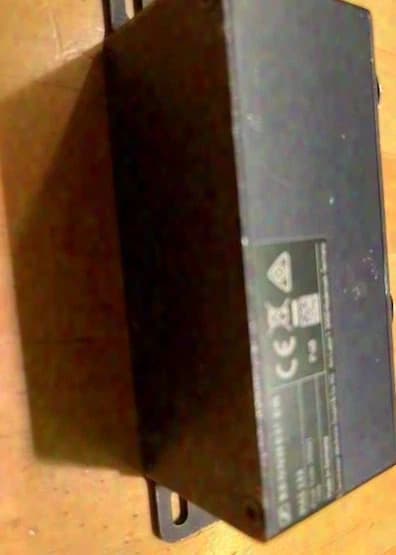

For sale is a used inline switch box with footswitch. The versatile XLR switch box is connected between the microphone and mixing console and supplies power to the MAS 1 microphone switch. The selectable operating modes PTT, PTM, Toggle On/Off and Permanent On allow any microphones with an XLR connection to be controlled. A TTL logic output is also available, for example for connecting a camera or media control system. Features Toggle On/Off Push to Mute Push to Talk Permanent On Technical data Mic In: XLR-3F Mic Out: XLR-3M, pin assignment: 1 = GND, 2 = +, 3 = − Switch In: XLR-5F, connector assignment: 1 = GND, 2 = Switch, 3 = LED Red −, 4 = LED Green −, 5 = LEDs + 12 V Out Phantom power: P 48 Operating temperature: −10 °C to +50 °C Current consumption: 4,5 mA Output voltage: High Level > 2,4 V, Low Level < 0,4 V Dimensions: 150 x 44 x 44 mm (W x D x H) Weight: 212 g The footswitch is included. Among other things, we used the switch box to switch an effect such as reverb on and off directly on stage at the digital mixing console. The device works perfectly from a technical standpoint. It shows signs of use cosmetically, as can be seen in the pictures. Private sale: no warranty, guarantee or returns. VAT is not shown separately.
