Description

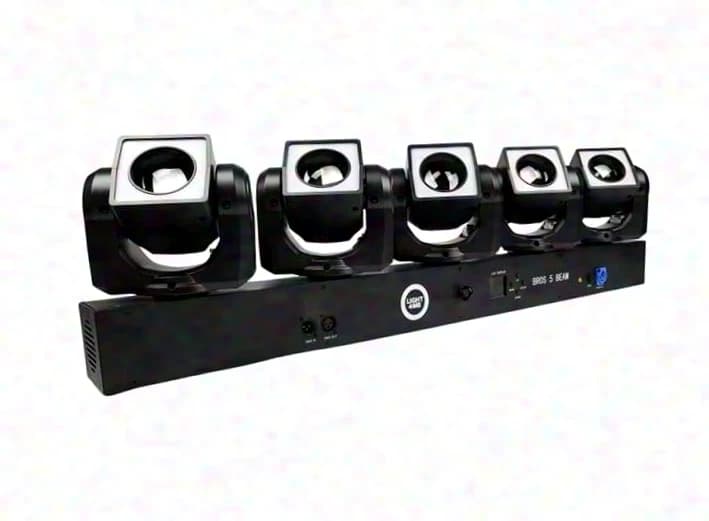

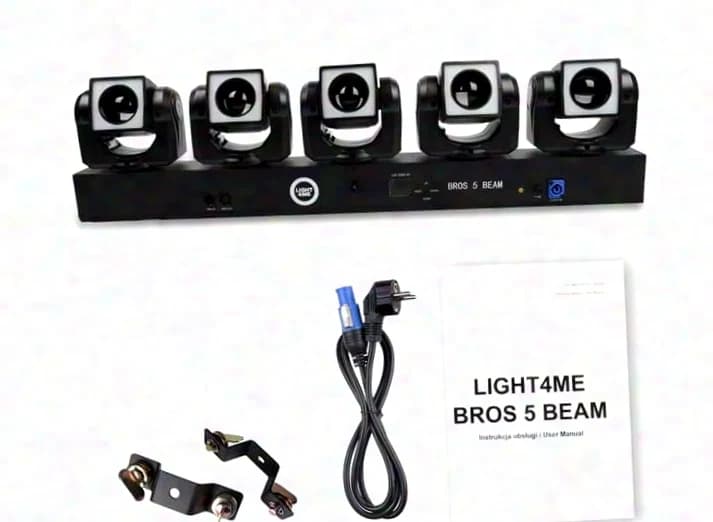

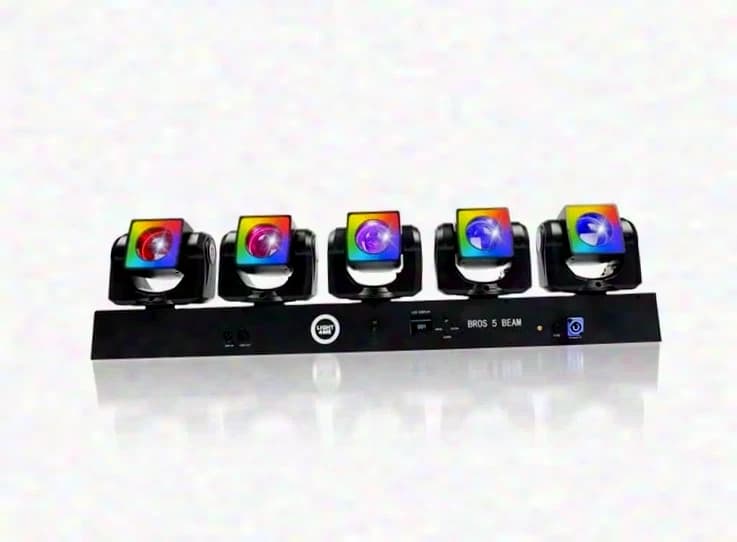

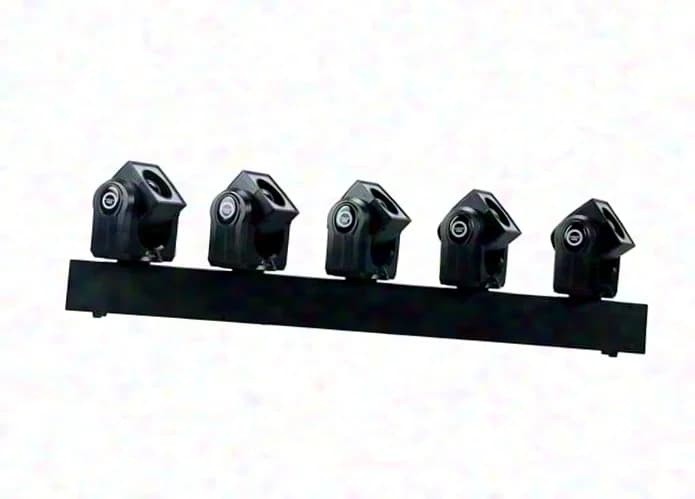

1-meter light bar with five independently controllable beam moving heads, available as a set of four units in the original packaging. Each moving head is equipped with a 40-Watt RGBW LED in 4-in-1 technology as well as 24 additional RGB LEDs rated at 0.2 Watt each. A total of five 40-W RGBW main light sources and 120 colored 0.2-W Eye-Candy LEDs are available per bar. The five heads, including their main and background effects, can be controlled individually via DMX or Pixel Control. For DMX control, either 11 channels or 60 channels in a 12 × 5 format are available. Integrated macros can also be called up via DMX. The lighting effect is suitable for stages, live shows, clubs, discos, as well as mobile DJs, bands and wedding events. The sturdy housing and carefully selected electronic components are designed for use in the professional event sector. The mounting brackets included in the delivery allow installation on lighting trusses and lighting ramps. Power is supplied via a PowerCon connection. For the DMX connection, a 3-pin XLR input and a corresponding output are provided. A color LCD and four buttons on the front make menu navigation easier. Four operating modes are available: Auto – The device independently runs stored programs for movements and lighting effects. Sound – The effects are triggered by sound via a sensitive microphone installed in the housing. Master/Slave – Several devices are connected to each other via DMX. The first device takes the lead, while the remaining units reproduce its sequences synchronously. DMX – Operation is carried out via an external DMX controller or a corresponding lighting control console. DMX and RDM control – In addition to conventional DMX operation, the device supports RDM (Remote Device Management). This enables bidirectional communication between the controller and compatible fixtures. Standard DMX512 cables are used for the connection. RDM can be used, among other things, to conveniently configure addresses and other device parameters. Technical data: Power supply: 100–240 V AC, 50/60 Hz Power consumption: 250 W Fuse: F5AL/250V LED configuration: 5 × 40 W 4-in-1 RGBW plus 120 × 0.2 W 3-in-1 RGB Power connection: PowerCon DMX connections: 3-pin XLR sockets for input and output Strobe: 1–20 Hz DMX operation: 11 or 60 channels Dimmer: 0–100 % Operating modes: Auto, Sound, Master/Slave and DMX RDM support: available Pan movement: 540° Pan reverse: available Tilt movement: 200° Tilt reverse: available Display shutdown: possible Display rotation: possible Protection rating: IP20 Dimensions: 100 × 13.7 × 25.8 cm Net weight: 12.4 kg Gross weight: 13.1 kg Scope of delivery: 4x lighting effect bar with 5 moving heads each 4x PowerCon power cables 4x set with 2 mounting brackets each 4x user manual in PL/ENG Original photos will be added later; manufacturer photos are currently available.

Specifications
