Description

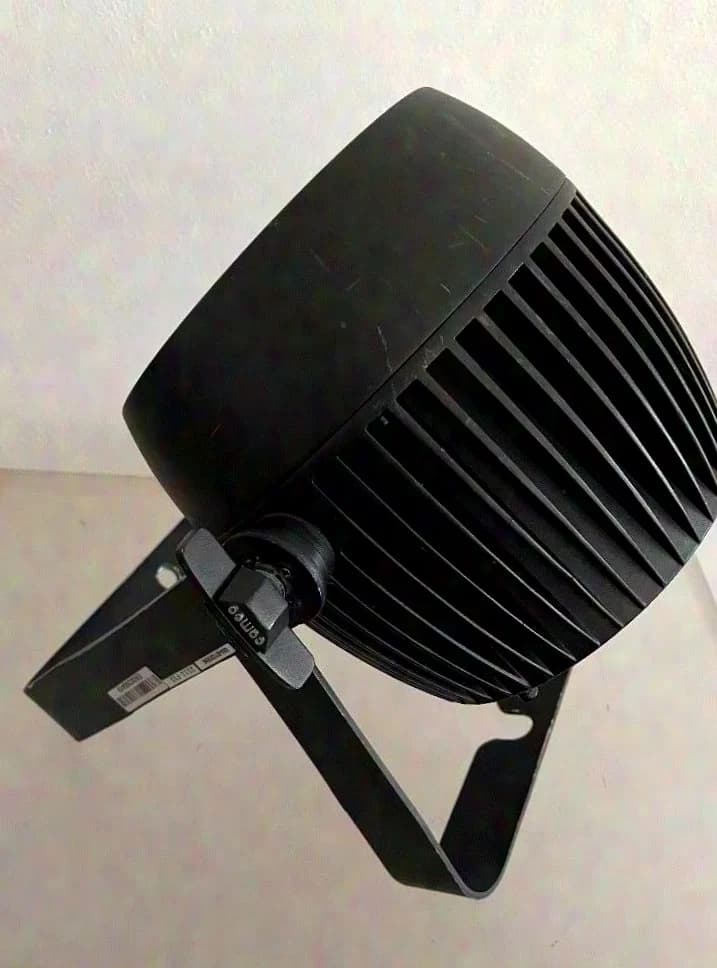

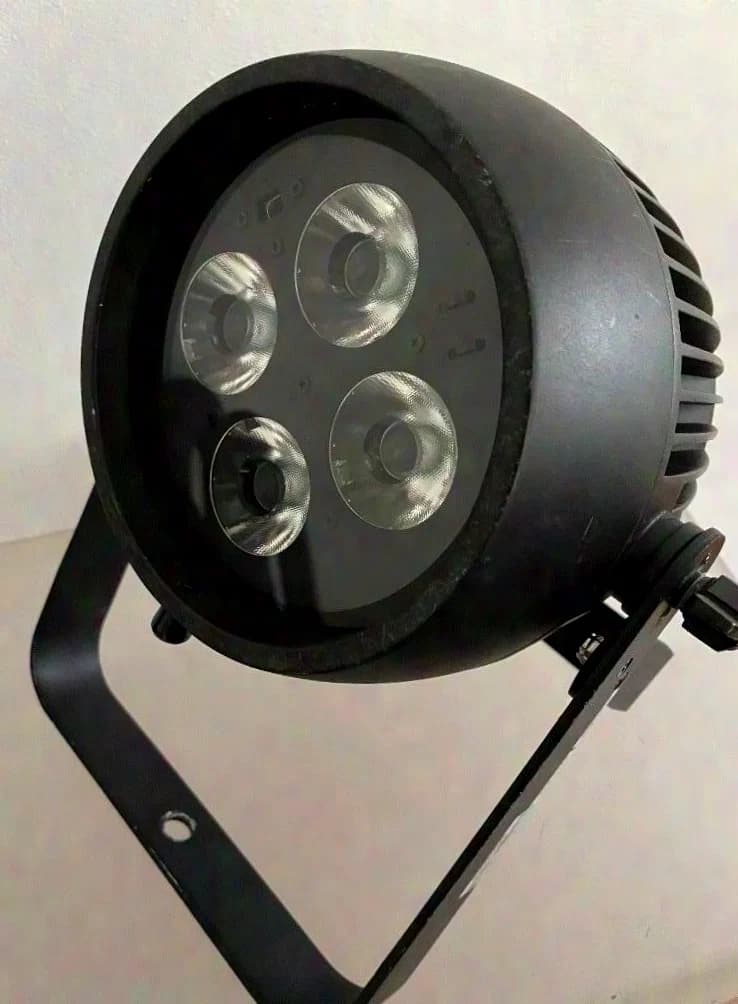

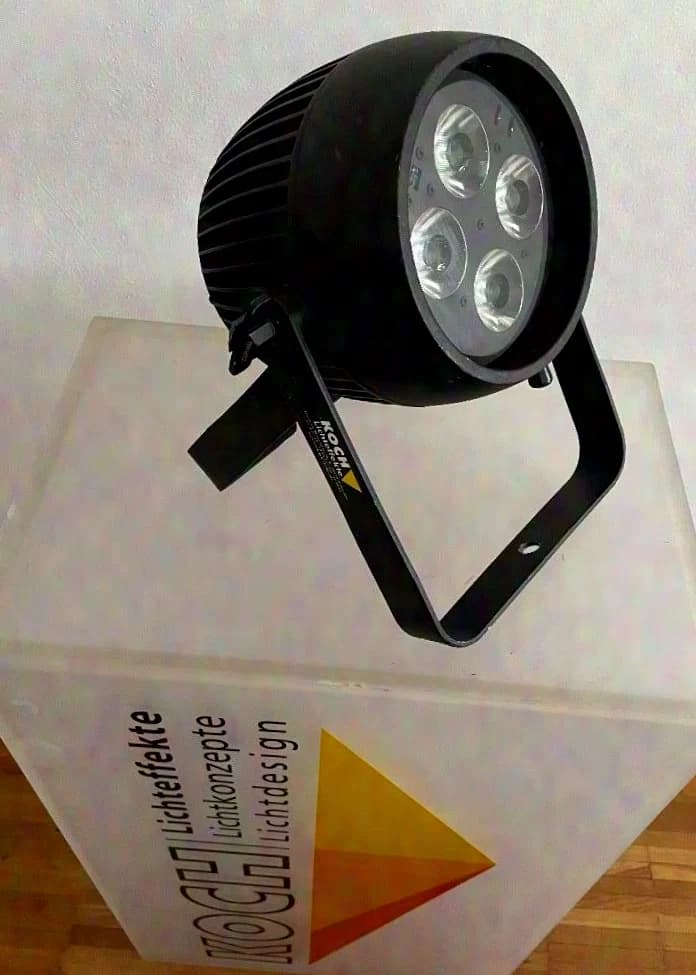

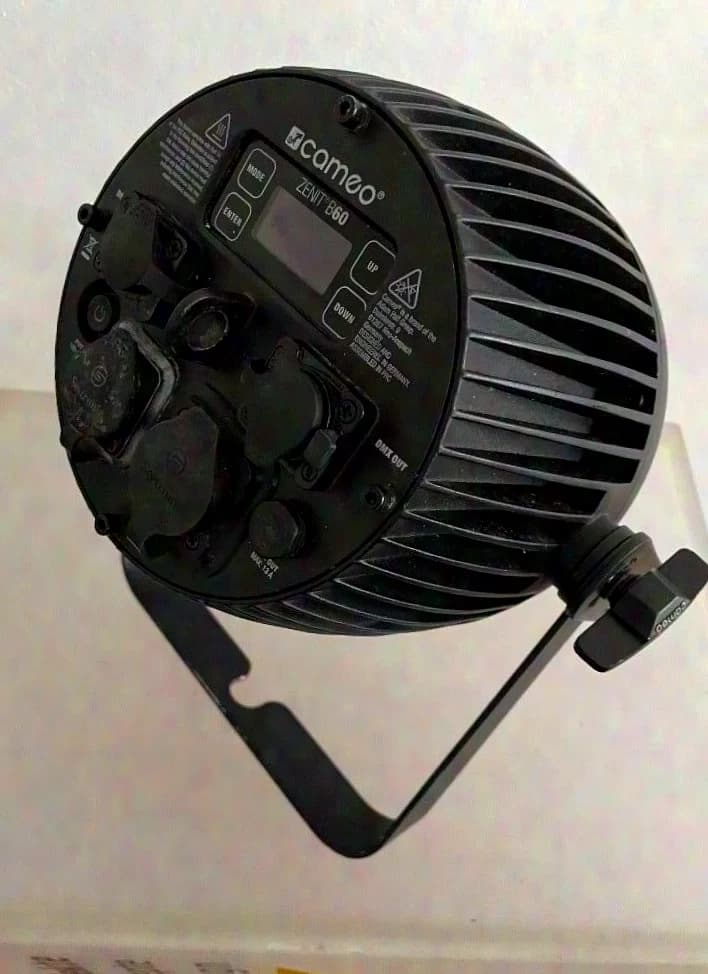

Thanks to battery operation, wireless DMX connectivity and IP65 protection, the professional PAR spotlight is suitable for demanding lighting tasks both indoors and outdoors. Four 15 W RGBW Cree LEDs each deliver up to 1,900 lm, homogeneous colour mixing and a service life of around 50,000 hours. The basic beam angle is 11°; two supplied diffuser lenses expand the possible applications to 25° and 40° without reducing the light output. Seven DMX operating modes, RDM, an infrared remote control and the integrated display are available for operation. In addition, a 2.4-GHz W-DMX™ receiver is installed. W-DMX™, developed by Wireless Solution Sweden AB, is considered an established standard for wireless lighting control in the professional lighting sector. The powerful, long-lasting LG Chem lithium-ion battery enables an operating time of up to 24 hours in RGBW operation and up to four days when using a single colour when fully charged. The runtime can be set in one-hour intervals; intelligent control automatically adjusts the brightness. Integrated battery management protects the battery from overcharging and deep discharge and thus contributes to a long service life. With a refresh rate of 3,600 Hz, the spotlight operates flicker-free and is therefore also suitable for film and TV productions. The silent convection cooling operates without a fan. Thanks to 16-bit technology, colour mixing and dimming are particularly precise. In addition, the individual LED colours can be corrected and four dimmer curves with adjustable response behaviour can be selected. The robust die-cast aluminium housing is equipped with an OLED display and four touch-sensitive controls. An access lock prevents unauthorised changes to the menu settings. The spotlight can also be used as automatic emergency lighting. Features Professional PAR spotlight with battery, W-DMX™ and IP65 protection 4 x 15 W RGBW Cree LEDs with 1,900 lm luminous flux for even colour mixing Powerful, long-lasting LG Chem lithium-ion battery Battery management system for protection against overcharging and deep discharge Integrated 2.4-GHz W-DMX™ receiver Control via W-DMX™, DMX, RDM, infrared remote control or OLED display Two specially developed diffuser lenses included: 25° and 40° Beam angle without diffuser: 11°; elliptical 60° x 10° diffuser available as an option True-One connection cable with Schuko plug included 16-bit technology for finely resolved colour mixing and precise dimming behaviour OLED display with four touch-sensitive fields for configuration Menu lock against unintended or unauthorised changes Suitable for use as automatic emergency lighting Technical data Product type: LED PAR spotlight Design: Outdoor Colour spectrum: RGBW Number of LEDs: 4 LED type: Cree, 15 W Refresh rate: 3,600 Hz Beam angle without diffuser: Beam 11° / Field 18° DMX input: 5-pin, IP65 DMX output: 5-pin, IP65 DMX modes: 2-channel, 3-channel, 4-channel, 8-channel 1, 8-channel 2, 10-channel, 15-channel DMX functions: Colour Change, Colour Fade, Colour Jump, Colour Macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, Reset, RGBW, RGBW Fine, Strobe Standalone modes: Auto programmes, Colour Fade, Colour Jump, Colour Macro, Dimmer Curve, Dimmer Response, Display Lock, Master/Slave mode, Static Colour, Strobe, adjustable white balance Controls: Enter, Mode, Value Down, Value Up Display: OLED display Mains voltage: 100–240 V AC / 50–60 Hz Power consumption: 100 W Power supply connection: IP65 Power-through connection: IP65 Housing material: Die-cast aluminium Housing colour: Black Protection rating: IP65 Battery type: LG F1L Battery power: 217 Wh Battery capacity: 20.1 Ah Battery runtime: up to 24 hours when fully charged Charging time: 4 hours Cooling: Convection Illuminance: 40,000 lx at 1 m Luminous flux: 1,900 lm Luminous efficacy: 32 lm/W Operating temperature: -15 to 45 °C Dimensions without mounting bracket Please note: The images show spotlights in like-new condition. Upon request, we would be happy to send current photos of the devices on offer. Dimensions (W x D x H): 187 x 164 x 187 mm Weight: 5.4 kg

Specifications
