Description

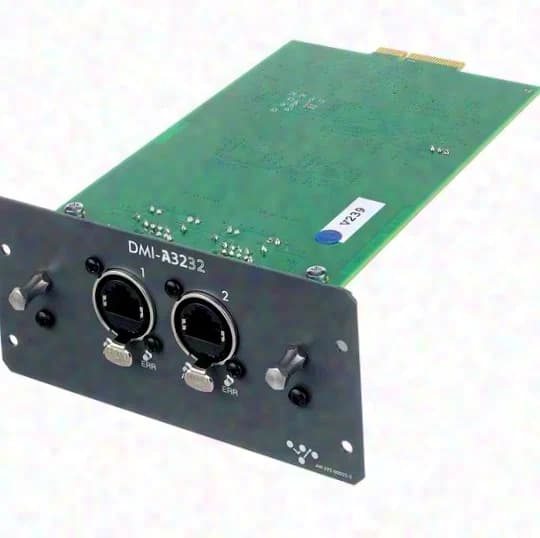

Demo unit in like-new condition Interface for the A3232 protocol with up to 64 inputs/outputs. Suitable for S-Series consoles as well as SD and Quantum consoles with a DMI slot. The card allows S-Series consoles to be connected to the A168 STAGE Stage Rack. Each EtherCON connection supports up to 32 inputs and outputs, providing a total of up to 64 I/Os. The A3232 protocol was introduced in connection with the 4REA4. It enables the connection of the compact A168 STAGE and expands the system by 16 microphone preamps and 8 outputs per box. Up to four A168 STAGE boxes can be operated from an S-Series console. In cascade mode, two A168 STAGE boxes can be connected to each of the two card ports. This provides a total of up to 64 inputs and 32 outputs. Alternatively, in redundancy mode, one box can be connected to both ports, creating a fail-safe cabling configuration. Phantom power, gain in the range of +5 to +60 dB, and a 20-dB pad can be controlled for all inputs of the connected A168 STAGE boxes. Operation is possible at both 48 kHz and 96 kHz.

Specifications
