Description

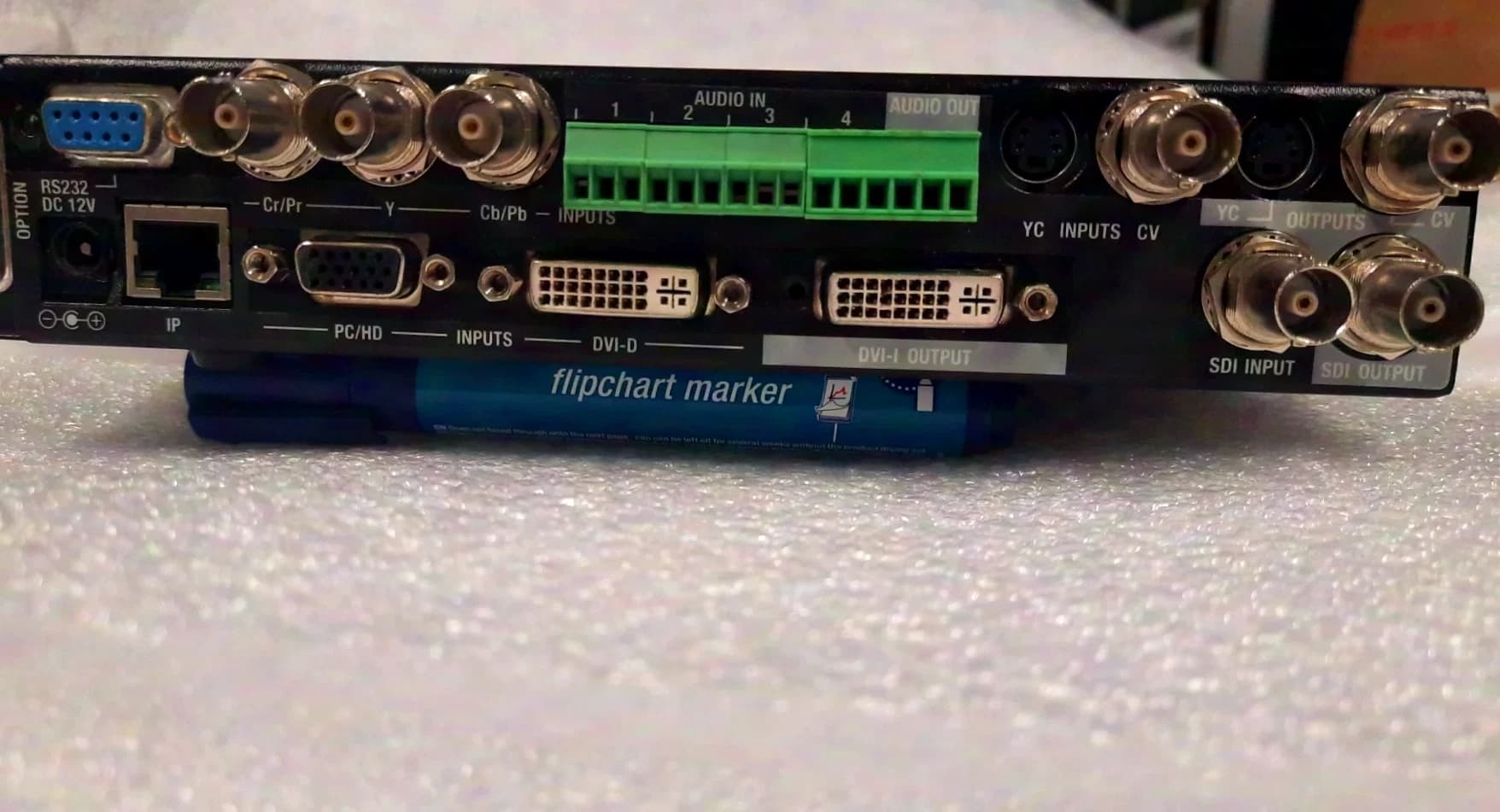

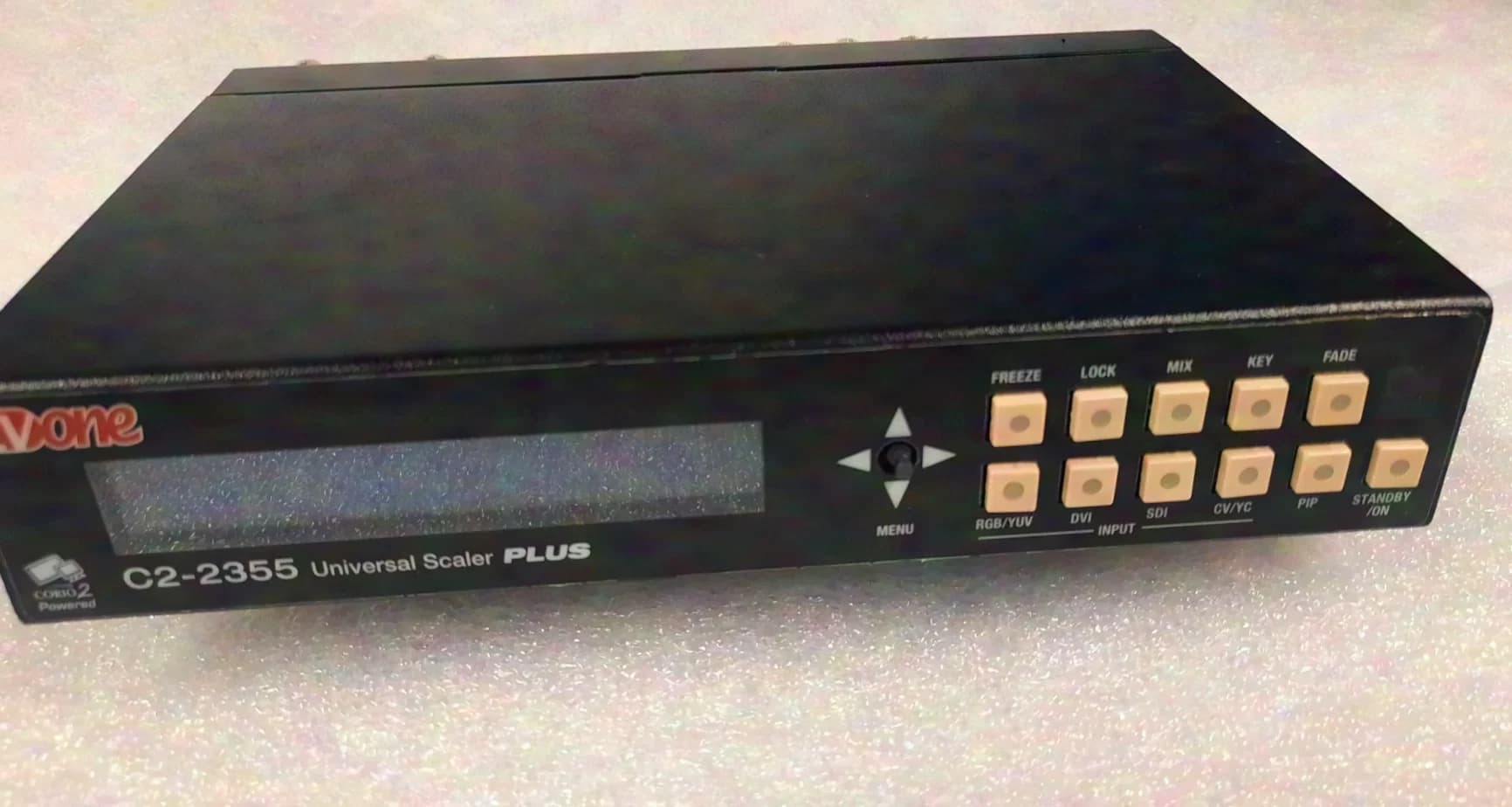

Universal I/O video switcher/scaler with high-quality bidirectional conversion for a wide range of video formats. The device is built on CORIO®2 technology and supports DVI, RGB, YUV, YPbPr, Composite and S-Video (YC) connections for input and output. Incoming video parameters can be adjusted, while all configured settings are saved in non-volatile memory and remain available after the power is switched off. Ten user presets allow quick customization for different applications. The high-resolution RGB/YPbPr output can be set to virtually any PC or HDTV resolution. AutoSet automatically sizes and positions the computer input image so that it fits the video display precisely. In addition to the standard functionality, the unit provides SD/HD-SDI input and output. Up-Down-Cross Conversion Inputs: DVI-D, YUV/YPbPr, RGB/YPbPr, CV, YC, plus SD/HD-SDI Outputs: DVI-I (RGB/YPbPr/YUV), CV, YC, plus SD/HD-SDI Analog: PC resolutions up to 2048×2048, HDTV up to 1080p/60 DVI: PC resolutions up to 1920×1200, HDTV up to 1080p/60 Supports: NTSC, PAL, PAL-M, PAL-N, SECAM Motion compensation and 3:2 pulldown Temporal and diagonal interpolation Automatic detection of the incoming resolution AutoSet for automatic sizing of PC input images Full-bandwidth 4:4:4 chroma sampling Adjustment of video signal parameters Integrated 4×1 stereo audio routing switcher RS-232 and IP interfaces, CORIOtools Suite and WCP Variable image zoom from 10% to 10X Genlock with subcarrier phase adjustment Mix, PIP, chroma/lumakey and edge blending
