Description

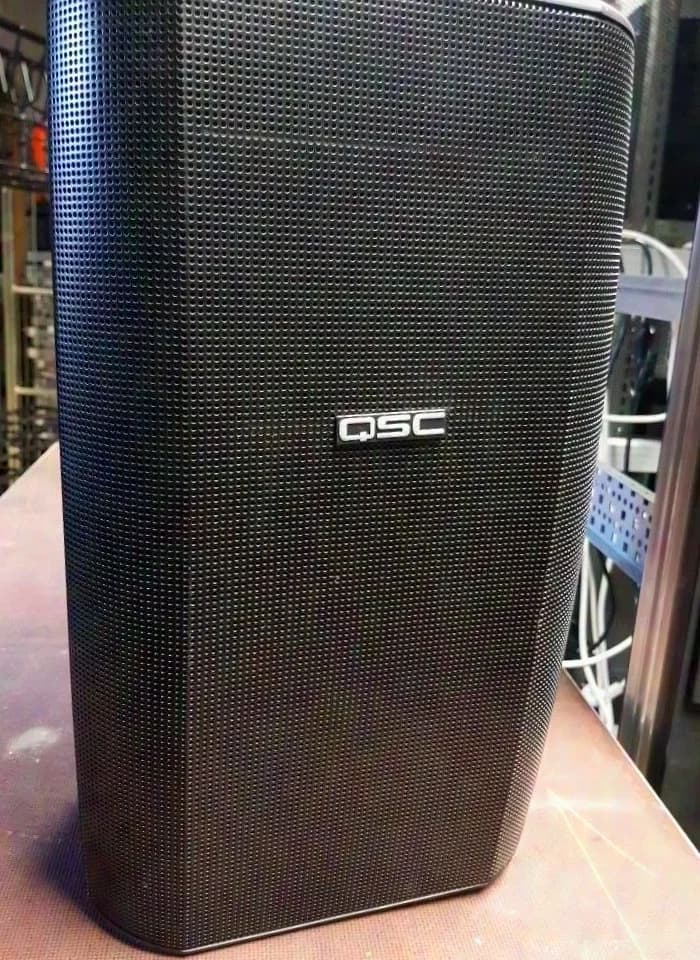

2-way full-range loudspeaker with 8-inch woofer and weather-resistant enclosure Used condition, fully functional until removal from the fixed installation of the Zeiss Planetarium Jena. Of the original 62 units, 16 are still available. The enclosures show some significant signs of use, such as scratches, dents and other cosmetic wear. Technically, the loudspeakers continue to work flawlessly. Collection on site. Shipping by freight forwarder is possible by prior arrangement. Matching CX254 power amplifiers are available in another listing. Included in delivery: - YM-8T yoke brackets - Wall mount Specifications: 8 Ohm nominal impedance, 200 W RMS according to IEC (100 hours) Frequency range: 80 Hz–21 kHz (-6 dB), 60 Hz–22 kHz (-10 dB) Maximum sound pressure level: 113 dB SPL continuous RMS, 119 dB SPL calculated peak Dispersion: nominal 90° horizontal × 60° vertical Suitable for fixed installation of loudspeakers 8-inch woofer with 2-inch voice coil 1-inch high-performance driver with titanium diaphragm and neodymium magnet for improved high-frequency reproduction Bass-reflex enclosure for more precise reproduction in the lower frequency range Rotatable waveguide horn on the high-frequency driver, tiltable by 90° Recommended amplifier power: 400 W RMS Bass-reflex tuning at 65 Hz Weather-resistant enclosure Black finish, can be repainted if required Robust, powder-coated aluminium grille Weight: 7.7 kg Further technical details, specifications and frequency diagrams can be seen in the photos.

Specifications
