Description

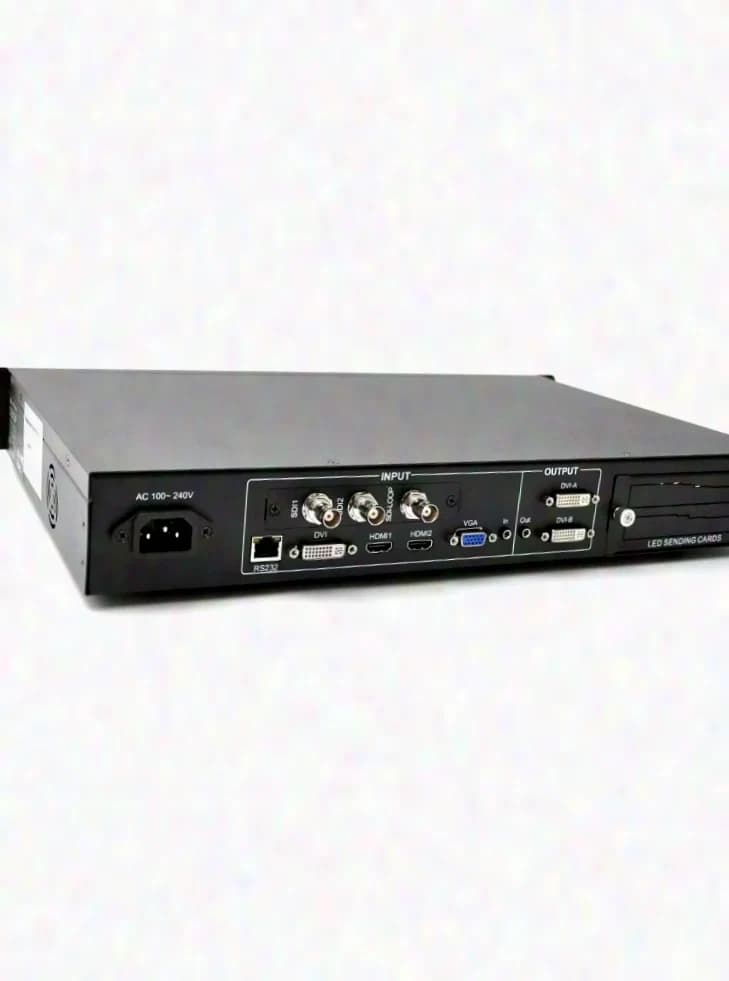

The processor is designed for demanding video applications and accepts eight input sources: 1 × DVI, 1 × HDMI, 1 × VGA, 2 × AV, 2 × SDI and 1 × Audio. For signal output, it is equipped with 2 × DVI, 1 × VGA, 1 × SDI Loop and 1 × Audio interfaces. Available operating resolutions at 60 Hz include: 800 × 600; 1024 × 768; 1280 × 720; 1280 × 1024; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1024 × 1920; 1536 × 1536; 2048 × 640; 2048 × 1152; 2304 × 1152; custom resolution

Specifications
