Description

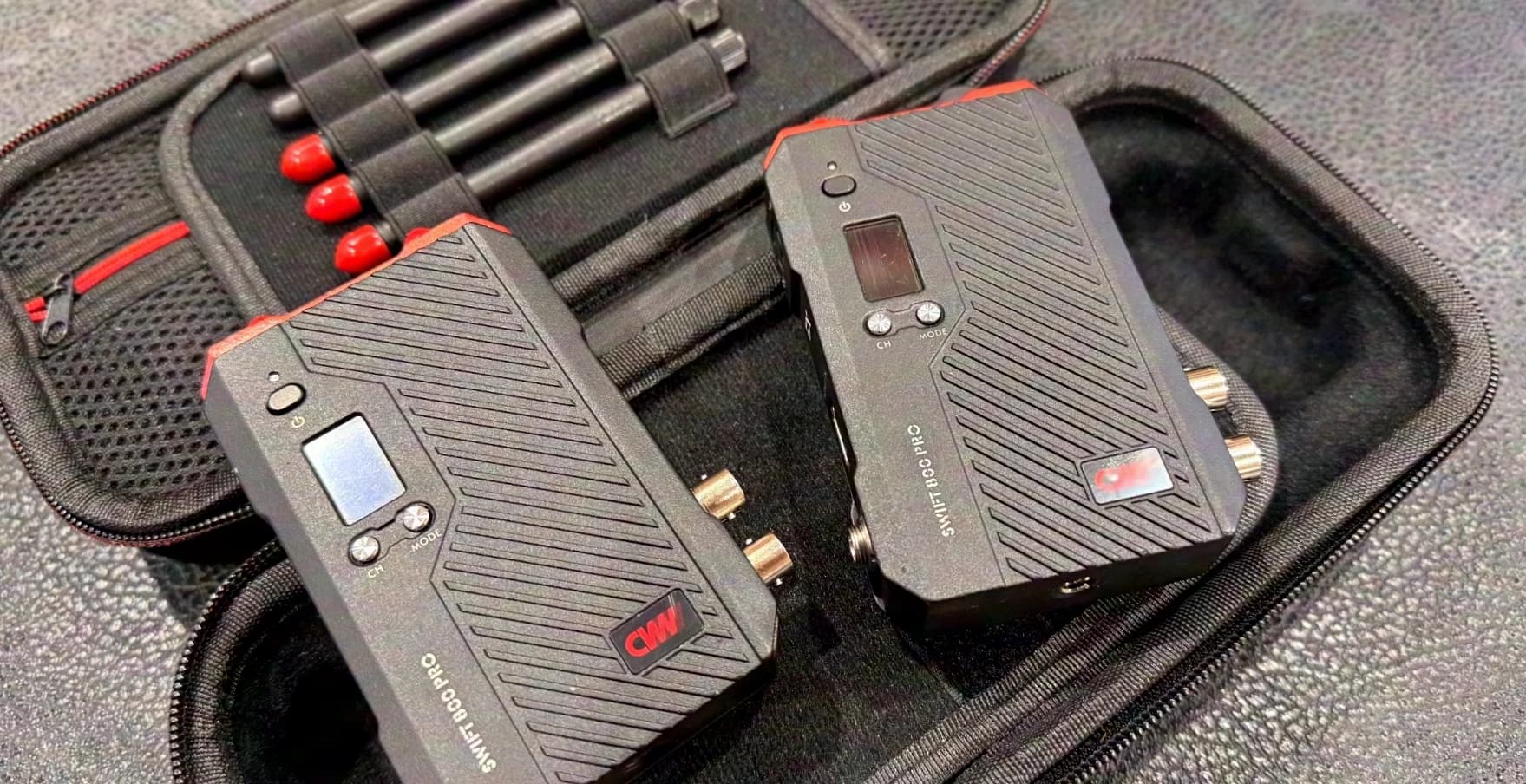

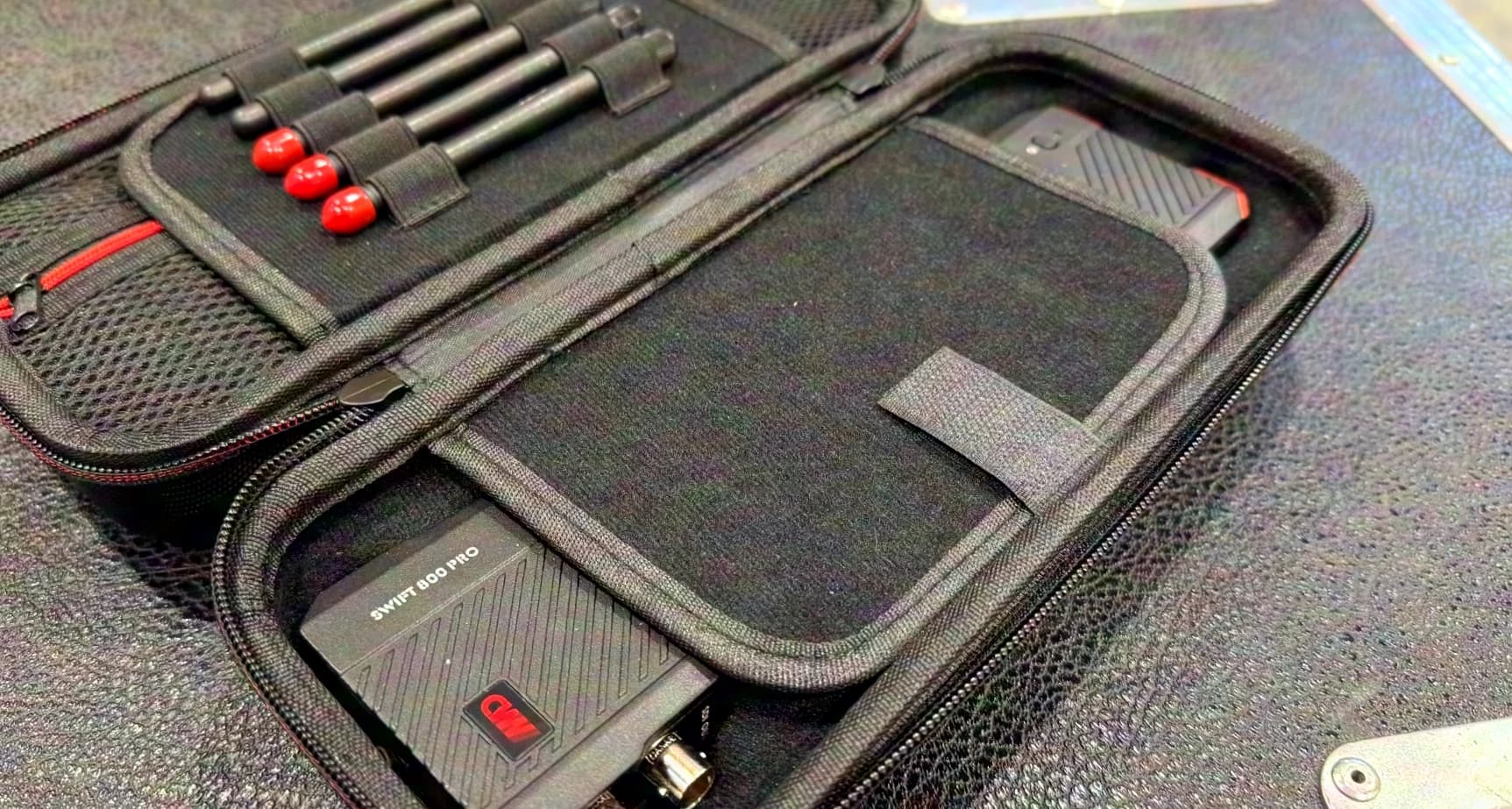

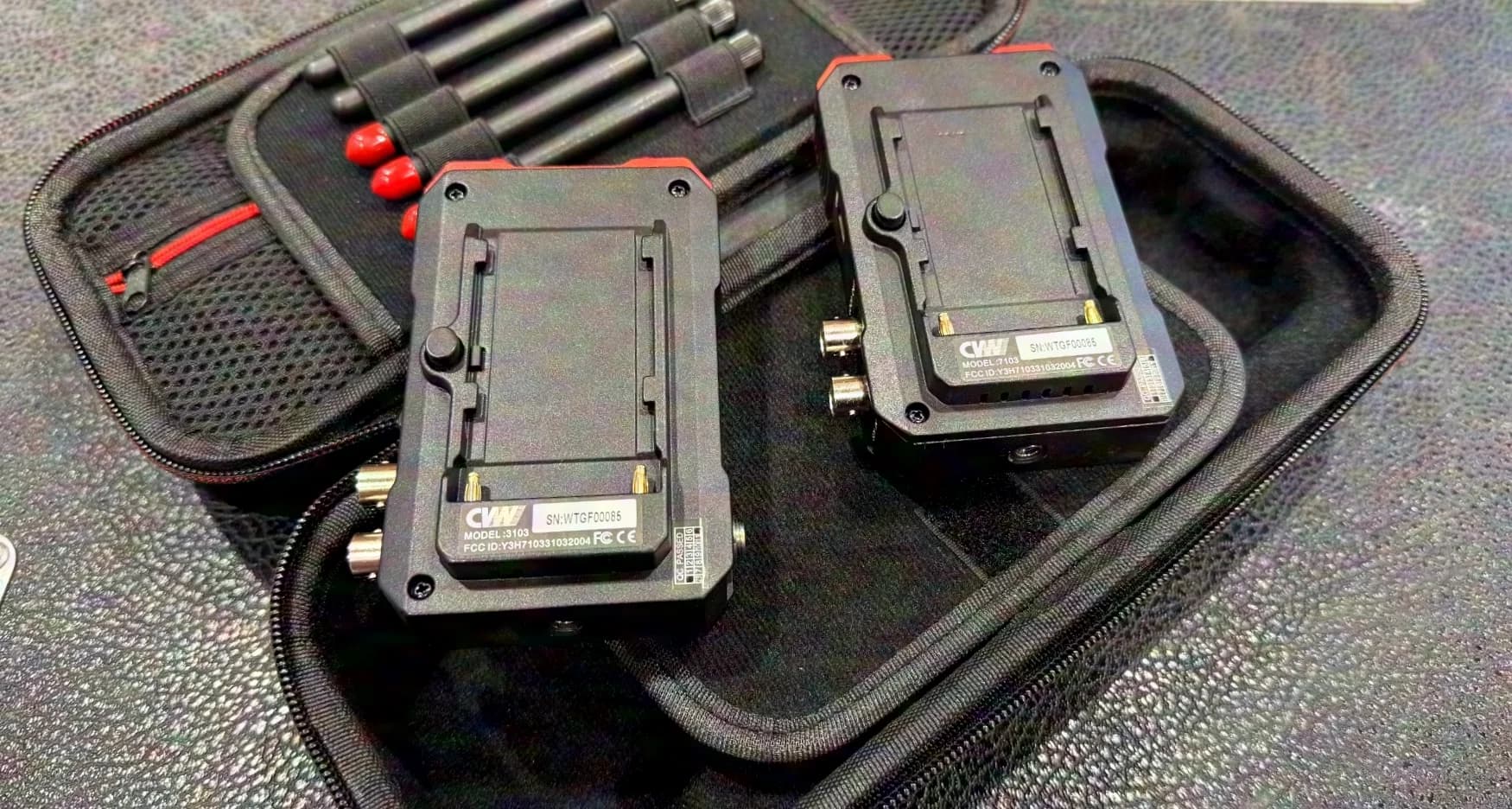

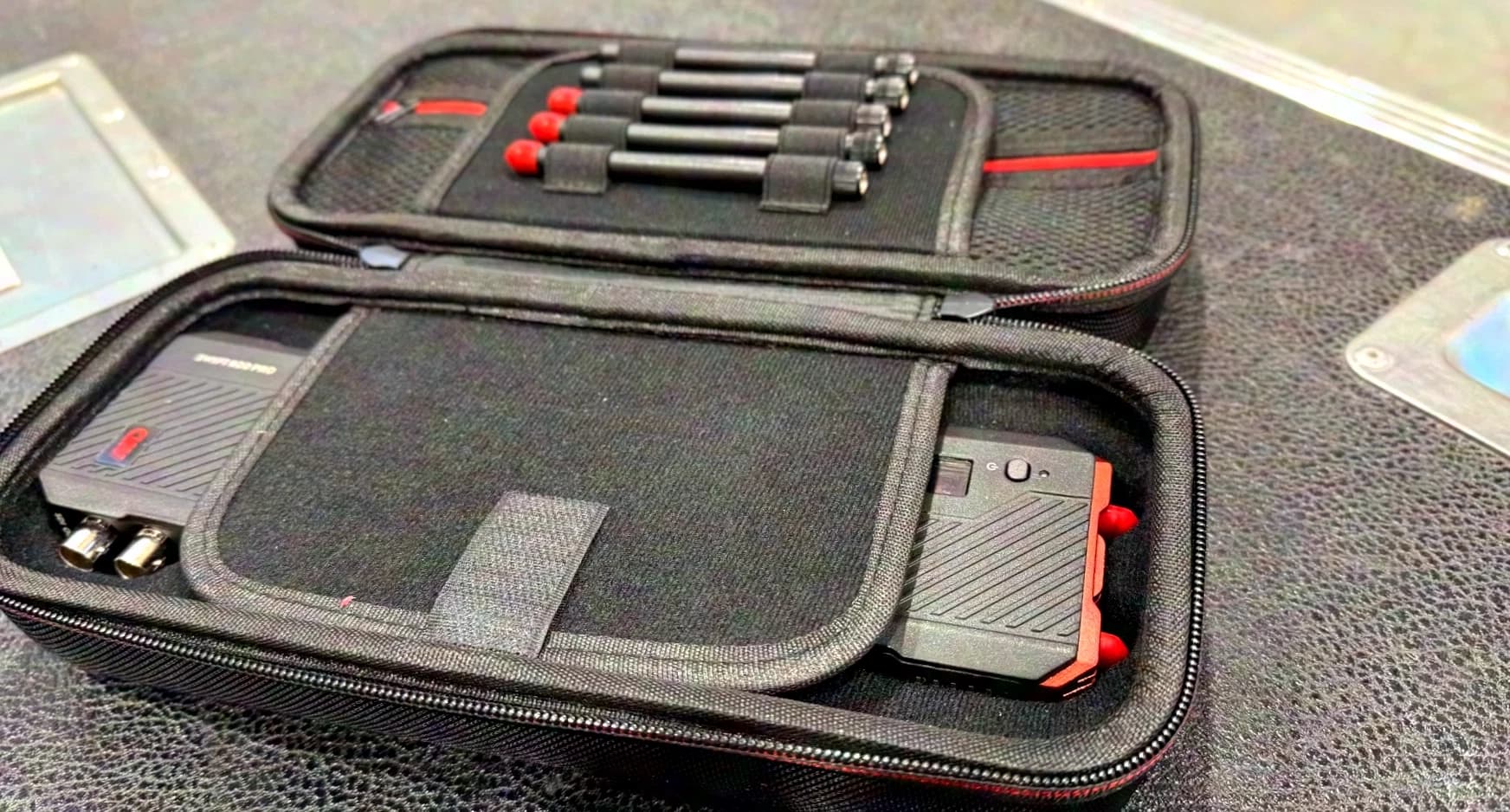

The wireless video set was used only twice and is being sold because it is no longer needed. The scope of delivery includes: - 1x carrying case - 1x transmitter with NP-F battery mount - 1x receiver with NP-F battery mount - 1x power supply - 5x antenna, including 1x spare antenna - 1x hot shoe adapter Technical data: The transmission range is up to 250 m. With a transmission delay of less than 70 ms, the system is also suitable for applications where low latency is important. It supports Full-HD video signals and transmission bit rates of up to 25 Mbps. The transmitter has an SDI input, an SDI loop-out and an HDMI input. The receiver provides two SDI outputs and one HDMI output. A monitoring app for mobile devices is available for mobile image monitoring. For power supply, DC, a SONY-NP-F battery mount or the included power supply can be used. The integrated fans can be switched on and off at the push of a button. Due to its compact design, low weight and solid workmanship, the set is well suited for mobile use. Video input: 1080p (60 / 59.94 / 50 / 30 / 29,97 / 25 / 24 / 23,98 fps) 1080i (60 / 59.94 / 50 fps) 720p (60 / 59.94 / 50 fps) Receiver connections: - 2x SDI Out (3G-SDI) - HDMI Out - Micro-USB - DC In 7–36 V - NP-F battery mount - 2x antennas Transmitter connections: - SDI In - SDI Loop Out - HDMI In - Micro-USB - DC In 7–36 V - NP-F battery mount - 2x antennas Other specifications: - Transmitter power consumption: < 7,2 W - Receiver power consumption: < 6 W - Antenna mode: 2T2R with external antenna - Operating frequency: 5,1–5,8 GHz - Transmission delay: 70 ms in point-to-point mode, 170–220 ms in RTSP mode - Buttons: 1. Power, 2. CH, 3. Mode - Transmission distance: up to 250 m - Operating temperature: -10 °C to 45 °C - Storage temperature: -40 °C to 80 °C - Dimensions (W x D x H): 115 x 70 x 21 mm - Weight per device: 0,220 kg An invoice including VAT will be issued. The sale is exclusively to commercial customers, excluding returns and warranty. Shipping is possible at an additional cost. Pickup and inspection can be arranged in 73101 Aichelberg.
