Description

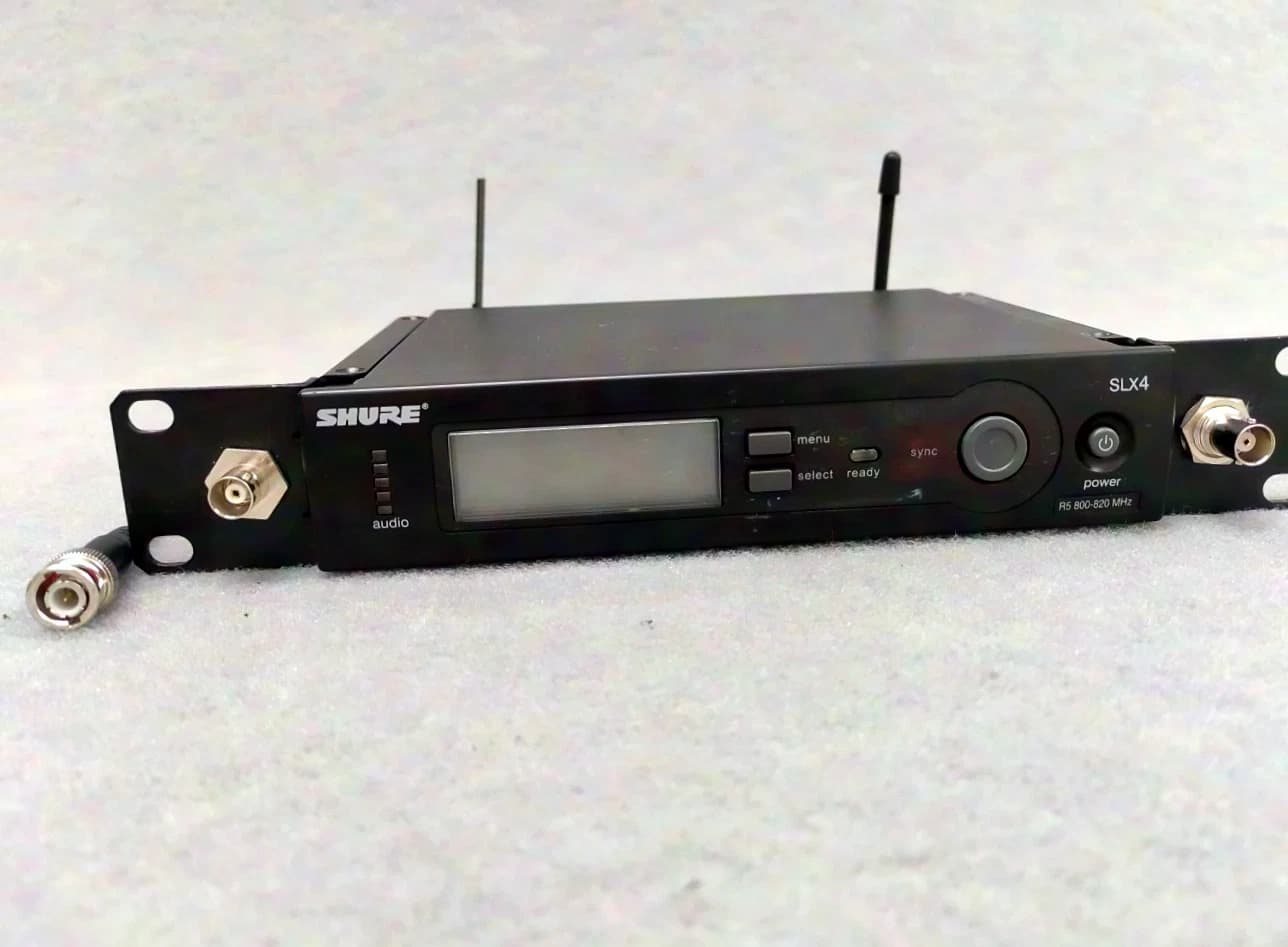

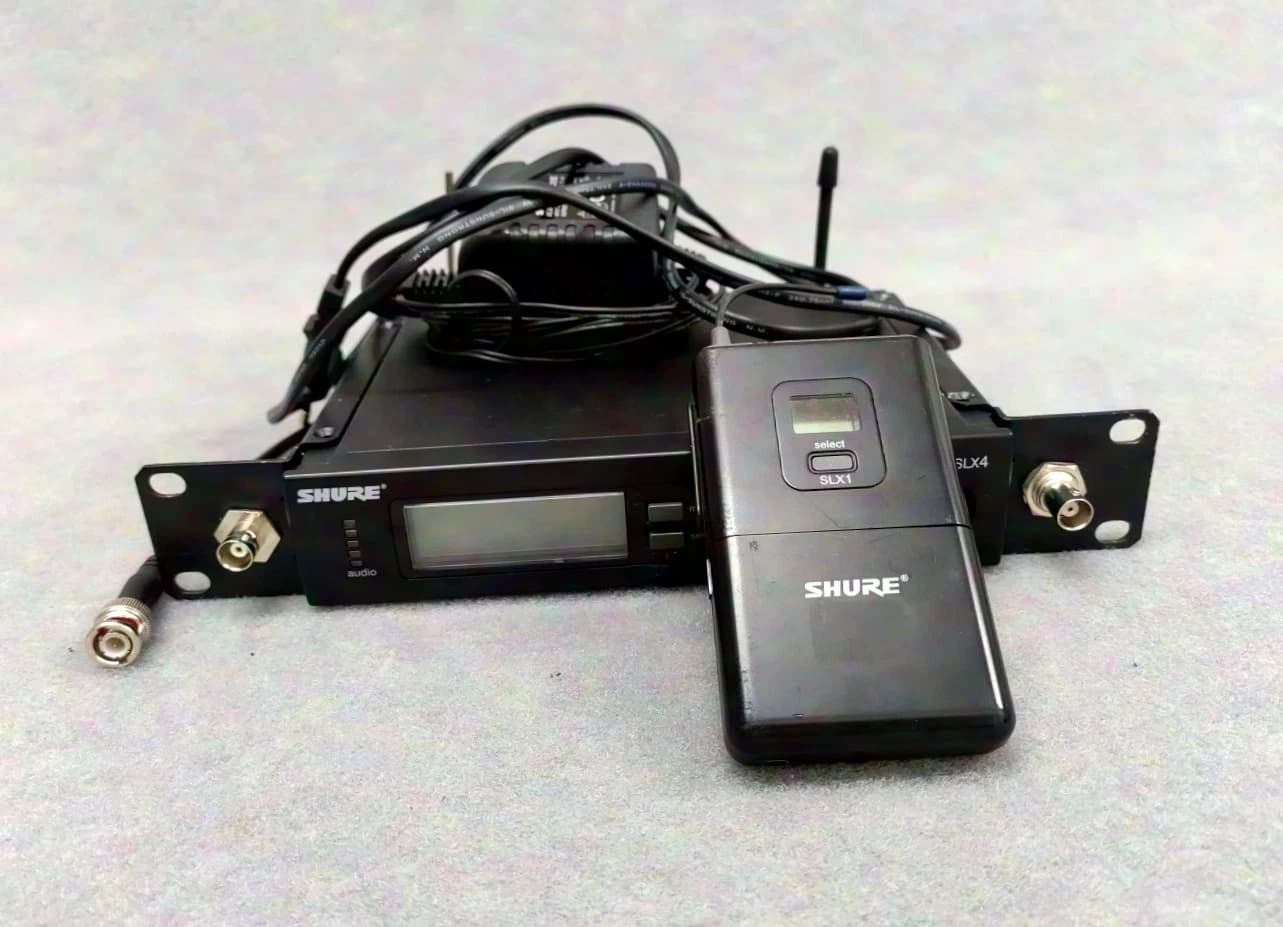

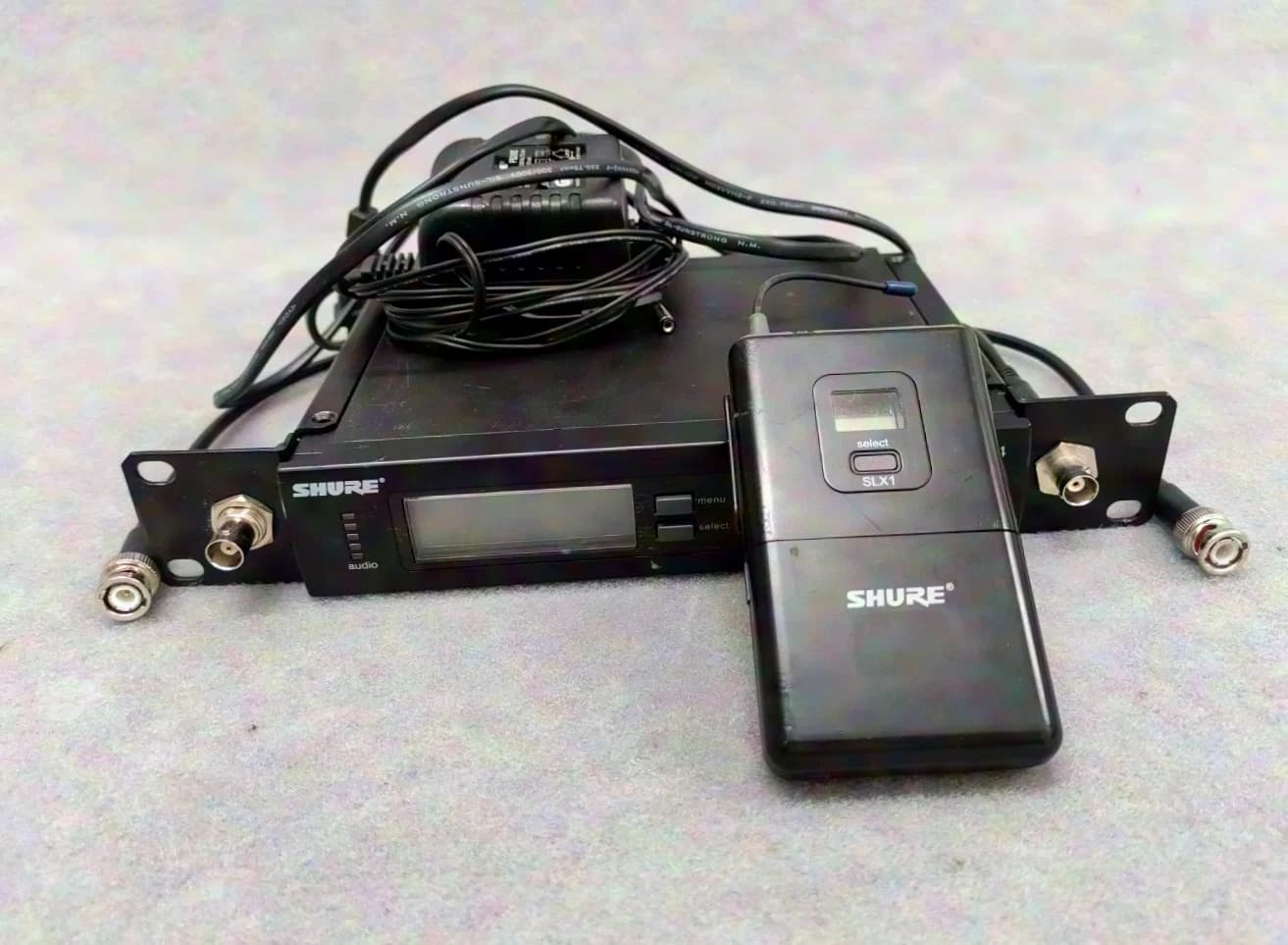

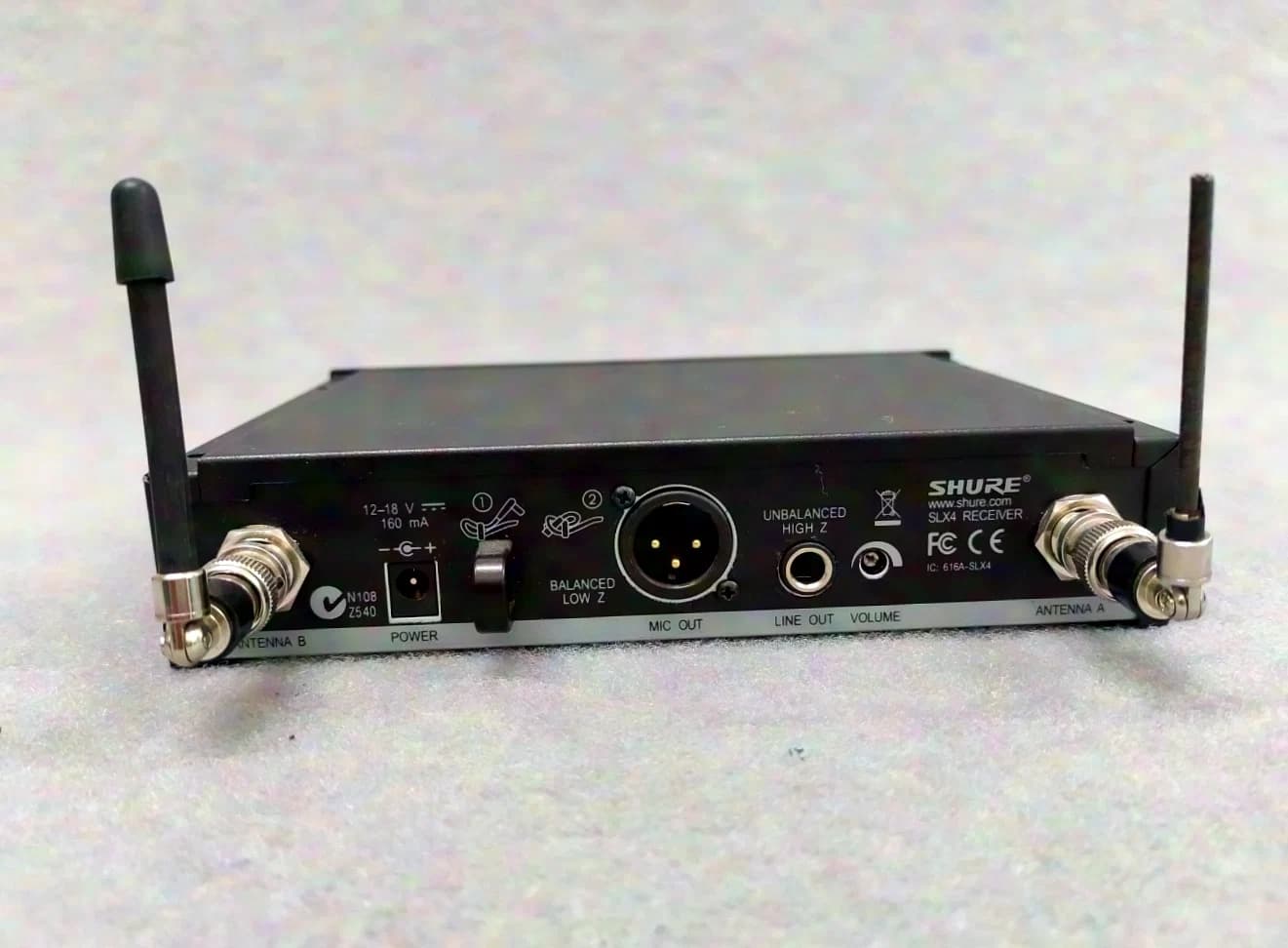

For sale are two Shure SLX4 sets with a reception range of 800–820 MHz (R5). Features: - Automatic frequency selection - Automatic frequency synchronization - Shure Audio Reference Companding - Robust metal housing - Rack-mounting hardware included - Detachable ¼-lambda antennas - Cables for front-mounting the antennas included - Jack and XLR outputs - Lock function for frequency selection and the on/off switch - Volume control on the rear - Backlit multifunction LC display - LED indicator for the high-frequency signal - LED chain for displaying the audio level - 24 MHz bandwidth with 960 selectable frequencies per frequency band, depending on the respective frequency version - Freely selectable frequencies in 25-kHz increments - SLX4L receiver variant with selectable logic function Technical specifications: - Professional UHF diversity receiver for wireless audio transmission including 32.768 kHz pilot tone - The SLX4L version provides logic signals for muting and low battery status at the rear Euroblock connector - Metal construction - Transmission range: 45 Hz to 15 kHz (±2 dB) - Dynamic range: >100 dB (A) - Total harmonic distortion at ±38 kHz deviation and 1 kHz modulation: <0.5% (typical) - Audio output level at ±38 kHz deviation and 1 kHz: XLR -13 dBV, jack -2 dBV - Output impedance: XLR 200 Ohm, jack 1 kOhm - Image rejection: >70 dB (typical) - Carrier frequency range: 518–865 MHz; which frequencies are available depends on national regulations - RF sensitivity: -105 dBm for 12 dB SINAD (typical) - Dimensions (H × W × D): 42 × 197 × 134 mm - Weight: 816 g - Power supply: 12–18 V DC, 150 mA; an external power supply is included The device is very well maintained and is in perfect condition. The sale is exclusively to commercial buyers, excluding any warranty. A proper invoice will be issued. Collection in Aachen or shipping at an additional charge possible. Internal number: 120.01

Specifications
