Description

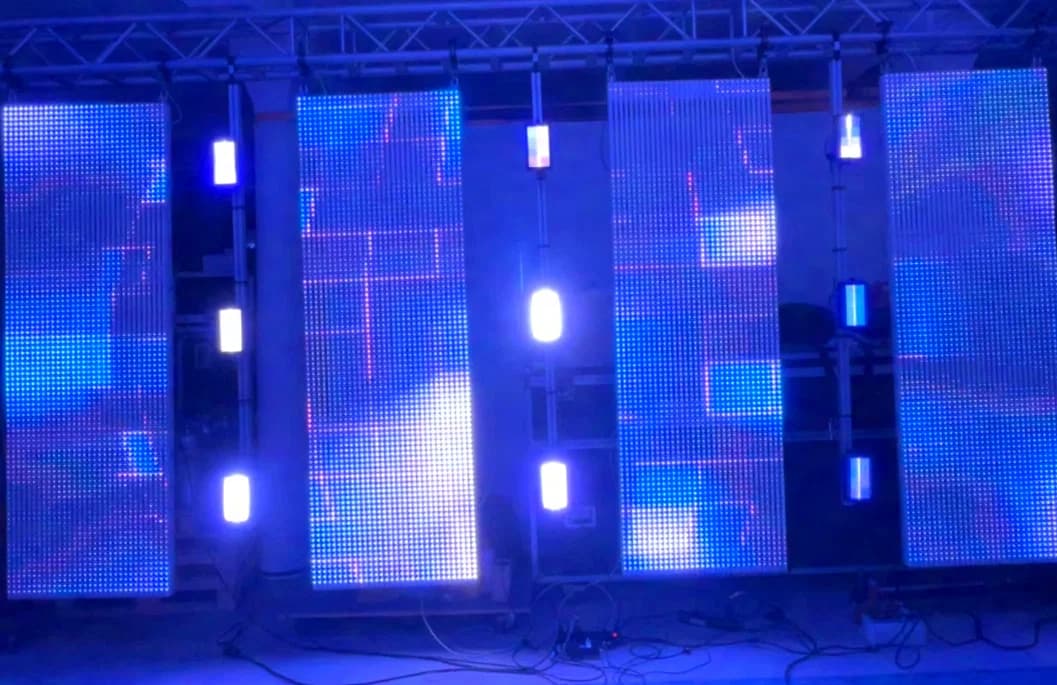

We are selling our white creative LED modules. The individual tiles have a pixel pitch of 25 mm and provide 32 × 32 SMD pixels per module. One element measures 80 × 80 cm, weighs approximately 16 kg and is semi-transparent, making it very suitable for backlighting the surface. The connection is via Powercon blue/grey and Ethercon. The video wall was controlled via a LINSN X102. This video processor allows the input signal to be optimally adapted to the dimensions of the wall. The X102 is included. As a stage backdrop, the LED mesh wall is particularly versatile. We have played complete background videos on it and also used it for video effects. Initially, it was used with VDJ including music videos and shader plugins, and later with Resolume. However, the video wall is not designed for high-resolution public viewing. The inventory includes 20 modules, packed in five 4-module cases from Amptown with an integrated accessories compartment. Of these, 16 elements are V2 and 4 are V1. The versions do not differ visually and come from the same batch. The difference concerns only the mechanics: On V1, the mounts are somewhat more robust. Therefore, the variants cannot be combined with one another arbitrarily. V2 can be mounted below V1; the reverse does not work. Specifically, there are four elements that can sensibly be used either below one another or entirely in the upper area. Apart from this, there are no restrictions, as every configuration includes an “upper” position. This information is provided merely for completeness. A few modules previously had intermittent contacts on the network patch cables under the cover, as these had slipped slightly out of the sockets. The affected cables were replaced with new ones. In addition, a few isolated pixel errors are present. Suitable spare parts such as LED strips, power supplies and other components are available. With some care, the system can be restored to full working order. In addition, some shaders and mask strips were reprinted. The file required for the 3D printer can be provided on request. The scope of delivery includes the 20 modules, 1x sender card without housing and power supply, 1x video processor, spare parts, 5 cases and numerous cables (Ethercon and Powercon). In addition, 10 self-built feet are included. These can easily be used to set up two modules; with some ballast, three elements can also be set up. Suspended mounting is also readily possible. This is used equipment with corresponding signs of use. From the front, however, the modules are in good condition and can be used well. VAT can be shown separately. Shipping by freight carrier can be arranged. If you are interested, we will be happy to answer questions by telephone. In principle, the wall can be tested on site. However, due to the spatial conditions, it is only possible to assemble a few modules at a time. We are selling the LED wall exclusively because we lack the space required for it.
