Description

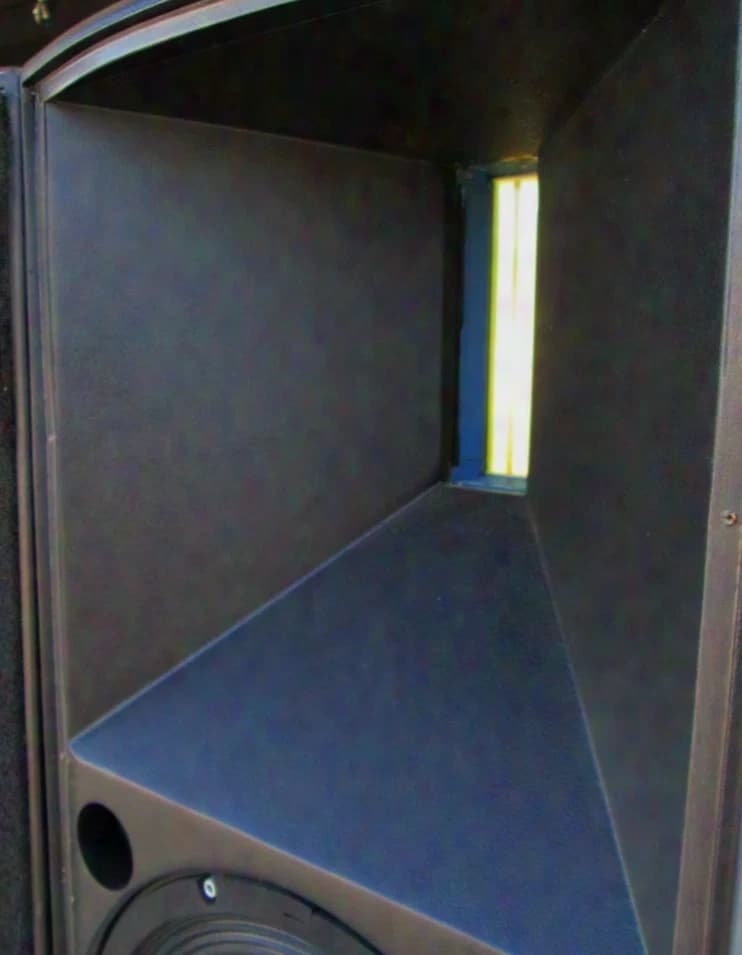

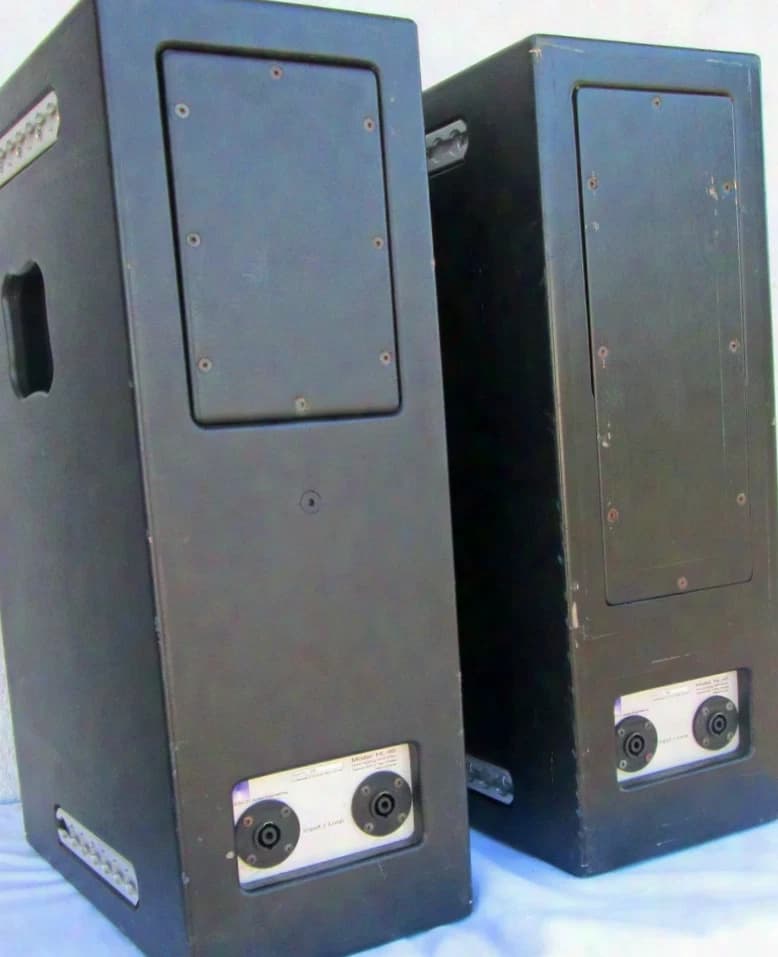

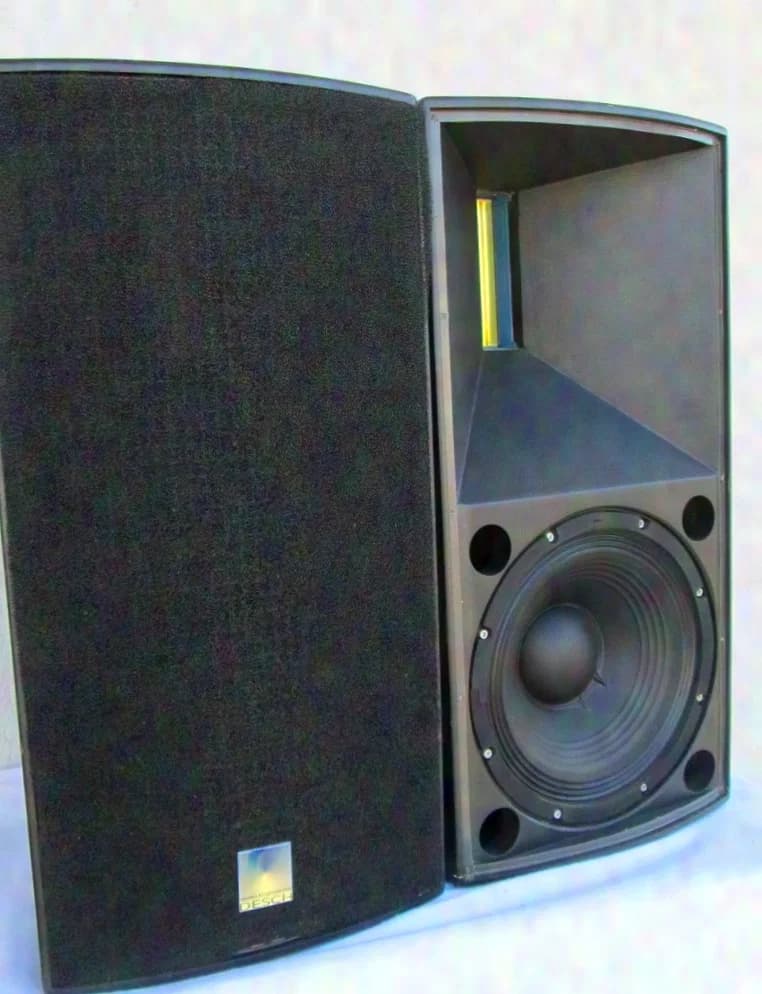

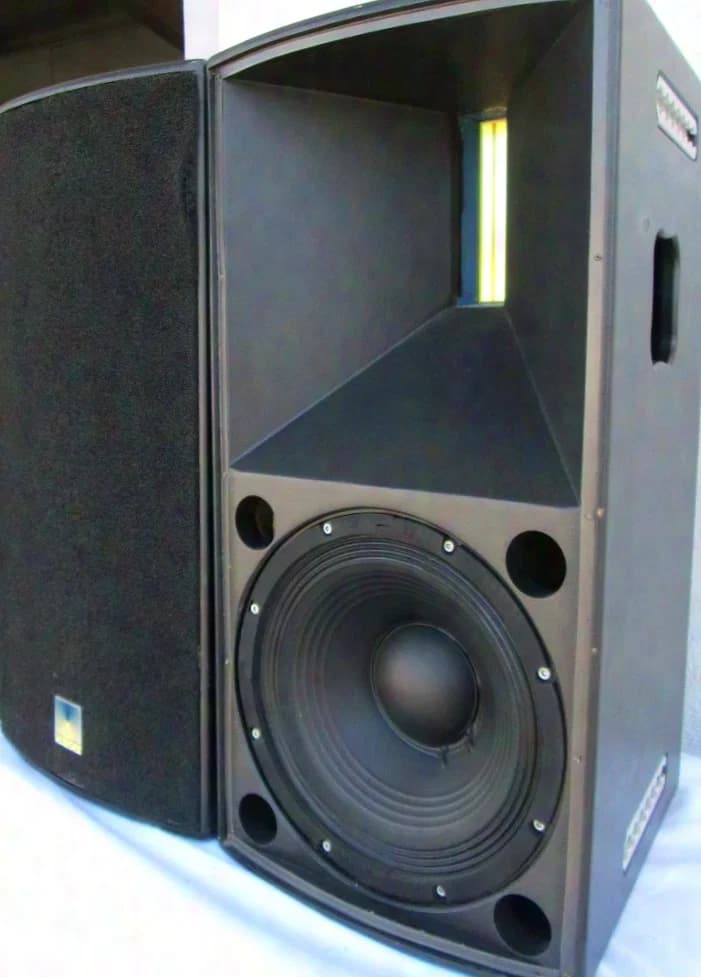

2-way active compact loudspeaker with 12" LF woofer and 6" SA ribbon compact driver. The asymmetrical wooden horn provides a horizontal dispersion angle of 90° as well as vertical coverage of 5° upwards and 45° downwards. The power rating is 600 watts at 8 Ohm. Two Speakon-NL-4MPR connectors are available for signal connection. Four ANCRA rigging rails are integrated on the sides. In addition, the enclosure features four threaded plates – two each on the top and bottom – for mounting a swivel bracket. A recessed stand-mount flange is located on the underside. Dimensions: L 32 x D 42 x H 70 cm Weight: 37 kg The loudspeakers are supplied in pairs in a professional flight case. The ribbon high-frequency section used delivers an especially finely resolved and distinctive sound character that clearly differs from conventional compression drivers. --- 2-way bi-amp compact system equipped with a 12" LF driver and a 6" SA ribbon compact driver. Its asymmetrical wooden horn provides 90° horizontal coverage, with a vertical dispersion of 5° upwards and 45° downwards. The system is rated at 600 watts / 8 ohms. Two Speakon NL-4MPR connectors are provided for cabling. Four ANCRA rigging rails are mounted on the sides, while four threaded plates – two on the top and two underneath – allow installation of an LS yoke. A recessed stand-mount adapter is integrated into the bottom of the enclosure. Dimensions: L 32 x D 42 x H 70 cm Weight: 37 kg The units are supplied in pairs inside a professional flight case. The ribbon high-frequency section delivers an exceptionally clear and enjoyable sound character that conventional compression drivers cannot reproduce in the same way.

Specifications
