Description

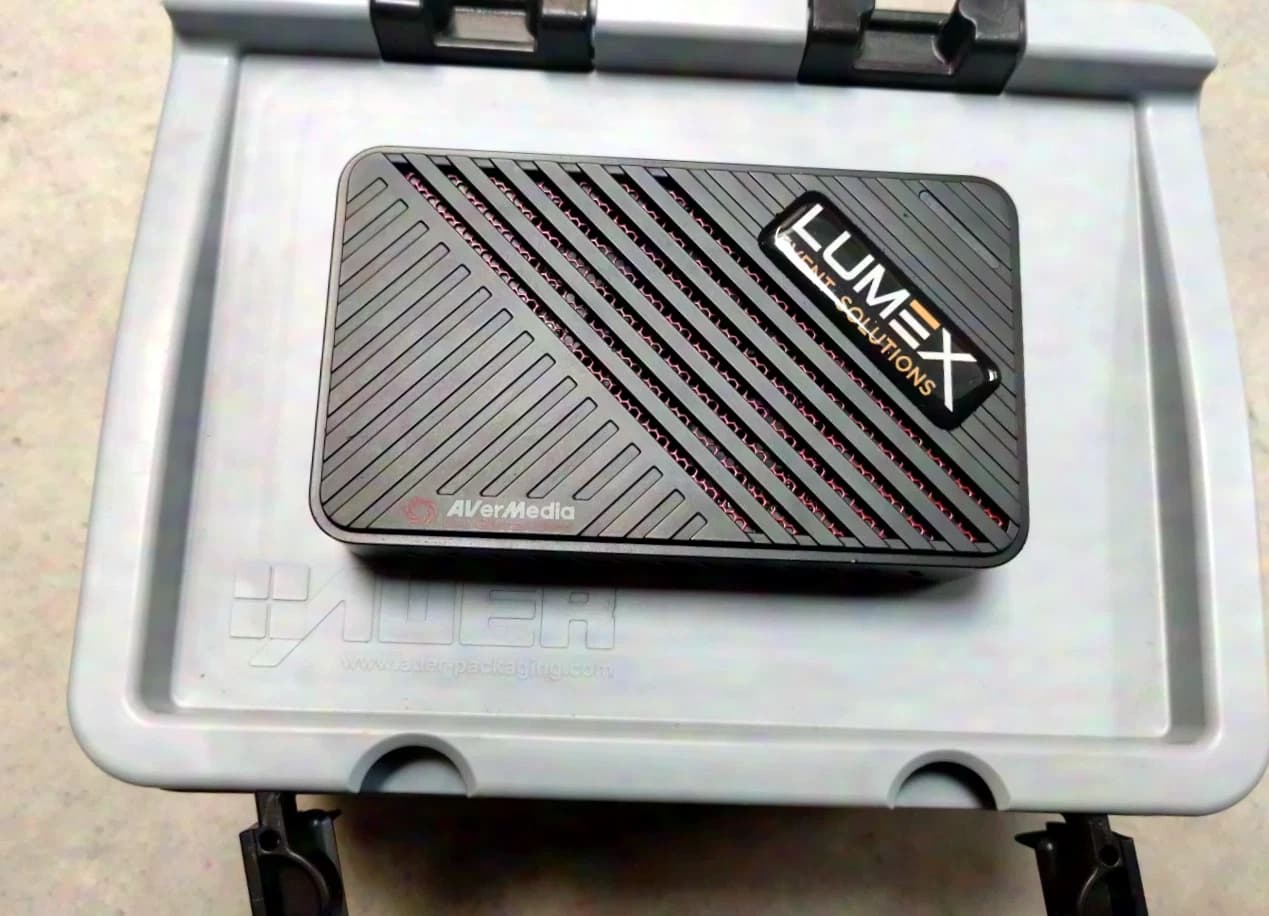

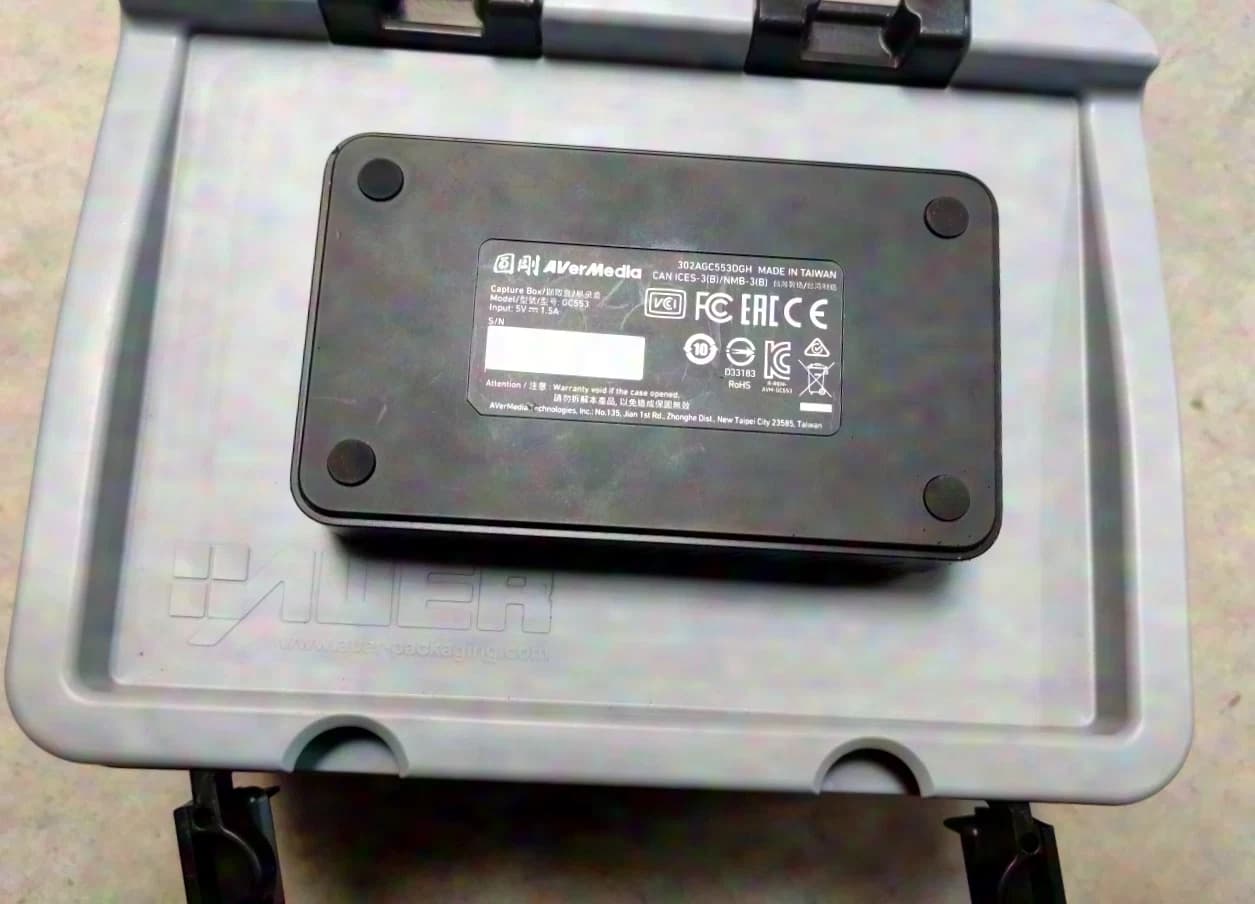

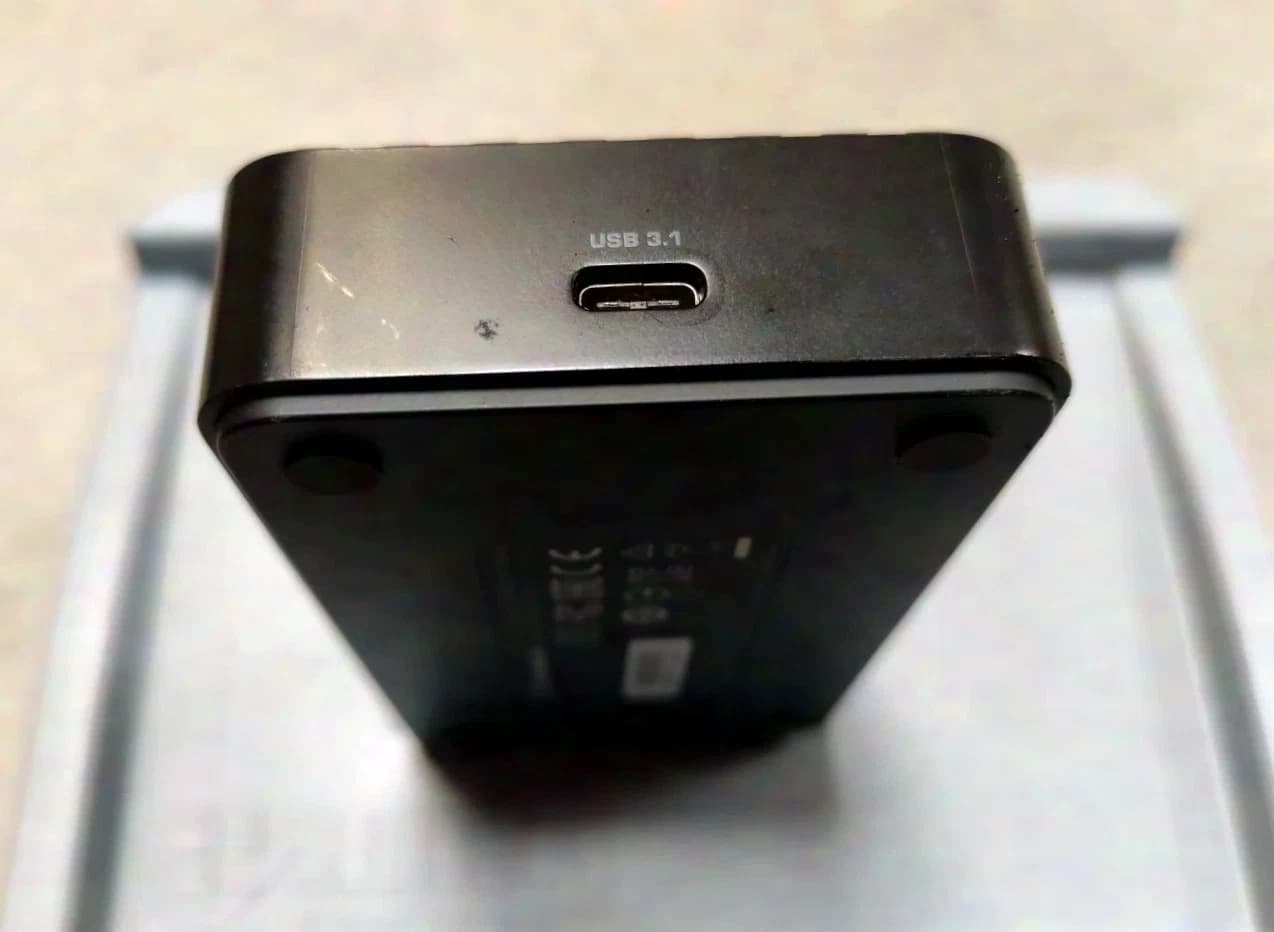

For sale is a compact video capture box for recording and forwarding video and audio signals. Thanks to 4K recording and Pass-Through, the full 4K-HDR experience can be used. In addition, the device also processes Full-HD signals with high refresh rates of up to 240 Hz. *The case is not included.* Technical specifications: • Device type: Adapter for video capture • Interface type: USB-C 3.1 • Width: 11,26 cm • Depth: 6,62 cm • Height: 2,6 cm • Weight: 116 g • Connections: HDMI input and HDMI output • Supported video modes: 480p, 1080i, 1080p, 576p, 2160/30p, 2160p, 2160/60p, 1440/60p, 1440/144p, 1440p, 1080/240p, 1080/120p • Digital video formats: MPEG-4, H.265+, H.264+ • Recording speed: up to 240 frames per second • Supported resolutions for digital video recording: 1280 x 720, 720 x 480, 640 x 480, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 1280 x 800, 1440 x 900, 2160 x 1080 • Audio input: Standard • Special feature: 4Kp60 Pass-Through • Interfaces: 1 x Audio/Video – HDMI input – 19-pin HDMI Type A ¦ 1 x Audio/Video – HDMI output – 19-pin HDMI Type A • Connection: USB-C • Required operating system: Windows 10 The sale is exclusively to commercial buyers, excluding any warranty. A proper invoice will be issued. Collection in Aachen is possible. Alternatively, shipping can be arranged for an additional charge. Internal number: 217.01
