Description

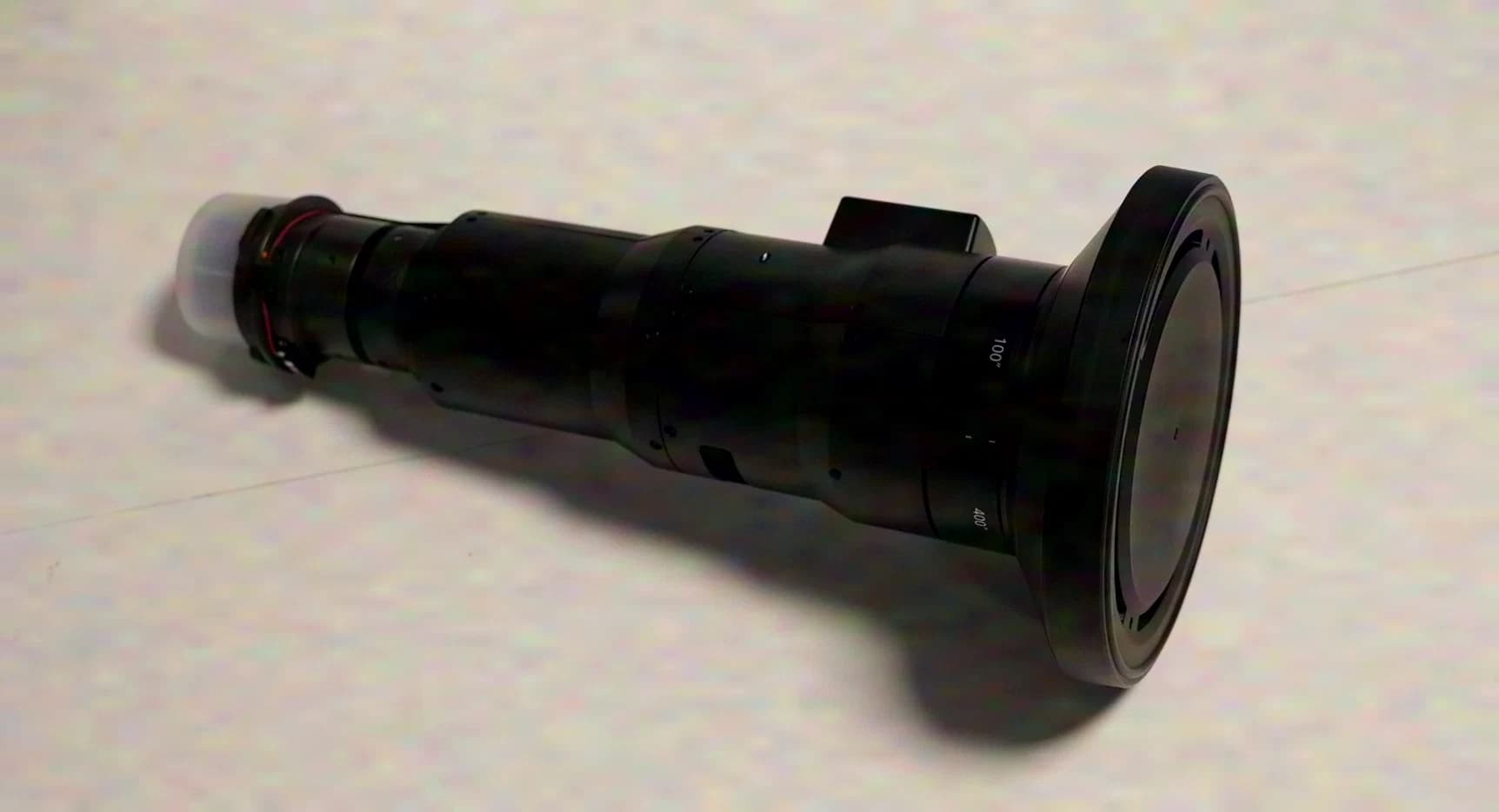

Conventional ultra-short-throw lenses require precise, time-intensive positioning during projector installation, leaving virtually no room for adjustment errors. Thanks to its optical zoom, this lens offers an installation tolerance of ±45 mm (±1.77˝), while allowing straightforward image alignment with a throw ratio ranging from 0.280:1. Image offset is completely eliminated. When paired with compatible Panasonic laser projectors*1, the lens enables a wide vertical and horizontal lens-shift range. Compared with similar lenses, the movable shift area is more than twice as large, providing greater flexibility during installation and helping to speed up setup. I0042165 - F value: 2.0 - Focal distance (f): 4.1–4.4 mm (5/32–11/64 inches) - Throw ratio: - 0.280–0.299:1 for PT-RCQ10/RCQ80/RZ990/RZ890/RZ790/RZ690/RZ120/RZ970/RZ870/RZ770/RZ660 (16:10 aspect ratio) - 0.294–0.314:1 for PT-RW930/RW730/RW620 (16:10 aspect ratio) - 0.290–0.309:1 for PT-RX110 (4:3 aspect ratio) - Dimensions (W × H × D): 170 × 170 × 391 mm (6-11/16 × 6-11/16 × 15-13/32 inches) - Weight: approximately 3.2 kg* (7.05 lbs*) - Applicable projectors: PT-RCQ10/RCQ80/RZ990/RZ890/RZ790/RZ690/RZ120/RZ970/RW930/RX110/RZ870/RZ770/RW730/RZ660/RW620
