Description

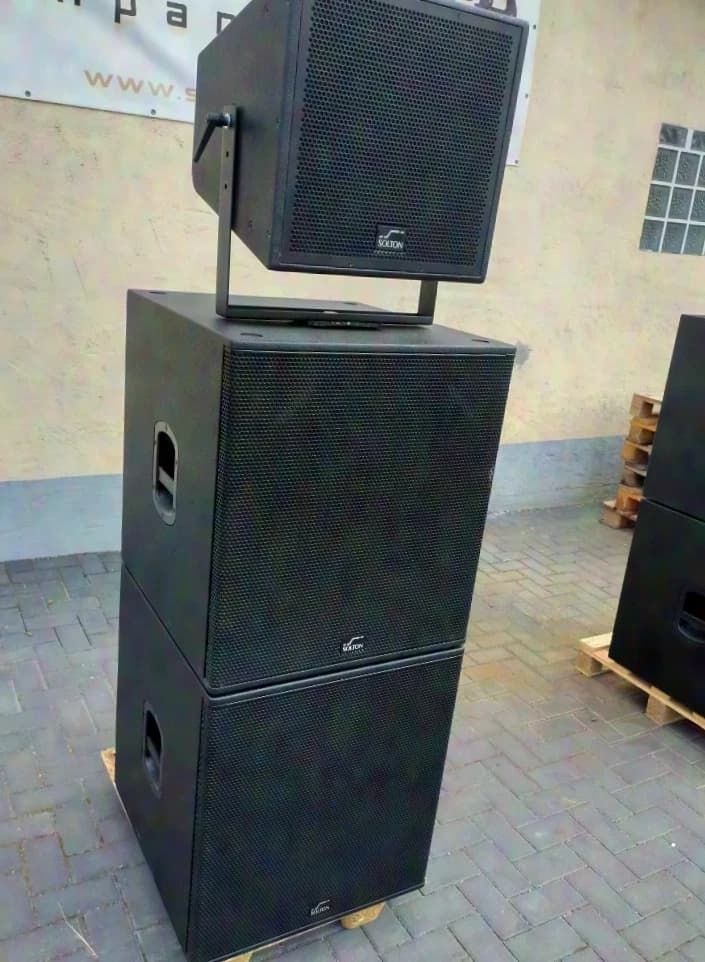

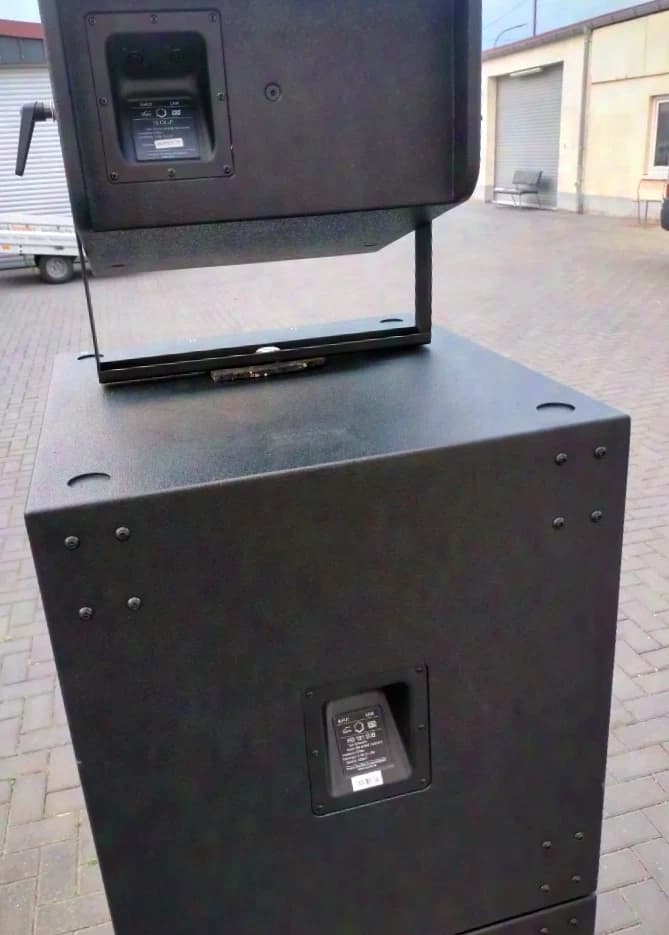

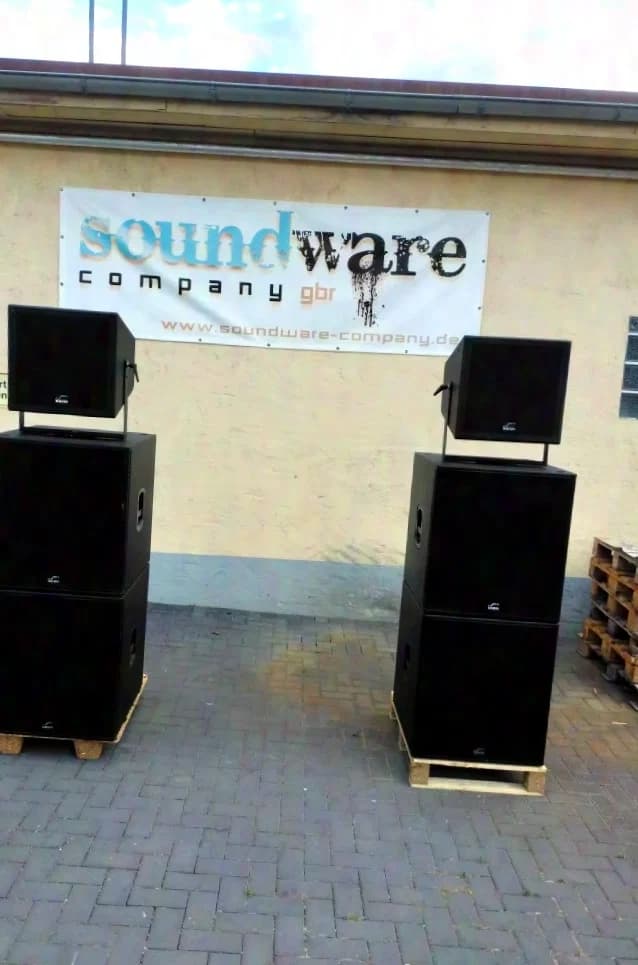

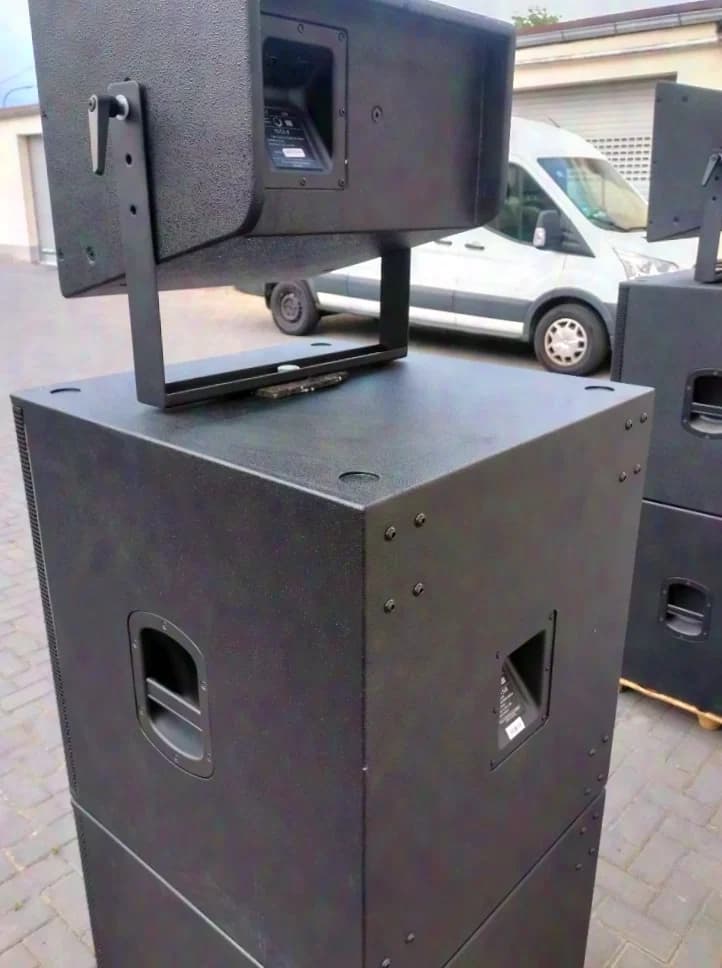

For sale is a complete PA system with two 15-inch tops and four 18-inch subwoofers. The set is new and is offered as shown in the picture. The tops are powerful coaxial 2-way loudspeakers with horn and weather-protected design. Each top is rated for a continuous power of 800 W. The system is complemented by four matching bass-reflex subwoofers, each with 800 W Continuous power. VAT can be shown separately. Shipping can be arranged on request. The set consists of: - 2x 15 CX-F tops - 4x HD181 subwoofers - 2x brackets Technical data Top: Loudspeaker type: 15", 2-way, coaxial with horn, weather-protected Frequency range (-10 dB): 60 Hz – 20 kHz Frequency response (± 3 dB): 65 Hz – 18 kHz Dispersion: horizontal 90° x vertical 70° nominal Power handling: 800 W Continuous, 3200 W Peak System sensitivity (1 W/1 m): 101 dB Maximum sound pressure level (calculated at 1 m): 130 dB Continuous, 136 dB Peak High-frequency driver: 2.5" voice coil, 1.4" exit compression driver Low-frequency driver: 15", 3" voice coil, weather-protected loudspeaker Nominal impedance: 8 Ohm Crossover frequency: 1.1 kHz Protection circuit: PTC driver protection Enclosure: 15 mm birch plywood Finish: Black, two-layer weather-resistant fiberglass coating, IP54 Mounting points: 9x M8, 2x M10, U-bracket included Protective grille: Galvanized and powder-coated perforated metal with water-repellent fabric Connectors: 2x NL4, 1+/1- input, 2+/2- to subwoofer Dimensions (W x H x D): 450 x 450 x 400 mm Weight: 26 kg ________________________________________________________ Technical data Bass: Loudspeaker type: Single 18" bass-reflex subwoofer Frequency range (-10 dB): 33 Hz – 250 Hz Frequency response (± 3 dB): 38 Hz – 140 Hz Power handling: 800 W Continuous, 3200 W Peak System sensitivity (1 W/1 m): 100 dB Maximum sound pressure level (calculated at 1 m): 129 dB Continuous, 135 dB Peak Low-frequency driver: 18" loudspeaker with 4" voice coil Enclosure: 15 mm birch plywood Finish: Black polyurea coating Features: 2x carrying handle, M20 pole flange Protective grille: Black perforated metal with acoustically transparent foam as backing Connectors: 2x NL4, Pins 1+/1- Dimensions (W x H x D): 600 x 660 x 640 mm Weight: 39 kg
