Description

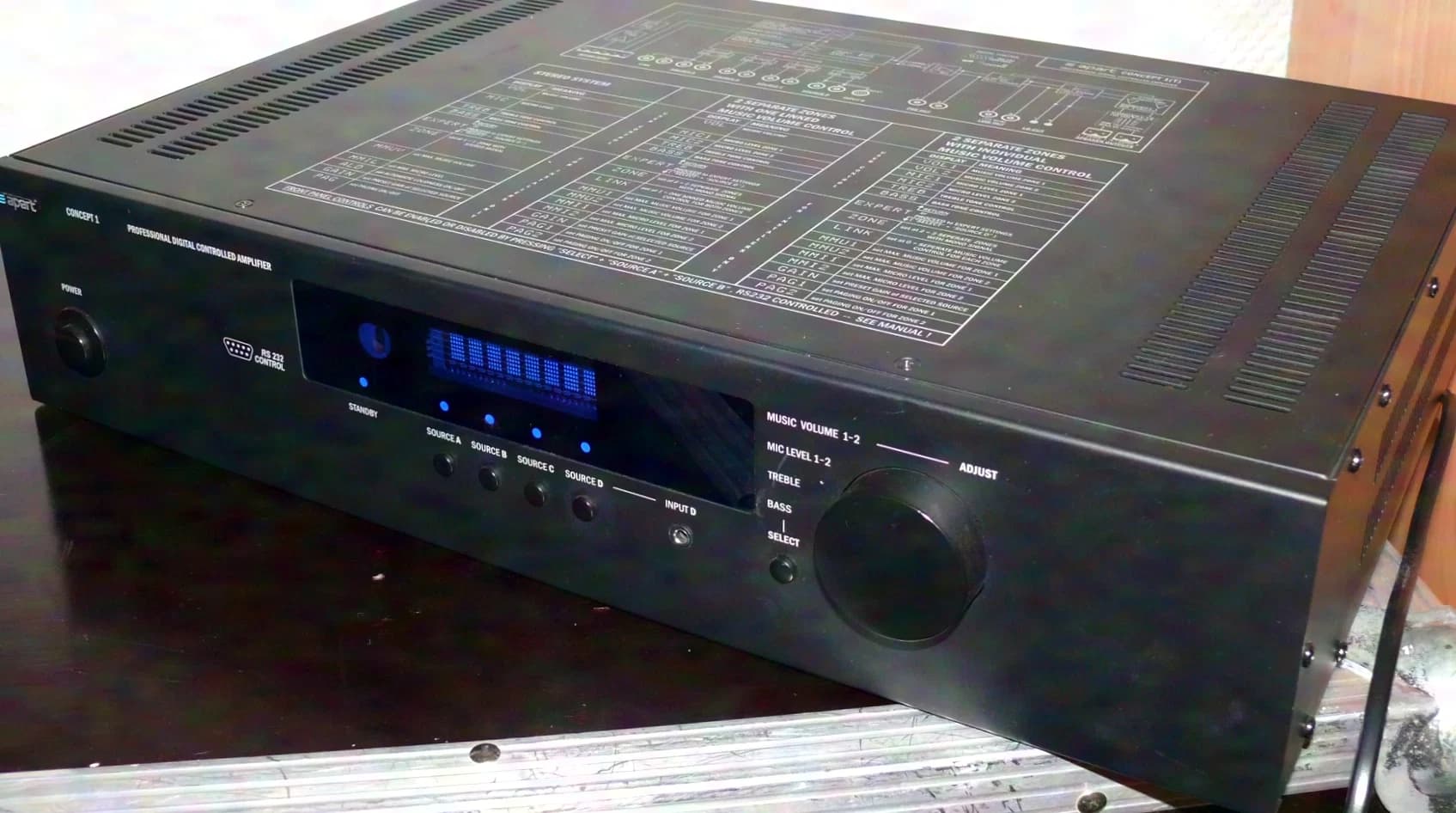

The well-preserved integrated amplifier comes from a fixed installation and is suitable for various sound reinforcement tasks. **Technical data** - Music power: 2 x 50 W at 8 Ohm or 2 x 80 W at 4 Ohm - Dynamic power reserve at 1.7 Ohm per channel: 120 W - Switchable low-pass filter at 75 Hz with 12 dB/octave - Permitted loudspeaker impedance: 4–16 Ohm per channel - Loudspeaker connections via Euroblock - Galvanically isolated RS232 interface as SUB-D9 - Tone control for line signals: bass at 90 Hz, treble at 15 kHz, each ±14 dB - Microphone input: input impedance 1.5 kOhm; input sensitivity 1.5 mV / -56 dBV, maximum 0.4 V / -8 dBV - Microphone tone control: 100 Hz / +3 dB, 10 kHz / -6 dB to 100 Hz / -9 dB, 10 kHz / +4 dB - Operating modes: stereo, two linked zones or two separately adjustable zones - Paging microphone selectable for Zone 1 or Zone 2 - Frequency range: 10 Hz to 40 kHz at -0.5 dB - Protection functions against DC voltage, overheating, overdrive, overload and short circuit - Fanless cooling by convection - Maximum power consumption: 170 W - Mains supply: 230–240 V, 50–60 Hz - Dimensions (W x H x D): 430 x 88 x 320 mm - Weight: 6.6 kg **Equipment and functions** - Designed for standalone operation; control also possible via RS232 or infrared - Output power of 2 x 80 W at 4 Ohm - Digital limiter for protecting and controlling loudspeakers and the overall system - Four stereo line inputs with adjustable gain - The fourth line input is additionally available on the front of the unit as a mini-jack connection, for example for laptops or external playback devices - Separate line output and fixed preamplifier output - One microphone input without phantom power for announcements in one or two zones - Integrated, switchable high-pass filter for combination with a subwoofer - Temperature monitoring with automatic protective shutdown in case of overheating - Three selectable operating modes: One stereo zone, two mono zones with linked volume control or two independently adjustable mono zones - Extensive configuration options for users and installers; access can be restricted if required

Specifications
