Description

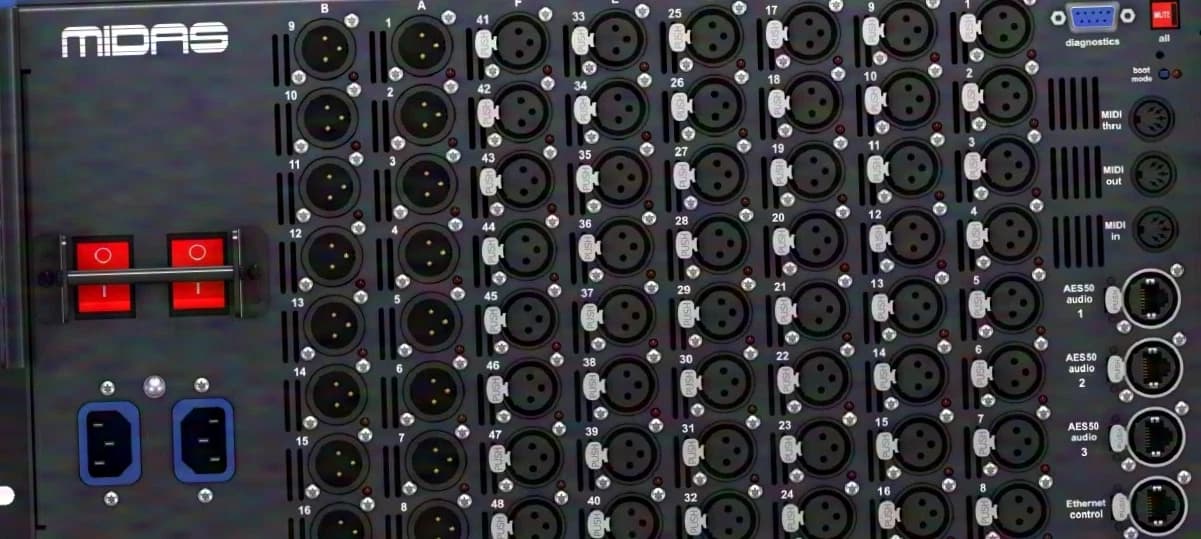

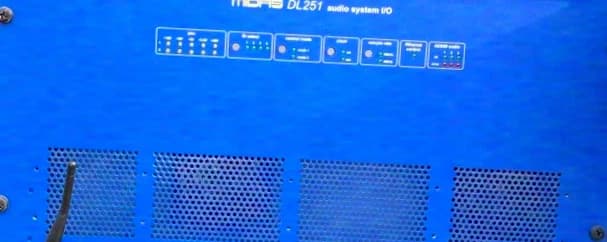

Stagebox from the Pro series in very good condition and fully functional technically. The unit was always kept in a case in the touring setup. Description and features according to the manufacturer: Features: 48 microphone preamps with switchable +48-V phantom power 16 active balanced, low-impedance outputs for line level Switchable sampling rate of 48 kHz or 96 kHz Remote operation via CAT5-/CAT5e cable up to 100 m All settings can be programmed via the controls on the front or via the console LED indicators for the power supply status and configuration switches on the front Three AES50 network connections for redundant connections MIDI input, output and thru Technical specifications: Inputs: 48 x XLR for microphone/line signals Outputs: 16 x XLR for line signals Fail-safe operation: N+1 cable redundancy and dual-redundant power supplies Sampling rate: 48 kHz / 96 kHz Dynamic range: 107 dB at 22 Hz to 22 kHz, without pre-distortion Maximum gain: 45 dB Crosstalk at 1 kHz: -100 dB between physically adjacent input channels Crosstalk at 10 kHz: -90 dB between physically adjacent input channels A/D converters: 24 Bit, 96 kHz, 128x oversampling D/A converters: 24 Bit, 96 kHz, 128x oversampling MIDI connections: In, Out and Thru via 5-pin DIN sockets, for use exclusively with corresponding mixing consoles Digital 48-kHz I/O system connections: 1 x AES50 with 48 bidirectional audio channels via etherCON XLR as system connection / 1 x AES50 with 48 bidirectional audio channels via etherCON XLR with redundant protection as redundant connection Digital 96-kHz I/O system connections: 2 x AES50, each with 24 bidirectional audio channels via etherCON XLR as system connections / 1 x AES50 with 24 bidirectional audio channels via etherCON XLR with redundant protection as N+1 connection Mains supply: 100 to 240 VAC, 50 to 60 Hz Power consumption at 115 V: 85 W, 85 VA via power supply 1 / 110 W, 110 VA via power supply 2 Power consumption at 230 V: 90 W, 100 VA via power supply 1 / 110 W, 135 VA via power supply 2 Permitted operating temperature: +5 °C to +40 °C Storage temperature: -20 °C to +60 °C Dimensions (W x D x H): 483 x 377 x 221 mm / 19", 5 HE Weight: 10 kg

Specifications
